Product name:

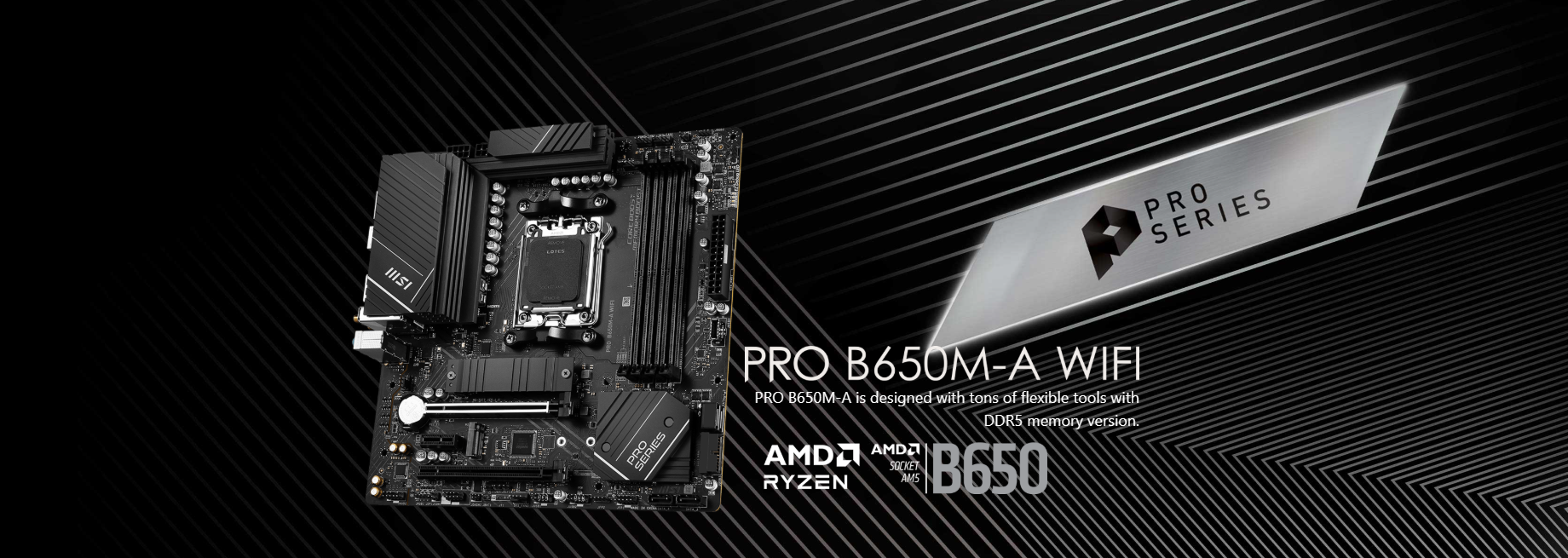

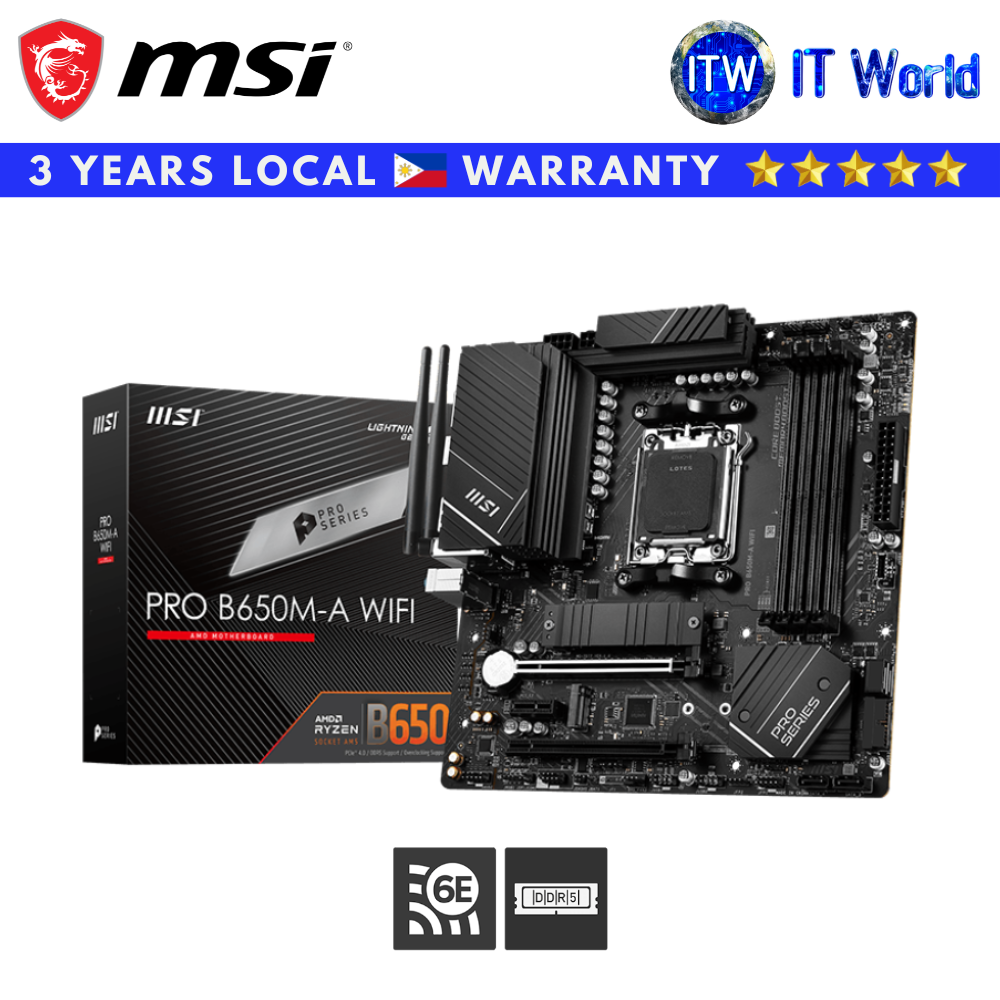

Itw | MSI Motherboard PRO B650M-A WiFi 6E mATX AM5 DDR5 (MSI B650M-A WIFI)
Brand: MSI
Model: PRO B650M-A WIFI
Form Factor: mATX (243.84mm x 243.84mm)
Chipset: AMD B650
CPU Support:
AMD Ryzen™ 9000 / 8000 / 7000 Series
Socket AM5
Memory Support:
4x DDR5 DIMMs, up to 256GB total
OC Support: Up to DDR5 7200+ MHz
Dual Channel, non-ECC, unbuffered
Supports AMD EXPO profiles
Expansion Slots:

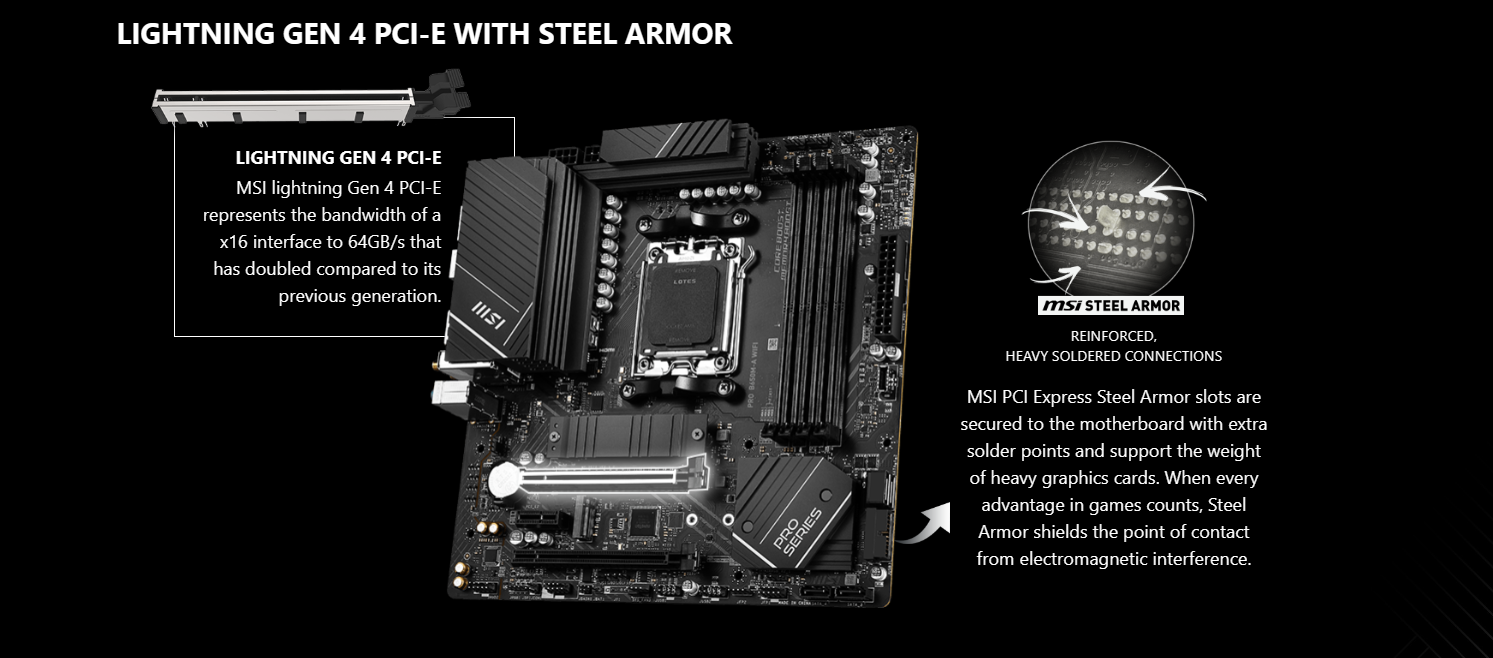

2x PCIe x16 Slots (Supports various lane configurations based on CPU)
1x PCIe x1 Slot
Onboard Graphics Output (with APU):
1x HDMI™ 2.1 – Up to 4K @ 60Hz
1x DisplayPort 1.4 – Up to 4K @ 60Hz

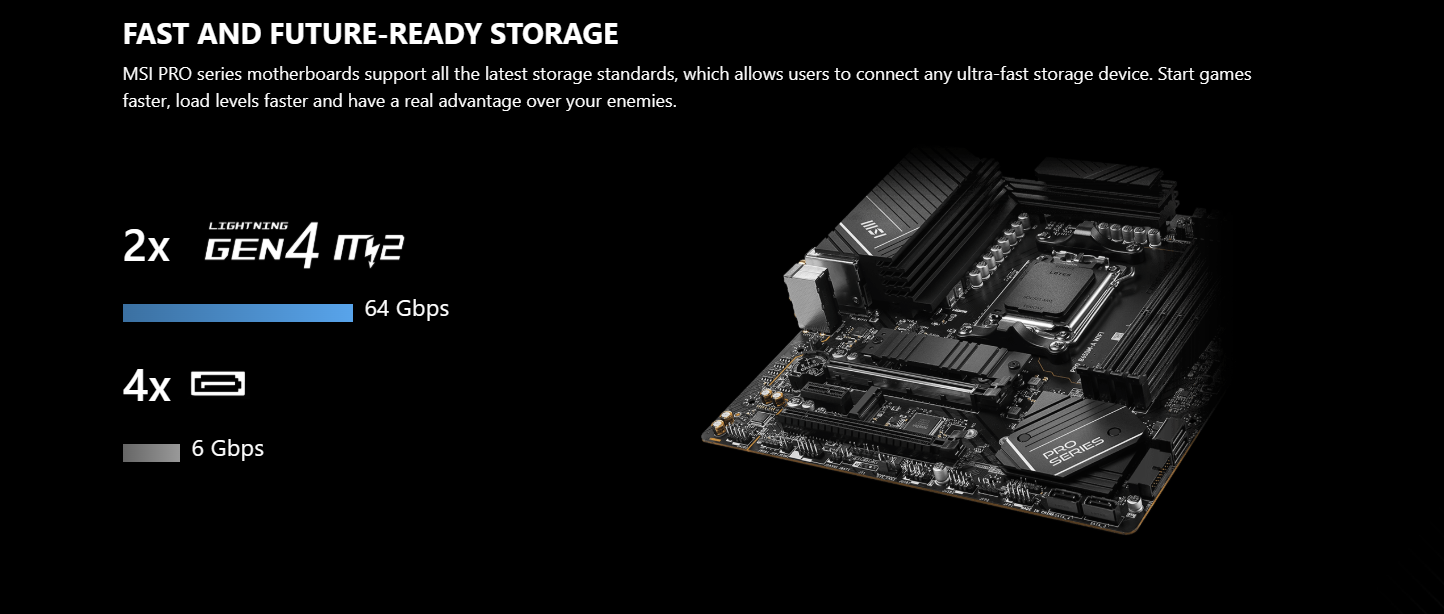

Storage:
2x M.2 PCIe 4.0 x4 (2280/2260 devices)
4x SATA 6Gb/s Ports
RAID Support:
SATA: RAID 0/1/10
M.2 NVMe: RAID 0/1
USB Ports:
Front:
4x USB 2.0
2x USB 5Gbps Type-A

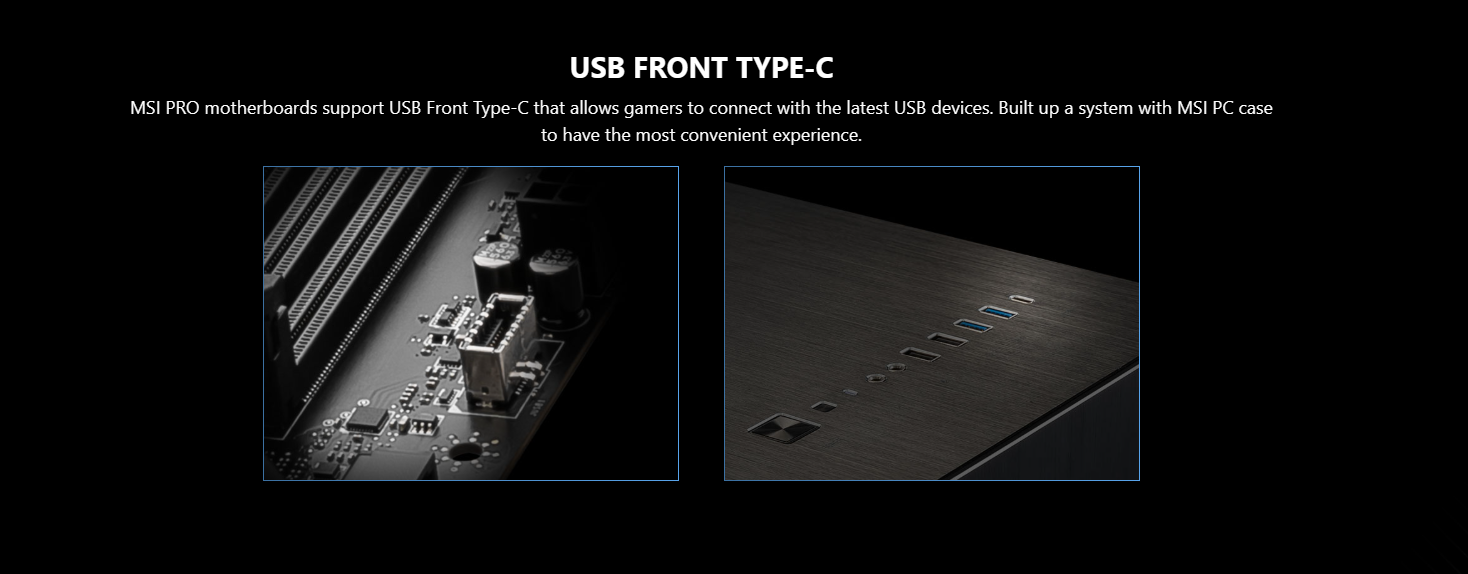

1x USB 10Gbps Type-C
Rear:
4x USB 5Gbps Type-A
4x USB 10Gbps Type-A

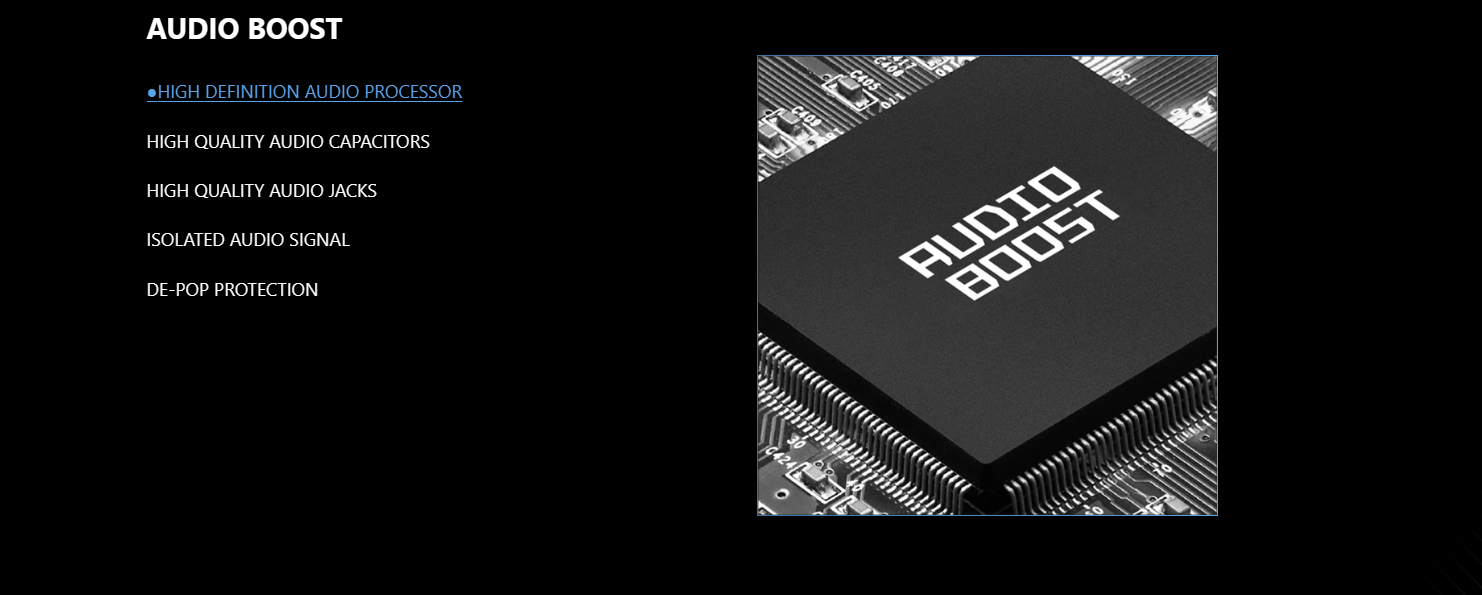

Audio:
Realtek® ALC897 7.1-Channel HD Audio
Networking:
2.5G LAN – Realtek® 8125BG
Wireless LAN:
AMD Wi-Fi 6E (M.2 Key-E pre-installed)
MU-MIMO, 2.4GHz/5GHz/6GHz support
Bluetooth: 5.3
Internal Headers:
1x 24-Pin ATX Power
2x 8-Pin CPU Power
1x CPU Fan, 1x Pump Fan, 3x Sys Fan
2x JARGB_V2, 2x JRGB LED
1x TPM Header (TPM 2.0 supported)
1x Front Panel Audio, 1x COM, 1x JDASH
Back Panel Ports:
1x HDMI™
1x DisplayPort
4x USB 10Gbps Type-A
4x USB 5Gbps Type-A
1x Flash BIOS Button
1x 2.5G LAN Port
Wi-Fi Antenna Ports
Audio Jacks
LED Features:
4x EZ Debug LEDs (for CPU, DRAM, VGA, BOOT troubleshooting)
Operating System Support:
Windows® 10 64-bit
Windows® 11 64-bit

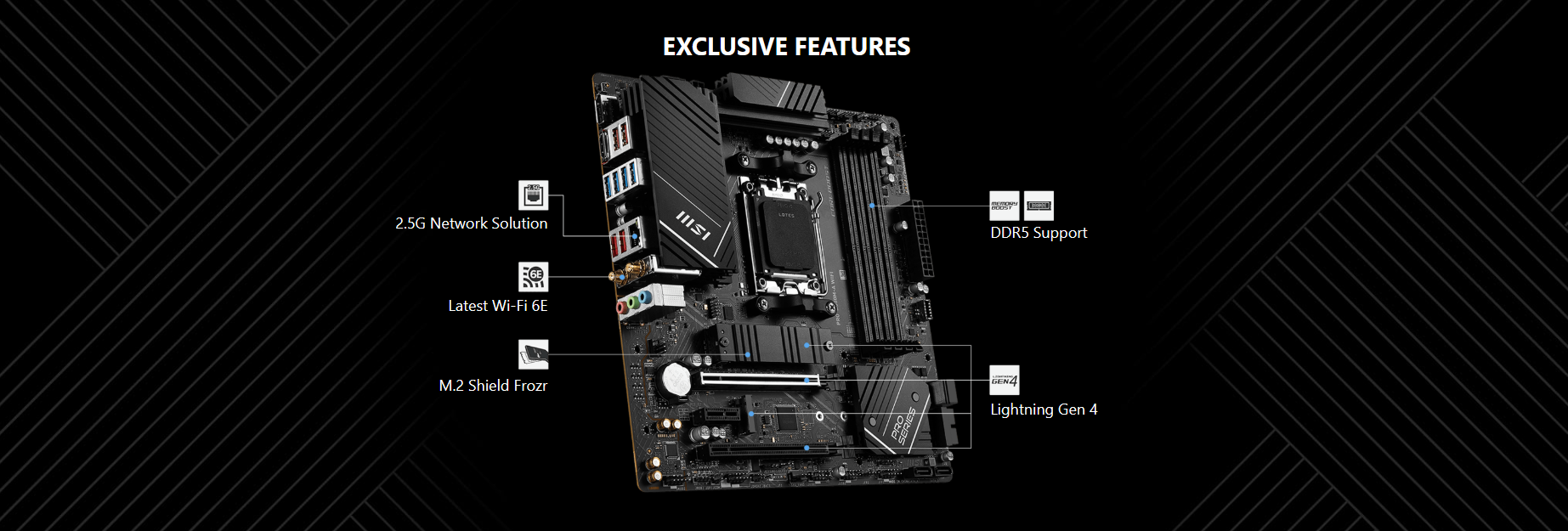

Why Buy?
AM5 ready – supports latest Ryzen 9000/8000/7000 CPUs
DDR5 support up to 7200+ MHz for max performance
Futureproof with PCIe Gen 4, Wi-Fi 6E, and Bluetooth 5.3
Ideal for compact high-performance builds with mATX form factor
