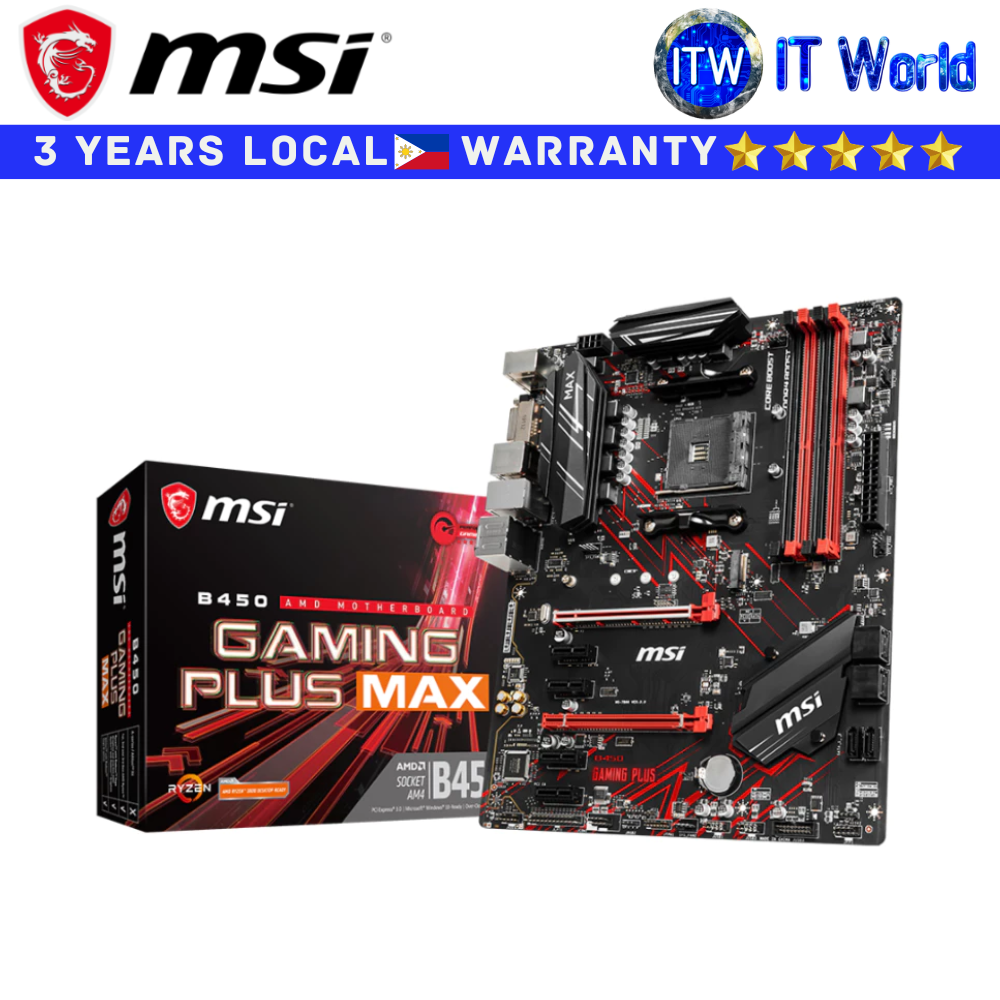

Product Name: Itw | MSI Motherboard B450 Gaming Plus Max ATX AM4 DDR4
KEY FEATURES
Satisfying gamers with what they really need, B450 GAMING PLUS MAX is equipped with Core boost, Turbo M.2, DDR4 Boost, USB 3.2 Gen2 Connector
■ Supports 1st, 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics / Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4
■ Supports DDR4 Memory, up to 4133(OC) MHz
■ Lightning Fast Game experience: TURBO M.2, AMD Turbo USB 3.2 GEN2, StoreMI Technology
■ Core Boost: With premium layout and fully digital power design to support more cores and provide better performance
■ DDR4 Boost: Advanced technology to deliver pure data signals for the best gaming performance and stability
■ Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
■ Flash BIOS Button: Simply use a USB key to flash any BIOS within seconds, without installing a CPU, memory or graphics card
SPECIFICATION
PROCESSOR
✎ Supports 1st, 2nd and 3rd Gen AMD Ryzen™, Ryzen™ with Radeon™ Vega Graphics, 2nd Gen AMD Ryzen™ with Radeon™ Graphics and Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4
CHIPSET
✎ AMD® B450 Chipset
MEMORY
✎ 4 x DDR4 memory slots, support up to 128GB *ComboPI 1.0.0.3-based and above BIOS are required.
■ Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC)
■ For AMD Ryzen Gen3 (R5/R7/R9)
■ Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866/ 4000/4133 MHz (by A-XMP OC MODE)
■ For AMD Other CPU
■ Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466MHz (by A-XMP OC MODE)
✎ Dual channel memory architecture
✎ Supports non-ECC UDIMM memory
✎ Supports ECC UDIMM memory (non-ECC mode)
SLOTS
✎ 1 x PCIe 3.0 x16 slot (PCI_E1)
■ 1st, 2nd and 3rd Gen AMD Ryzen™ support x16 mode
■ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics support x8 mode
■ Athlon™ with Radeon™ Vega Graphics support x4 mode
✎ 1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode)1
✎ 4 x PCIe 2.0 x1 slots1
PCI_E4 will run x1 speed when installing devices in PCI_E2/ PCI_E3/ PCI_E5 slot.
STORAGE
✎ AMD® CPU
■ 2 x SATA 6Gb/s ports1
■ 1 x M.2 slot (Key M)1
■ Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen™, Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) or PCIe 3.0 x2 (Athlon™ with Radeon™ Vega Graphics) and SATA 6Gb/s 2242/ 2260/ 2280/ 22110 storage devices
✎ AMD® B450 Chipset
■ 4 x SATA 6Gb/s ports
*SATA5 and SATA6 ports will be unavailable when installing a M.2 device in M.2 slot.
USB
✎ AMD® B450 Chipset
■ 2 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-A ports on the back panel
■ 2 x USB 3.2 Gen1 (SuperSpeed USB) ports available through the internal USB 3.2 Gen1 connector
■ 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)
✎ AMD® CPU
■ 2 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel
AUDIO
✎ Realtek® ALC892/ALC897 Codec
✎ 7.1-Channel High Definition Audio
LAN
✎ 1 x Realtek® 8111H Gigabit LAN controller
BACK PANEL PORTS
✎ PS/2 Combo Port
✎ USB 3.2 Gen1
✎ LAN Port
✎ HD Audio Connectors
✎ Flash BIOS Button
✎ USB 2.0 Ports
✎ DVI-D Port
✎ HDMI Port
✎ USB 3.2 Gen2
DIMENSIONS
✎ 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
✎ ATX Form Factor
OPERATING SYSTEM
✎ Support for Windows® 10 64-bit
✎ Support for Windows® 7 64-bit
* To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.
