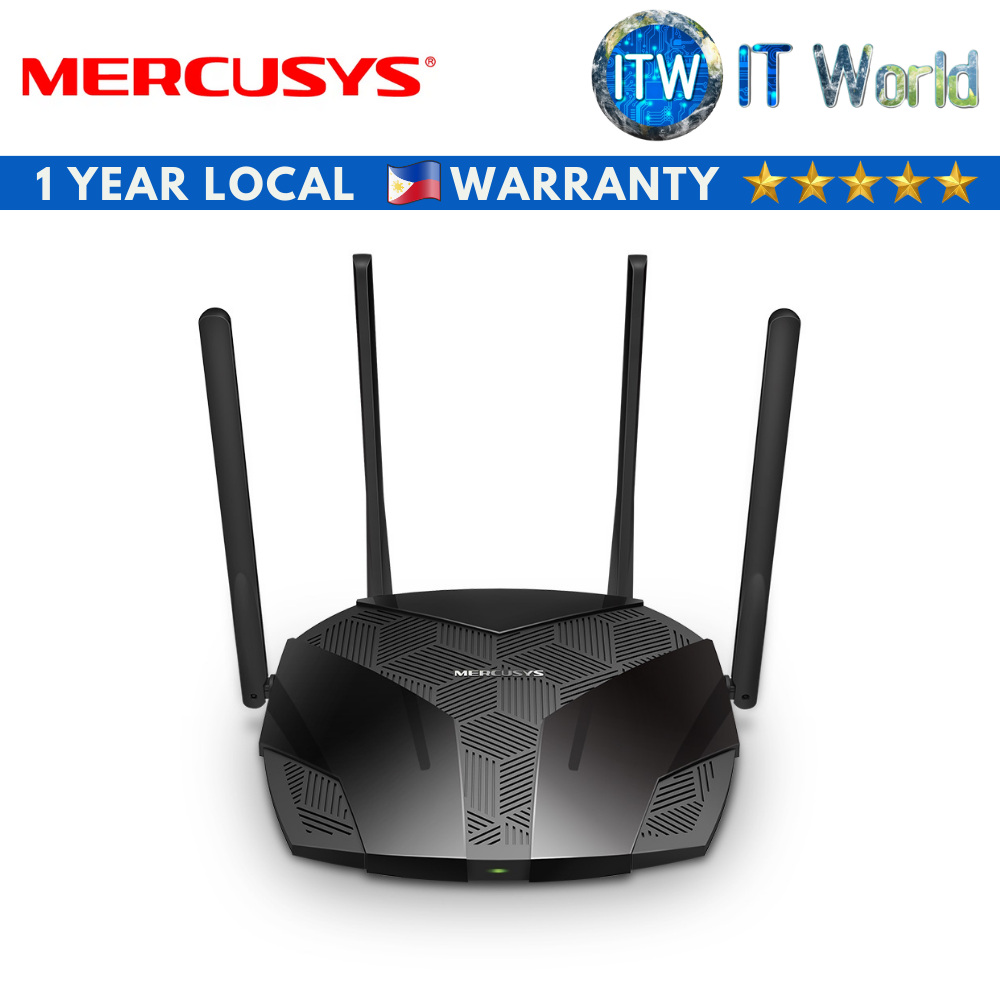

Mercusys AX3000 Dual-Band Wi-Fi 6 Router (MR80X)

Product Name: Mercusys AX3000 Dual-Band Wi-Fi 6 Router (MR80X)

Key Feature

* OPTIMAL WIFI 6 SPEEDS – Optimal WiFi 6 speeds reaching up to 3 Gbps for faster browsing, streamings, and downloading, all at the same time.

* MORE DEVICES, MORE FUN – Supports MU-MIMO and OFDMA to reduce congestion and quadruple the average throughput.

* WiFi THAT GOES FARTHER – 4× multi-directional high-gain antennas with Beamforming boost stable connections throughout your home for strong WiFi signals in every corner

* OVERALL SECURITY PROTECTION – The latest WPA3 provides improved WiFi security

* GIGABIT WIRED CONNECTIONS – Make full use of your internet access and transfer data at dizzying speeds for peak performance

* ECO-FRIENDLY POWER SAVING – Target Wake Time (TWT) reduces power consumption for your mobile and IoT devices during data transmissions

* LESS WIFI INTERFERENCE – Minimizes the interference from neighboring signals to improve transmission efficiency with BSS coloring

* SMART CONNECT – Intelligently chooses the best available band for each device

Specification

Wireless

Wireless Standards

Compatible with 802.11ax/ac/a/b/g/n Wi-Fi standards

WiFi Speeds

2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz)

Reception Sensitivity

11g 6Mbps: -97dBm

11g 54Mbps: -79dBm

11n HT40 MCS7:-74dBm

11n HT20 MCS7:-77dBm

11a 6Mbps: -97dBm

11a 54Mbps: -79dBm

11ac VHT20 MCS8:-75dBm

11ac VHT40 MCS9:-71dBm

11ac VHT80 MCS9:-67dBm

11ax HE20 MCS11:-67dBm

11ax HE40 MCS11:-64dBm

11ax HE80 MCS11:-61dBm

Transmission Power

2.4 GHz < 20dBm (EIRP)

5 GHz < 23dBm (band1、 band2)

5 GHz < 30dBm (band3)

Wireless Security

WPA / WPA2-Personal, WPA2 / WPA3-Personal

WPA2-Enterprise, WPA/WPA2-Enterprise

Wireless Functions: Enable/Disable Wireless Radio, WMM

Software

WAN Type: Dynamic IP/Static IP/PPPoE/L2TP/PPTP

Management

Access Control

Local Management

Remote Management

DHCP: Server, DHCP Client List

NAT Forwarding: Port Forwarding, Port Triggering, UPnP, DMZ

Firewall Security: SPI Firewall, IP and MAC Address Binding

Guest Network: 2.4 GHz Guest Network, 5 GHz Guest Network

VPN Server: OpenVPN/PPTP/L2TP/IPSec VPN Server and Clients

Hardware

Dimensions

8.2 × 6.8 × 1.6 in

(208.8 × 171.6 × 41.7 mm)

Interfaces: 1× Gigabit WAN Port + 3× Gigabit LAN Ports

Button: Reset/WPS Button

Antenna Type: 4× 5 dBi Fixed Omni-Directional Antennas

Others

Package Contents

• AX3000 Wi-Fi 6 Router MR80X

• Power Adapter

• Quick Installation Guide

• RJ45 Ethernet Cable

Environment

• Operating Temperature: 0°C~40°C (32°F~104°F)

• Operating Humidity: 10%~90% Non-Condensing

• Storage Humidity: 5%~90% Non-Condensing
