🔌 SMALL BUT MIGHTY Power Supply
🧱 Compact SFX form factor – perfect fit for mini-ITX builds
⚡ High power density – 160% greater power density vs V Gold 850 V2
🧩 Flexible compatibility – includes ATX compatibility bracket for ITX & ATX cases
🌟 Efficiency & Reliability
🏅 80 PLUS Gold certified – up to 90% efficiency @ typical load
🌬️ Quiet FDB fan (92mm) – long-lasting, quiet cooling
🌡️ Smart thermal control mode – fan speed adjusts based on PSU temperature
🧪 High-quality Japanese capacitors – reduced ripple noise & improved reliability
⚙️ Next-Gen Support
🔋 ATX 3.1 & SFX 12V Ver. 3.42 support
🔌 Durable 12V-2x6 cable (PCIe 5.1) – 90-degree 12+4-pin design for improved safety & lower temperatures
🧵 Fully modular cabling – cleaner builds, better airflow & thermal performance
🔗 16AWG PCIe high-efficiency cables
📋 Specifications

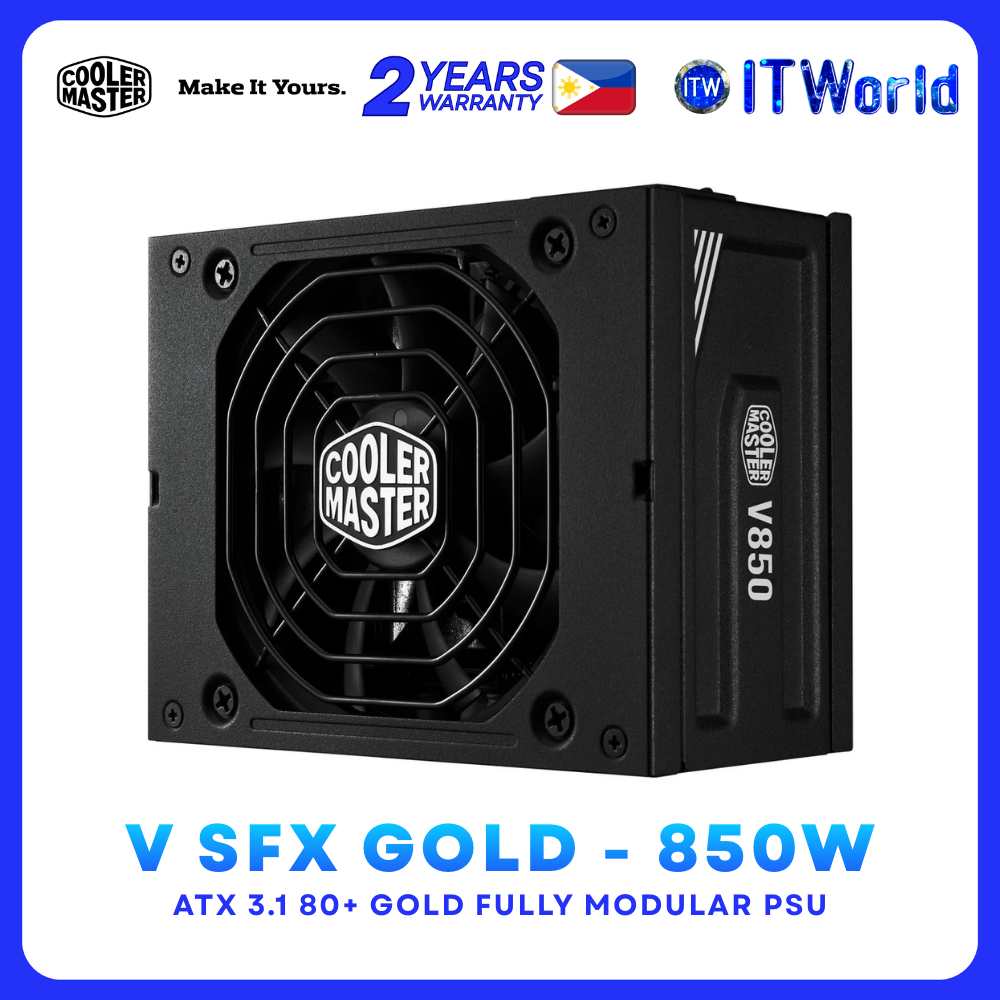

🏷️ Product Name: V SFX Gold 850 ATX 3.1
🆔 Item Code: MPY-8501-SFHAGV-3E
⚡ Total Power: 850W
🔌 PFC: Active PFC
🌍 Input Voltage: 100–240V
🔄 Input Current: 12–6A
🔁 Input Frequency: 50–60Hz
📐 Dimensions (L x W x H): 100 x 125 x 63.5 mm
🌬️ Fan Size: 92mm
🛡️ Protections: OVP / OPP / SCP / OCP / UVP / OTP / Surge & Inrush Protection
🧪 MTBF: >100,000 hours
🌡️ Operating Temperature: 0–50°C
⏱️ Power Good Signal: 100–500ms
⏳ Hold Up Time: 16ms
🌱 ErP 2014 Lot 3: Yes
📜 Regulatory: TUV, cTUVus, CE, BSMI, FCC, CCC, EAC, RCM, CB, UKCA
🔌 Connectors
🔗 ATX 24 Pin x1 (300mm)
🔗 EPS 4+4 Pin x1 (450mm)
🔗 EPS 8 Pin x1 (450mm)
🔗 SATA x8 (100+115+115+115mm)
🔗 Peripheral 4 Pin x4 (100+115+115+115mm)
🔗 PCI-e 6+2 Pin x4 (400+120mm)
🔗 12V-2x6 x1 (400mm)
📦 Package Contents
🎒 Cable bag
🔌 Power cord
🧷 Zip ties x7
🪢 Velcro x3
🔩 Screw bag
🧩 ATX–ITX adapter bracket
📘 Manual
📄 Installation Guide
