🔋 Small but Mighty Power Supply
🧱 Compact SFX dimensions – perfect fit for mini-ITX builds
⚡ High power density – 160% greater than V Gold 750 V2
🧩 Flexible compatibility – includes ATX compatibility bracket for ITX & ATX cases
🌟 Efficiency & Cooling
🏅 80 PLUS Gold certified – over 90% efficiency @ typical loads
🌬️ 92mm FDB fan – quiet, long-lasting, effective cooling
🌡️ Smart thermal control mode – fan speed adjusts by PSU temperature
⚙️ Next-Gen Support & Build Quality
🔌 ATX 3.1 & SFX 12V Ver. 3.42 support
🔗 Durable 12V-2x6 cable (PCIe 5.1) – 90-degree 12+4-pin design for improved safety
🧵 Fully modular cabling – reduced clutter & better airflow
🔗 16AWG PCIe high-efficiency cables
🧪 High-quality Japanese capacitors – reduced ripple noise & enhanced reliability
📋 Specifications

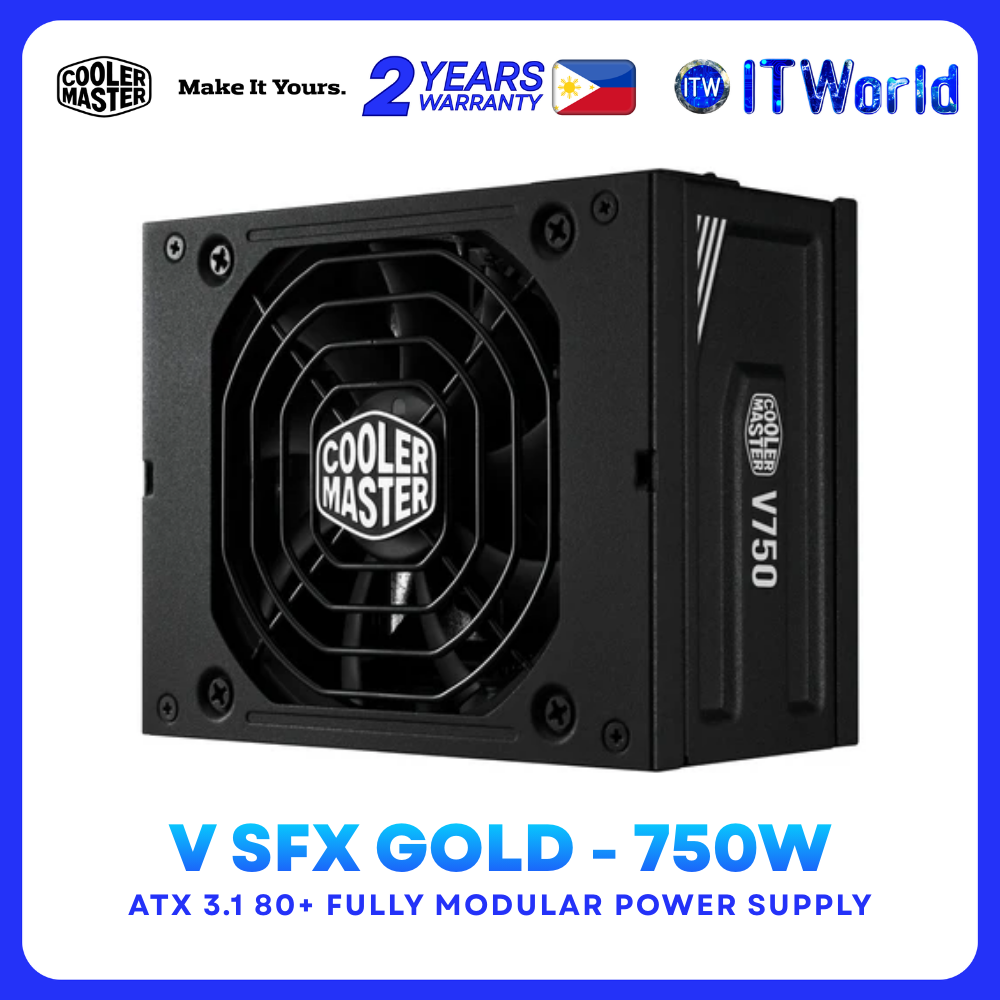

🏷️ Product Name: V SFX Gold 750 ATX 3.1
🆔 Item Code: MPY-7501-SFHAGV-3E
⚡ Total Power: 750W
🔌 PFC: Active PFC
🌍 Input Voltage: 100–240V
🔁 Input Frequency: 50–60Hz
🔌 Input Current: 10–5A
⚙️ Efficiency: 90% @ typical load
🌱 ErP 2014 Lot 3: Yes
🌡️ Operating Temperature: 0–50°C
⏱️ Power Good Signal: 100–500ms
⏳ Hold Up Time: 16ms
🧪 MTBF: >100,000 hours
🛡️ Protections: OVP / OPP / SCP / OCP / UVP / OTP / Surge & Inrush Protection
📜 Regulatory: TUV, cTUVus, CE, BSMI, FCC, CCC, EAC, RCM, CB, UKCA
🔋 DC Output: +3.3V (20A), +5V (20A), +12V (62.5A), -12V (0.3A), +5Vsb (3A)
🔌 Connectors
🔗 ATX 24 Pin x1 (300mm)
🔗 EPS 4+4 Pin x1 (450mm)
🔗 EPS 8 Pin x1 (450mm)
🔗 SATA x8 (100+115+115+115mm)
🔗 Peripheral 4 Pin x4 (100+115+115+115mm)
🔗 PCI-e 6+2 Pin x4 (400+120mm)
🔗 12V-2x6 x1 (400mm)
📐 Physical
📏 Dimensions (L x W x H): 100 x 125 x 63.5 mm
🌬️ Fan Size: 92mm
🧲 Fan Bearing: FDB
📦 Package Contents
🎒 Cable bag
🔌 Power cord
🧷 Zip ties x7
🪢 Velcro x3
🔩 Screw bag
🧩 ATX-ITX adapter bracket
📘 Manual
📄 Installation Guide
