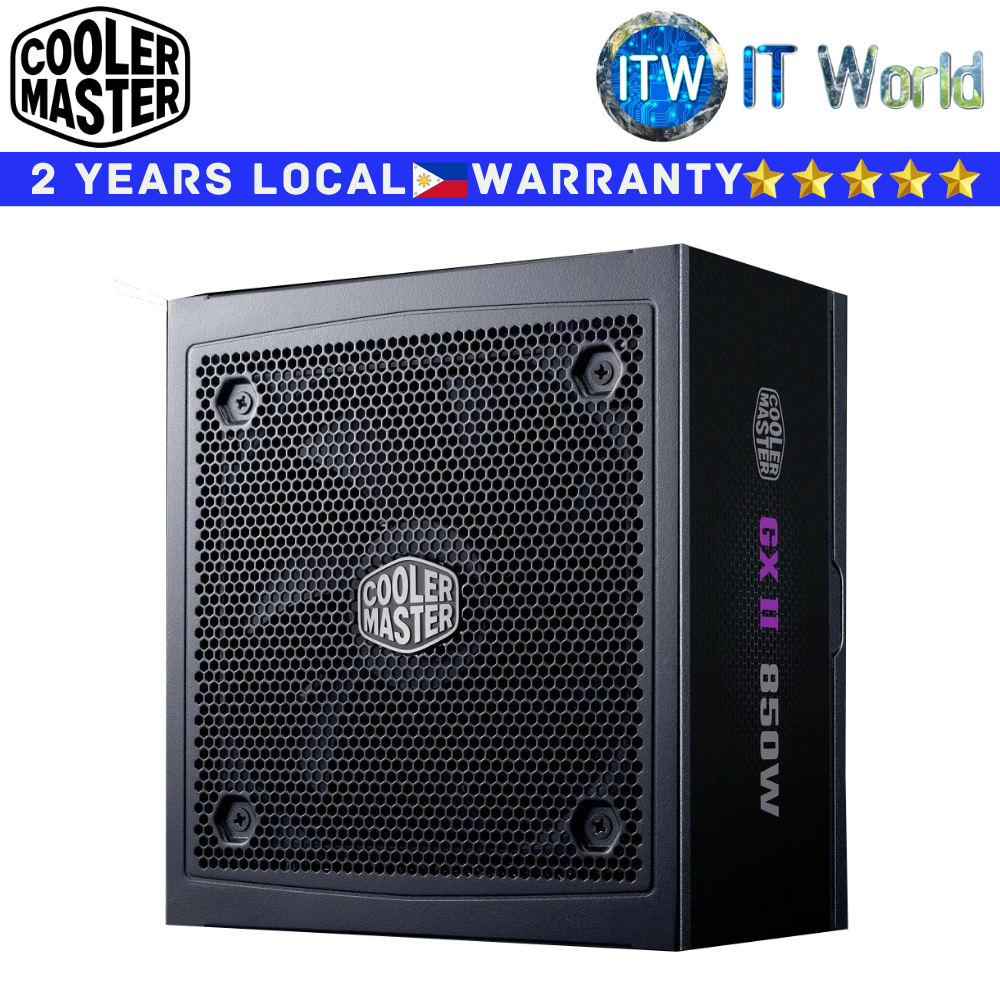

Product Name: Itw | Cooler Master PSU 850Watts Power Supply Unit GX II 850 80+ Gold (MPX-8503-AFAG-2BUS)
Key Feature
• ATX 3.0 support & a durable 12VHPWR cable
• 80 Plus Gold certified efficiency
• Silent fan performance with a zero-RPM mode
• Separated thermal technologies
• Fully modular cabling
Specification
• ATX Version: ATX 12V Ver. 3.0
• PFC: Active PFC
• Input Voltage: 100-240V
• Input Current: 10-5A
• Input Frequency: 50-60Hz
• Dimensions (L x W x H): 160 x 150 x 86 mm
• Fan Size: 120mm
• Fan Bearing: HDB
• Fan Speed: 2500 RPM
• Efficiency: ≥90% @ Typical Load
• 80 PLUS Rating: 80 PLUS Gold
• ErP 2014 Lot 3: Yes
• Operating Temperature: 0-40°C
• Power Good Signal: 100 - 150 ms
• Hold Up Time: ≥16ms at 80% Load
• MTBF: >100,000 Hours
• Protections: OPP/ OVP/ OTP/ OCP/ SCP/ UVP/ Surge & Inrush Protection
• Regulatory: cTUVus, TUV, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, RoHS2.0 / BIS, KC (Based on region's requests.)
• ATX 24 Pin Connectors: 1
• EPS 4+4 Pin Connectors: 1
• EPS 8 Pin Connector: 1
• SATA Connectors: 6
• Peripheral 4 Pin Connectors: 2
• PCI-e 6+2 Pin Connectors: 4
• 12VHPWR Connector: 1
• Series: GX Series
• Category: Above 750W
• Modular: Fully Modular
• 80 Plus: Gold
