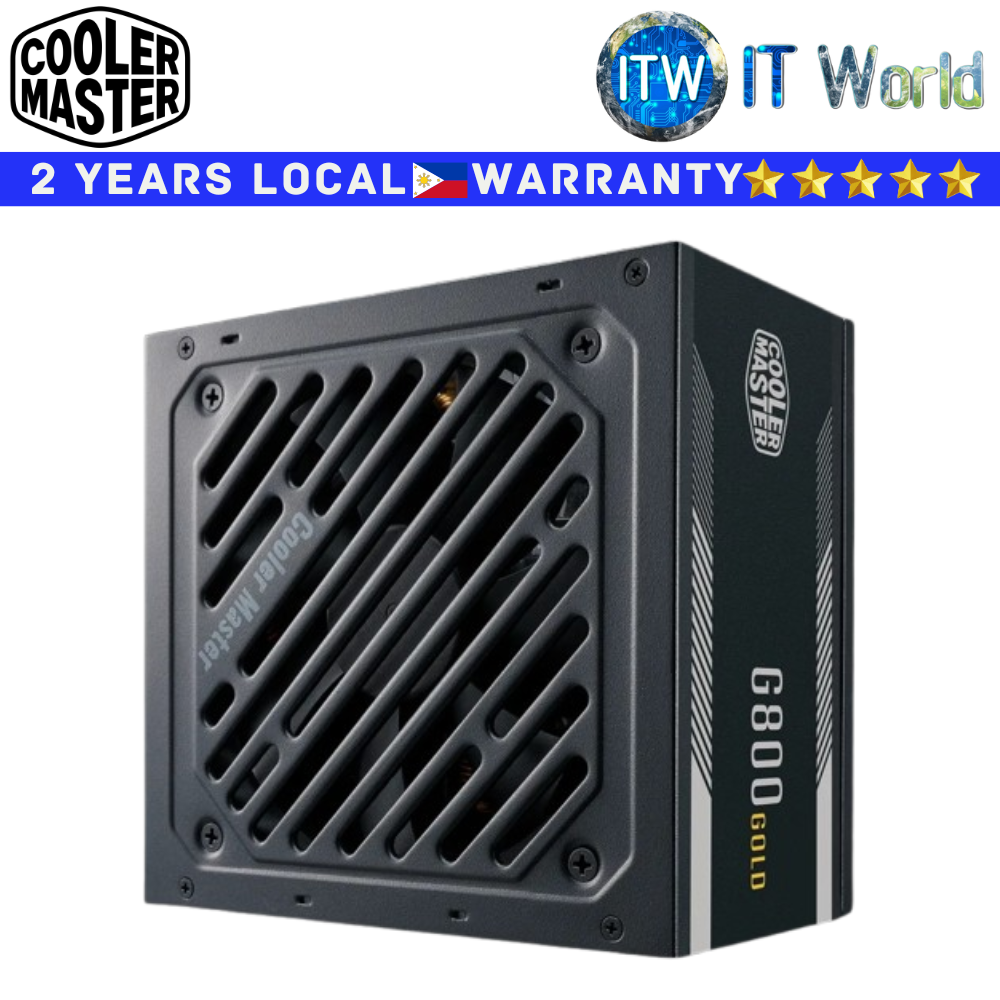

Product Name: Cooler Master G800 GOLD 80+ Gold Non Modular ATX PSU (MPW-8001-ACAAG-U2)
Key Feature
• 80 PLUS Gold Efficiency
• Intel ATX 12V version 2.52
• 2 EPS Connectors
• 120mm HDB Fan
• High Temperature Resistance
Specification
• ATX Version: ATX 12V V2.52
• PFC: Active PFC
• Input Voltage: 100-240V
• Input Current: 12-6A
• Input Frequency: 47-63Hz
• Dimensions (L x W x H): 140 x 150 x 86 mm
• Fan Size: 120mm
• Fan Bearing: HDB
• Efficiency: ≥90% @ Typical Load
• 80 PLUS Rating: 80 PLUS Gold
• ErP 2014 Lot 3: Yes
• Operating Temperature: 0-40°C
• Power Good Signal: 100 - 150 ms
• Hold Up Time: ≥15ms at 100% load
• MTBF: >100,000 Hours
• Protections: OVP, UVP, OPP, OTP, SCP, OCP
• Regulatory: CB, cTUVus, TUV, CE, RoHS2.0, FCC, CCC, BSMI, KC+KCC, BIS, EAC
• ATX 24 Pin Connectors: 1
• EPS 4+4 Pin Connectors: 1
• EPS 8 Pin Connector: 1
• SATA Connectors: 6
• Peripheral 4 Pin Connectors: 3
• PCI-e 6+2 Pin Connectors: 4
• Series: G Series
• 80 Plus: Gold
• Modular: Non Modular
• Category: Above 750W
