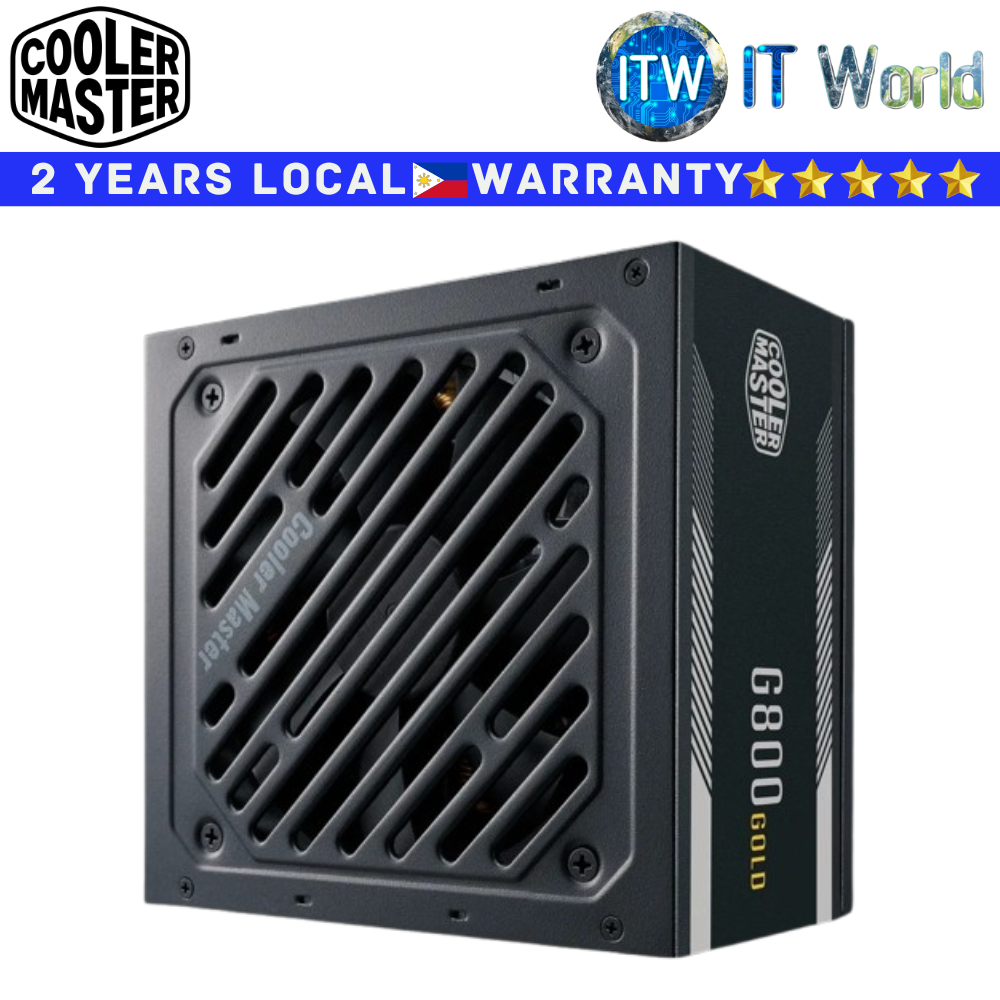

Cooler Master PSU 800 Watts Power Supply Units G800 80+Gold Non-Modular (MPW-8001-ACAAG-U2)

Product Name: Cooler Master G800 GOLD 80+ Gold Non Modular ATX PSU (MPW-8001-ACAAG-U2)

Key Feature

• 80 PLUS Gold Efficiency

• Intel ATX 12V version 2.52

• 2 EPS Connectors

• 120mm HDB Fan

• High Temperature Resistance

Specification

• ATX Version: ATX 12V V2.52

• PFC: Active PFC

• Input Voltage: 100-240V

• Input Current: 12-6A

• Input Frequency: 47-63Hz

• Dimensions (L x W x H): 140 x 150 x 86 mm

• Fan Size: 120mm

• Fan Bearing: HDB

• Efficiency: ≥90% @ Typical Load

• 80 PLUS Rating: 80 PLUS Gold

• ErP 2014 Lot 3: Yes

• Operating Temperature: 0-40°C

• Power Good Signal: 100 - 150 ms

• Hold Up Time: ≥15ms at 100% load

• MTBF: >100,000 Hours

• Protections: OVP, UVP, OPP, OTP, SCP, OCP

• Regulatory: CB, cTUVus, TUV, CE, RoHS2.0, FCC, CCC, BSMI, KC+KCC, BIS, EAC

• ATX 24 Pin Connectors: 1

• EPS 4+4 Pin Connectors: 1

• EPS 8 Pin Connector: 1

• SATA Connectors: 6

• Peripheral 4 Pin Connectors: 3

• PCI-e 6+2 Pin Connectors: 4

• Series: G Series

• 80 Plus: Gold

• Modular: Non Modular

• Category: Above 750W
