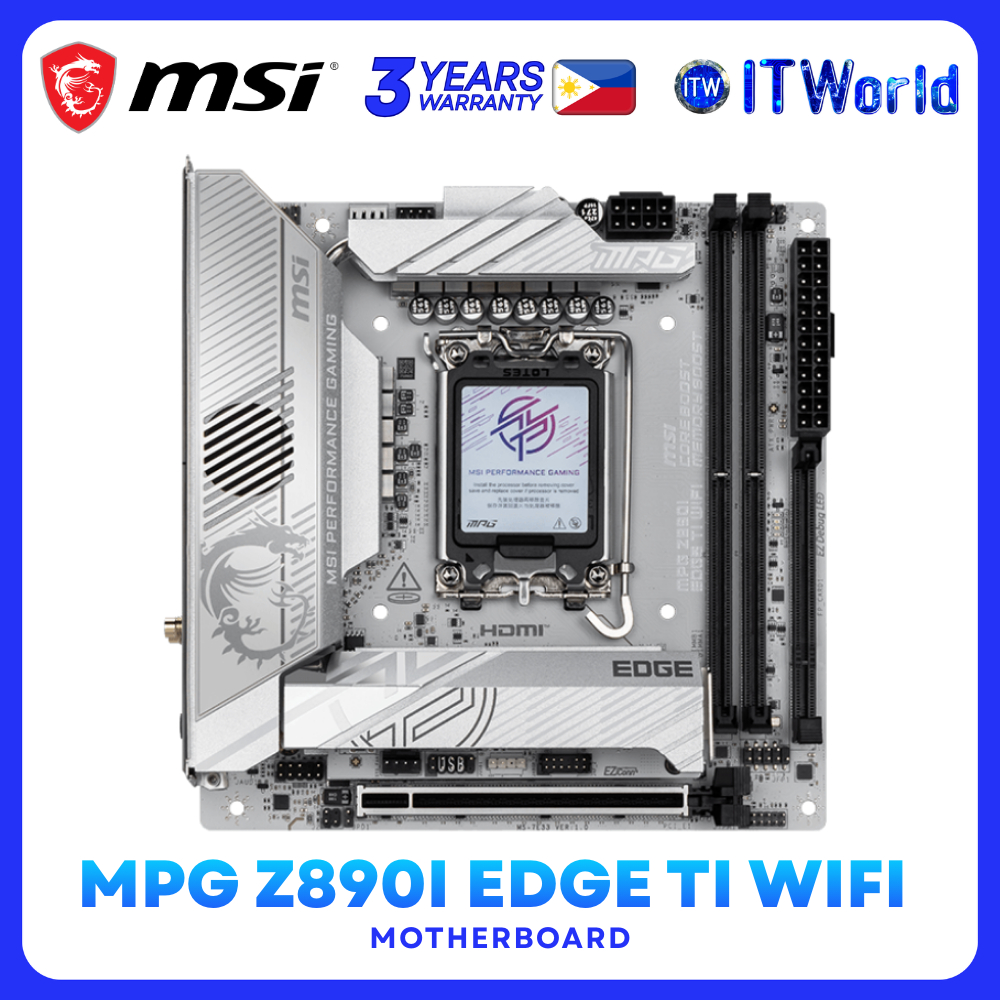

Build a powerful compact system with the MSI MPG Z890I EDGE TI WIFI, featuring the latest Intel® Z890 chipset, DDR5 overclocking, Thunderbolt™ 4, and next-gen Wi-Fi 7 connectivity ⚡🖥️
🧠 Platform & Chipset
Chipset: Intel® Z890
CPU Socket: LGA 1851
CPU Support: Intel® Core™ Ultra Processors (Series 2)
💾 Memory Support
Slots: 2× DDR5
Max Capacity: 128GB
Memory Speed:
8600–6400 MT/s (OC)
6400–4800 MT/s (JEDEC)
Overclocking Support: Intel XMP 3.0
Memory Features:
Dual-Controller Dual-Channel
Non-ECC, Un-buffered
CUDIMM Support
DIMM Design: Single-sided latches
🎮 Expansion Slot
1× PCIe x16 Slot
PCIe Version: PCIe 5.0 x16 (from CPU)
Supports BIOS adjustment: X8+X8 / X8+X4+X4
🖥️ Graphics Output (iGPU Required)
1× HDMI™ 2.1 (FRL) – up to 8K@60Hz
2× USB-C DisplayPort (Thunderbolt™ 4)
DisplayPort 2.1 UHBR20
Up to 4K@120Hz / 8K@60Hz
💽 Storage
M.2 Slots: 4×
M.2_1: PCIe 5.0 x4 (CPU)
M.2_2: PCIe 4.0 x4 (CPU)
M.2_3: PCIe 4.0 x4 / SATA (Chipset)
M.2_4: PCIe 4.0 x4 (Chipset)
SATA: 2× SATA 6G
RAID Support:
SATA: RAID 0 / 1 / 5
M.2 NVMe: RAID 0 / 1 / 5 / 10
🔊 Audio
Codec: Realtek® ALC4080
Audio: 7.1-Channel USB High-Performance Audio
S/PDIF Output: Supported
⚡ Thunderbolt™ & USB
Thunderbolt™ 4: 2× (Rear)
Up to 40Gbps (TB devices)
Up to 20Gbps (USB4)
Up to 15W charging
Daisy-chain supported
USB Ports:
Front: 2× USB 2.0, 2× USB 5Gbps Type-A, 1× USB 20Gbps Type-C (PD 27W)
Rear: 7× USB 10Gbps Type-A, 1× USB 10Gbps Type-C
🌐 Networking
LAN: Intel® Killer™ E5000B 5G LAN
Wireless: Intel® Killer™ BE1750x Wi-Fi 7
Tri-band 2.4 / 5 / 6GHz
Up to 5.8Gbps
Bluetooth: Bluetooth® 5.4
🔧 Internal I/O & Features
EZ Debug LED ×4
TPM Header (TPM 2.0)
Addressable V2 RGB Header
Thermal Sensor Header
Multiple Fan & System Headers
