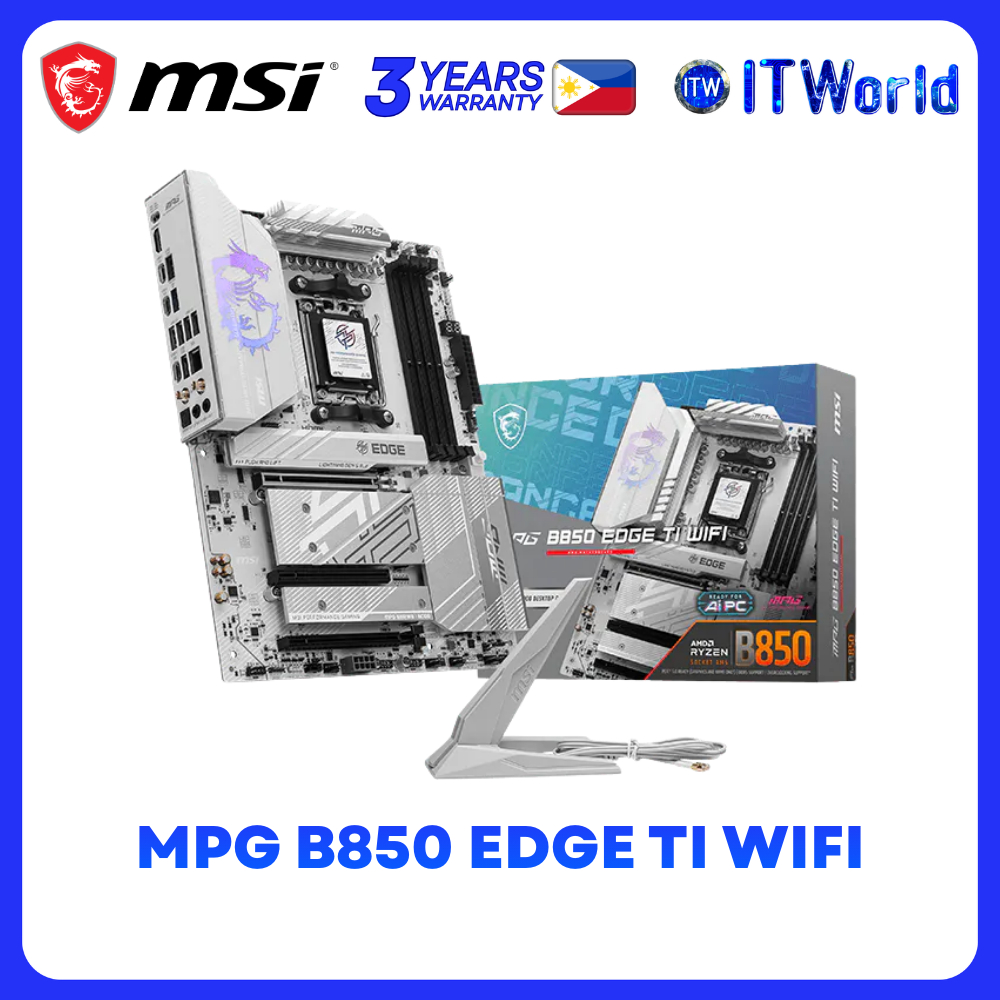

Power your next-gen white build with the MSI MPG B850 EDGE TI WIFI — engineered for AMD Ryzen™ 9000 Series with PCIe 5.0, true Wi-Fi 7, and blazing 5G LAN. Built for enthusiasts who demand performance, expandability, and a clean silver-white aesthetic.
🤍 Premium White ATX Design
Silver-white theme for standout custom builds
ATX Form Factor: 304.8mm x 243.84mm
🖥️ AM5 Platform – AMD B850 Chipset
Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
Socket AM5
Optimized for Ryzen™ 9000 Series performance
⚡ Extreme DDR5 Performance
4x DDR5 UDIMM (Dual Channel)
Max Memory: 256GB
DDR5 8400 – 5600 (OC) / 5600 – 4800 (JEDEC) MT/s
Ryzen™ 9000 Series OC up to 8400+ MT/s (1DPC 1R)
Supports AMD EXPO™, Memory Overclocking
Non-ECC, Unbuffered, CUDIMM (Clock Driver bypass mode)
🎮 PCIe 5.0 Ready Expansion
3x PCIe x16 Slots
PCI_E1: PCIe 5.0 x16 (CPU)
PCI_E2: PCIe 3.0 x1 (Chipset)
PCI_E3: PCIe 4.0 x4 (Chipset)
Supplemental PCIe Power (8-pin)
🚀 Advanced Storage Architecture
4x M.2 Slots
M.2_1 & M.2_2: Up to PCIe 5.0 x4 (CPU)
M.2_3: PCIe 4.0 x2 (Chipset)
M.2_4: PCIe 4.0 x4 (Chipset)
Supports 22110 / 2280 / 2260 devices (slot dependent)
4x SATA 6G
RAID 0 / 1 / 10 (RAID 10 for Ryzen™ 9000/7000 Series)
🌐 Next-Gen Connectivity
True Wi-Fi 7 (2.4GHz / 5GHz / 6GHz up to 5.8Gbps)
802.11 a/b/g/n/ac/ax/be
Bluetooth® 5.4 (Ready in Windows 11 24H2)
1x Realtek® 8126 5G LAN
🎧 Premium Audio System
Realtek® ALC4080 Codec
7.1-Channel USB High-Performance Audio
Up to 32-Bit / 384kHz playback
Optical S/PDIF Out
🔌 High-Speed USB Connectivity
Rear I/O Includes:
4x USB 2.0
1x USB 5Gbps Type-A
2x USB 10Gbps Type-A
3x USB 10Gbps Type-C
HDMI™ 2.1 (Up to 8K 60Hz with compatible APU)
Flash BIOS Button & Clear CMOS
Front Connectivity:
4x USB 2.0
4x USB 5Gbps Type-A
1x USB 20Gbps Type-C
🛠️ Builder-Focused Features
4x EZ Debug LED
EZ Digit Debug LED
EZ Memory Detection LED
6x System Fan Headers
3x Addressable V2 RGB + 1x RGB Header
TPM 2.0 Support
🖥️ OS Support
Windows® 11 64-bit
