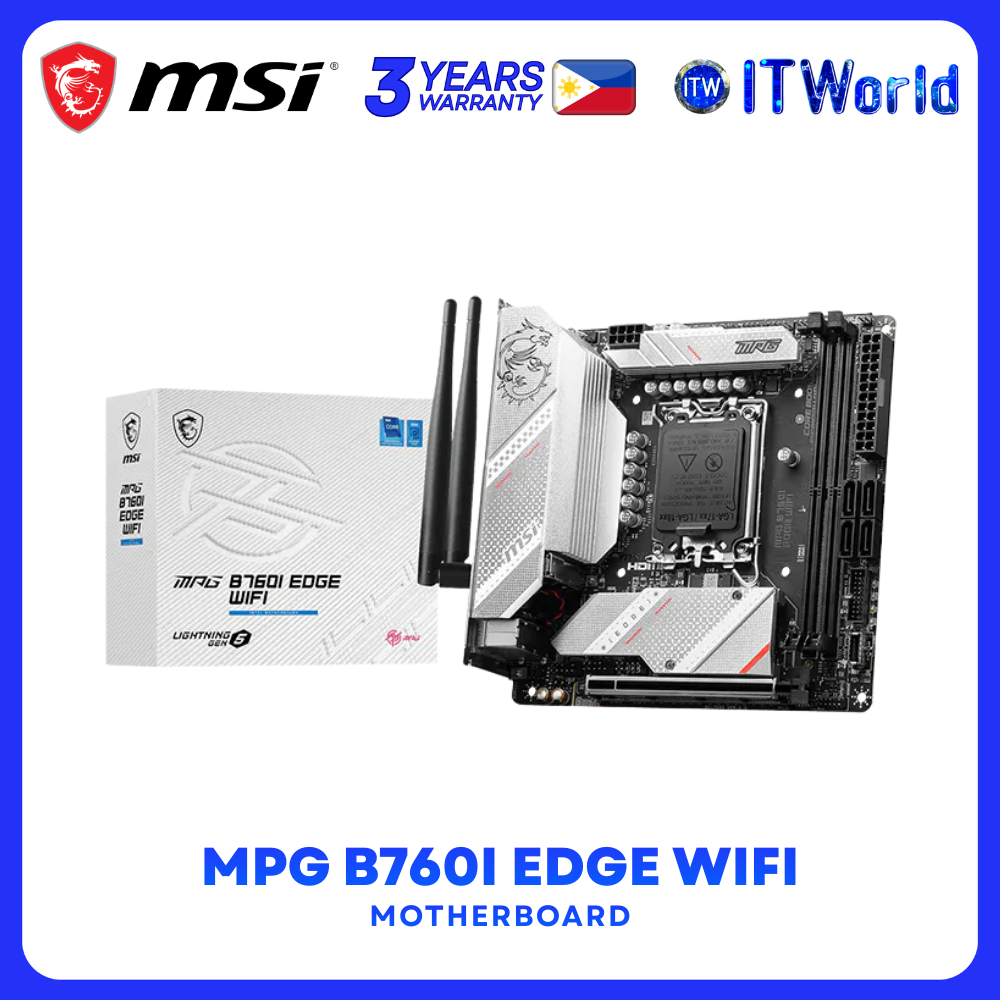

MPG B760I EDGE WIFI showcases a stylish silver-white design while delivering powerful performance in a compact Mini-ITX form factor—perfect for high-end small form factor builds. ⚙️✨
🔹 Chipset & CPU Support
🧠 Intel® B760 Chipset
🔌 LGA 1700 socket
🚀 Supports Intel® Core™ 14th / 13th / 12th Gen, Pentium® Gold & Celeron® processors
🔹 Memory Performance
💾 2× DDR5 Dual-Channel (Max 128GB)
⚡ Up to 7200+ MHz (OC)
🔥 Intel® XMP support
📌 Non-ECC, un-buffered memory
🔹 Graphics & Display Output (Requires CPU with integrated graphics)
🖥️ HDMI™ 2.1 with HDR – Up to 4K 60Hz
🎮 DisplayPort 1.4 – Up to 8K 60Hz
🔹 Expansion Slot
🛡️ 1× PCIe 5.0 x16 slot (From CPU)
🔹 Storage Options
🚀 2× M.2 PCIe 4.0 x4 (2280)
💽 4× SATA 6G
🔄 RAID 0 / 1 / 5 / 10 for SATA
🔹 Audio
🎧 Realtek® ALC897 Codec
🔊 7.1-Channel High Definition Audio
🔹 LAN & Wireless Connectivity
🌐 Realtek® RTL8125BG 2.5Gbps LAN
📡 Intel® Wi-Fi 6E (Up to 2.4Gbps, 6GHz support)
🔵 Bluetooth® 5.3
📶 MU-MIMO TX/RX
🔹 USB Connectivity
🔌 USB 10Gbps Type-C (Rear & Front)
🔌 USB 10Gbps Type-A (Rear)
🔌 USB 5Gbps Type-A (Front & Rear)
🔌 USB 2.0 (Front & Rear)
🔹 Internal I/O & Cooling
🧊 CPU Fan + Pump Fan + System Fan headers
🌈 Addressable RGB Gen2 + RGB header
🔐 TPM 2.0 support
🧩 Chassis intrusion header
🎧 Front audio header
🔹 Back Panel Ports
🖥️ DisplayPort & HDMI™
🌐 2.5G LAN
📡 Wi-Fi / Bluetooth
🎧 Audio connectors
⚡ USB 10Gbps Type-A & Type-C
🔌 USB 5Gbps & USB 2.0
🔹 EZ DIY & Debug Feature
💡 4× EZ Debug LED
🔹 Form Factor & OS Support
📏 Mini-ITX – 170mm × 170mm
🪟 Windows® 11 64-bit / Windows® 10 64-bit
