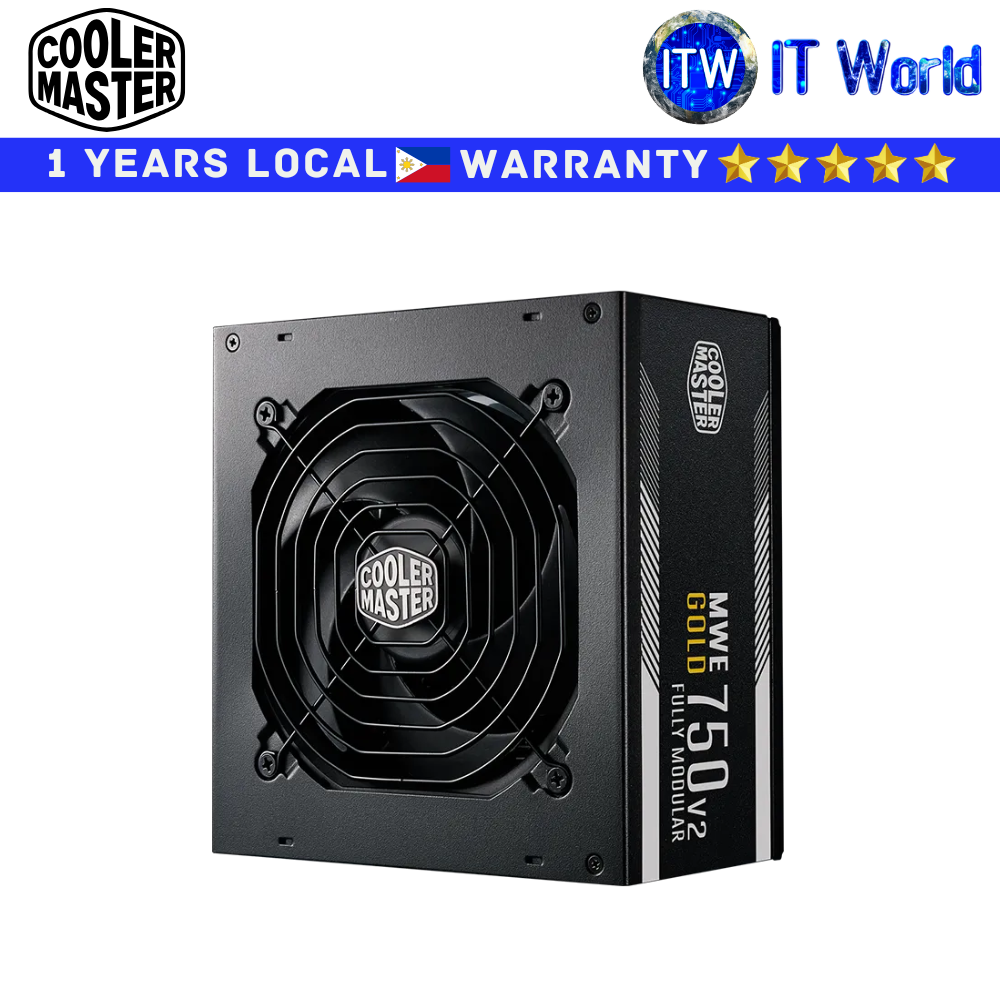

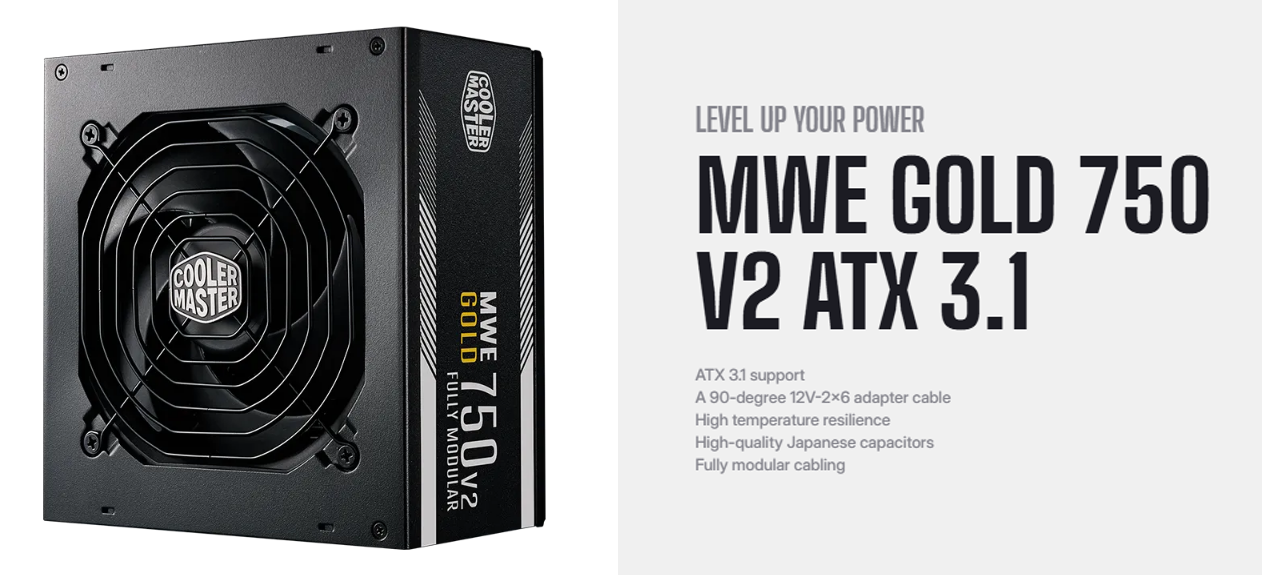

Coolermaster PSU 750W Power Supply Unit MWE 80+ Gold ATX Fully Modular (MPE-7501-AFAAG-3EU2) | itw

Product Name: Itw | Coolermaster PSU 750W Power Supply Unit MWE 80+ Gold ATX Fully Modular (MPE-7501-AFAAG-3EU2)

Specification

• Model: MPE-7501-AFAAG-3EU2

• ATX Version: ATX 12V Ver. 3.1

• PFC: Active PFC

• Input Voltage: 100-240V

• Input Current: 10-5A

• Input Frequency: 50-60Hz

• Dimensions (L x W x H): 160 x 150 x 86 mm

• Fan Size: 120mm

• Fan Bearing: HDB

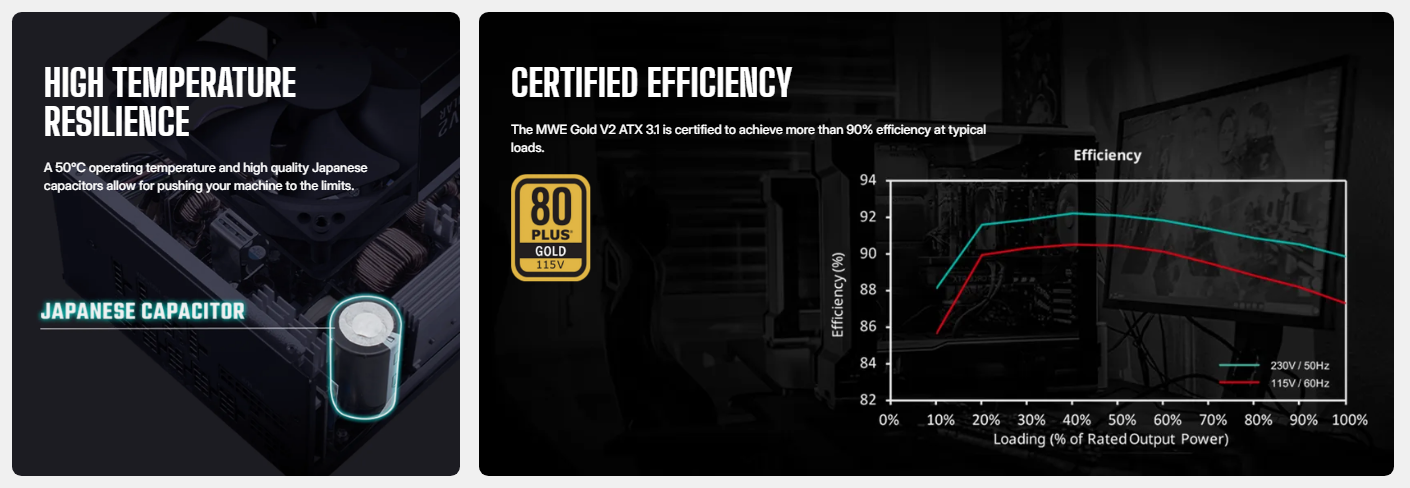

• Efficiency: ≥90% @ Typical Load

• 80 PLUS Rating: 80 PLUS Gold

• ErP 2014 Lot 3: Yes

• Operating Temperature: 0-50°C

• Power Good Signal: 100 - 150 ms

• Hold Up Time: ≥ 16ms

• MTBF: >100,000 Hours

• Protections: UVP / OVP / OPP / OTP / SCP / OCP

• Regulatory: TUV, CE, CCC, EAC, RCM, cTUVus, FCC, BSMI, BIS, UKCA

• ATX 24 Pin Connectors: 1

• EPS 4+4 Pin Connectors: 1

• EPS 8 Pin Connector: 1

• SATA Connectors: 12

• Peripheral 4 Pin Connectors: 4

• PCI-e 6+2 Pin Connectors: 4

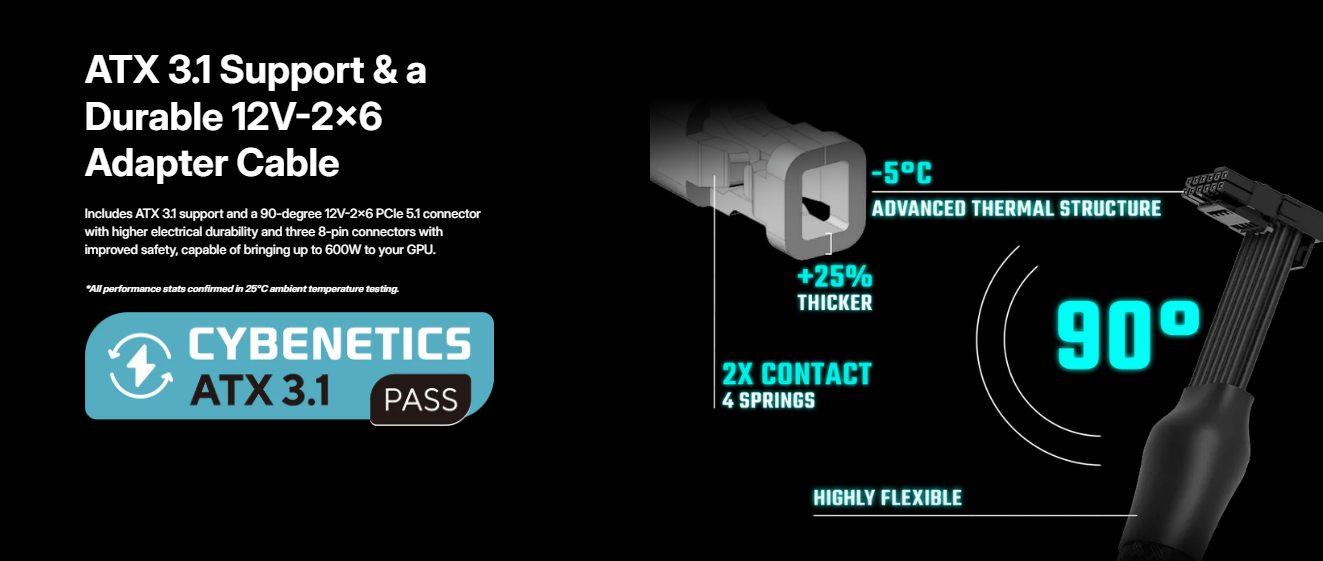

• 12V-2x6 Connectors: 1 (1 to 3)

• Category: Above 750W

• Series: MWE Gold Series

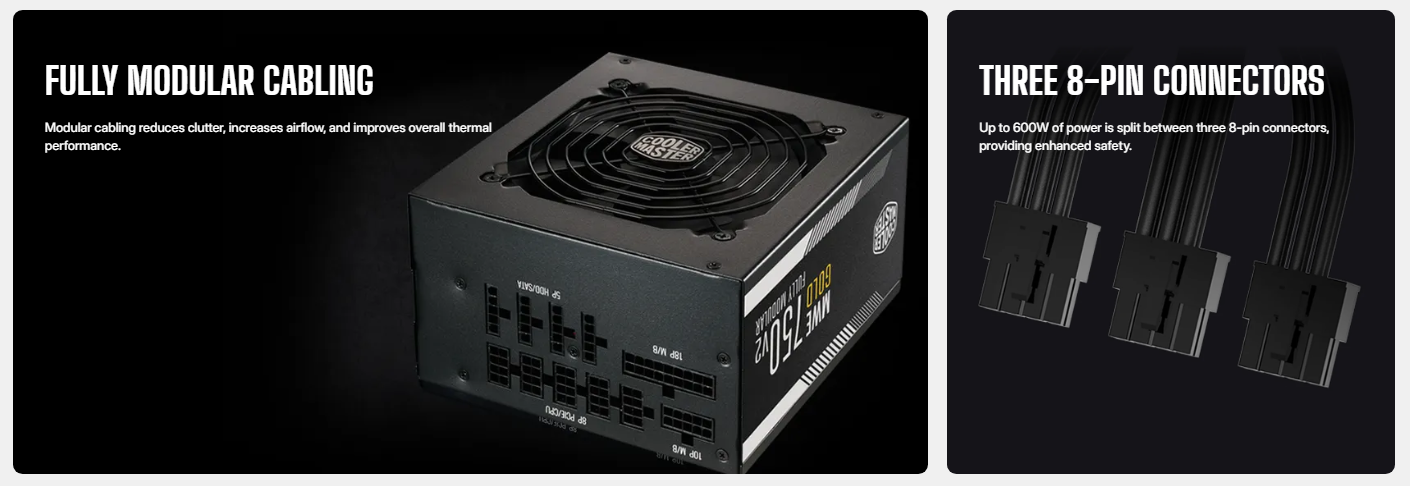

• Modular: Fully Modular

• Form Factor: ATX

• 80 Plus Efficiency: Gold

• Watts: 750W
