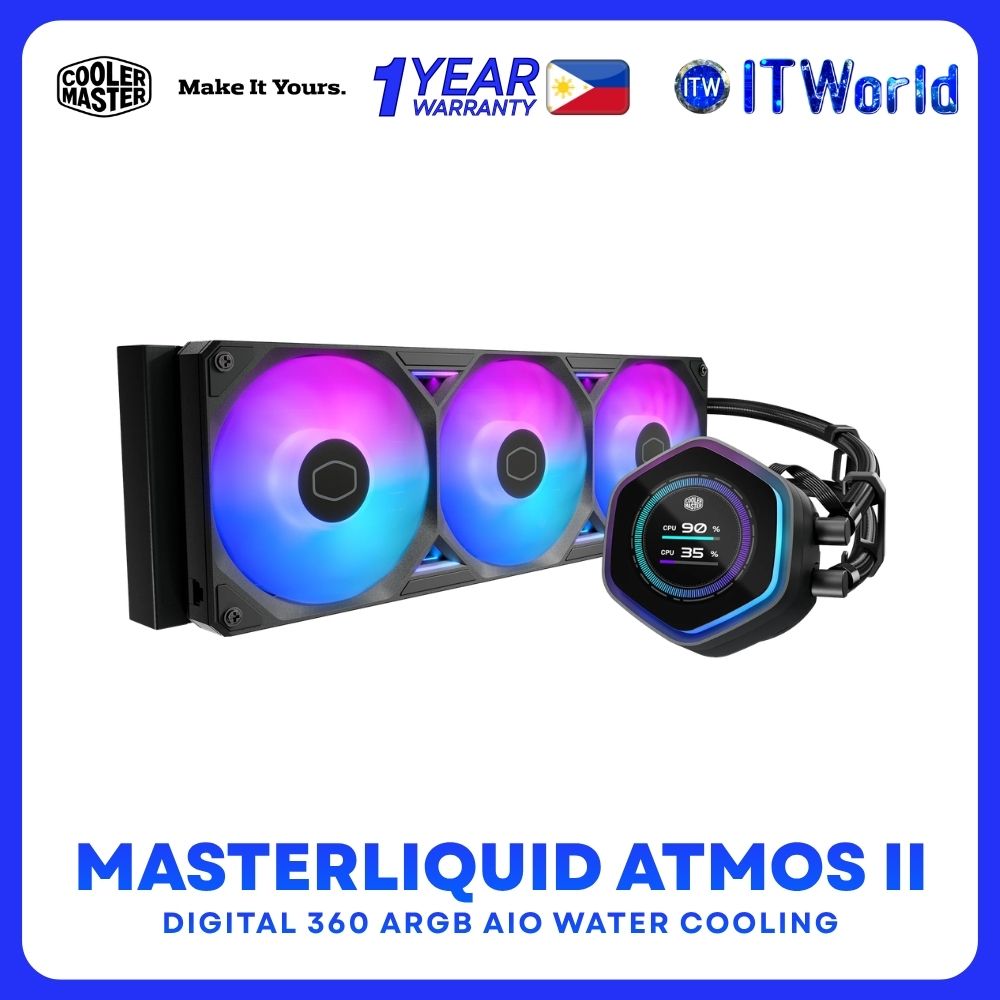

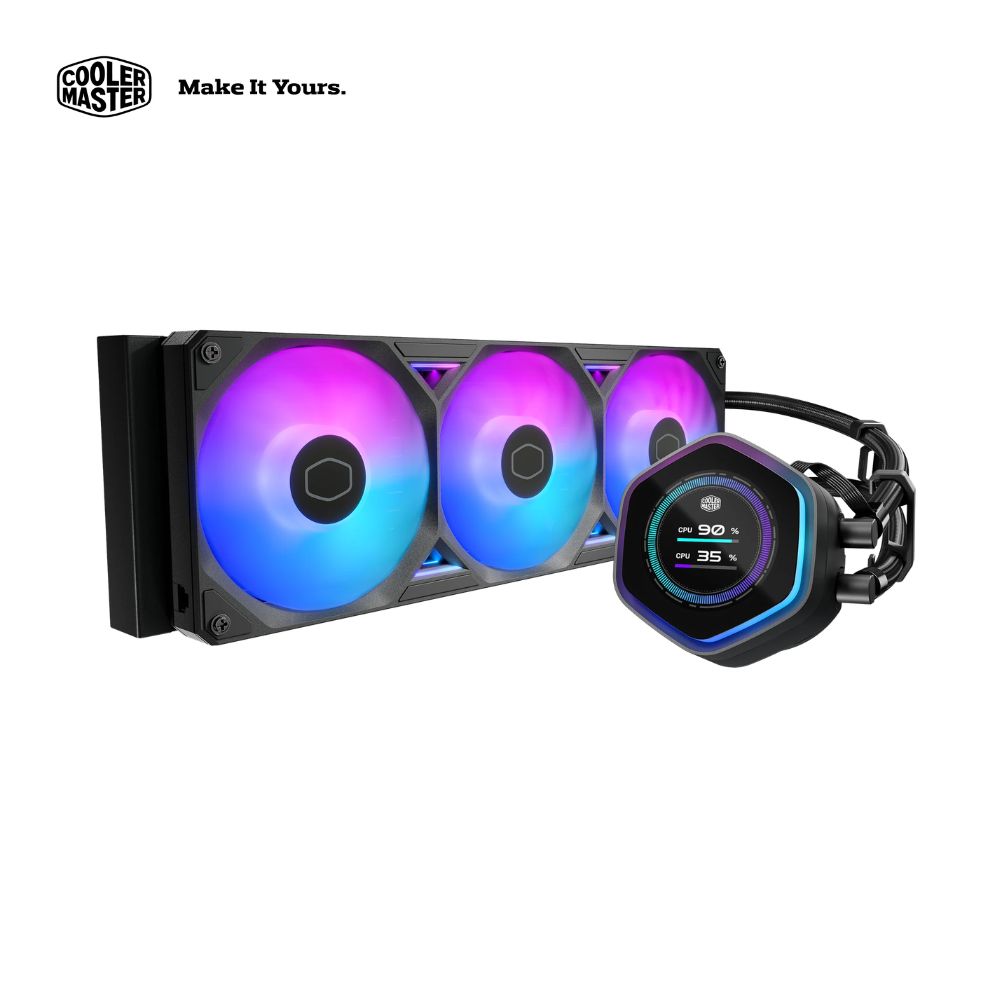

Push your cooling performance further with the Cooler Master MasterLiquid Atmos II LCD 360 Black — a premium liquid CPU cooler featuring a customizable LCD display, Addressable Gen 2 RGB lighting, and expanded 360mm radiator cooling for high-performance systems.
📦 Product Highlights:
🖤 LCD Exterior Color: Black
❄️ Cooler Type: Liquid Cooler
🛠️ Series: MasterLiquid
🧩 Radiator Size: 360mm
🖥️ CPU Socket Compatibility:
🔹 AMD® AM5 / AM4
🌡️ Radiator Specifications:
🧱 Material: Aluminum
📏 Radiator Dimensions: 394 × 119.2 × 27 mm (15.5 × 4.7 × 1.1 inch)
🔗 Tube Length: 400mm
🚀 Pump Performance:
✨ Addressable Gen2 RGB Pump
⚡ Pump Speed: 3400 ± 300 RPM
🔇 Pump Noise: Up to 25 dBA
🕒 Pump MTTF: >210,000 Hours
🔌 Pump Connector: 3-Pin ARGB + 4-Pin PWM
⚡ Rated Voltage: 12 VDC
🔋 Power Consumption: 3.84W
📏 Pump Dimensions: 92.5 × 87 × 38.5 mm
🌬️ Fan Specifications:
✨ Addressable Gen 2 RGB
🌀 Fan Quantity: 1 PC
⚡ Fan Speed: 690–2500 RPM ±15%
💨 Maximum Airflow: 322.8 m³/h (190 CFM)
🌪️ Fan Air Pressure: 3.61 mmH₂O
🔇 Noise Level: 38.5 dB(A)
🕒 Fan MTTF: >160,000 Hours
🧩 Bearing Type: Loop Dynamic Bearing
🔌 Connector: 7-Pin PWM + ARGB
⚡ Rated Voltage: 12 VDC
🔋 Rated Current: 0.5A
🛡️ Safety Current: 0.8A
⚡ Power Consumption: 6W
📏 Fan Dimensions: 361 × 122 × 26.5 mm
🖥️ Integrated LCD Display:
📺 Screen Size: 2.1 inches (53.3mm Diameter)
🖼️ Resolution: 480 × 480 px
✨ Brightness: 300 cd/m²
⚡ Refresh Rate: 60Hz
🔄 Screen Orientation: Software adjustable via MasterCtrl
🔌 Connector: USB Type-C to Motherboard 9-pin
⚡ LCD Rated Voltage: 5 VDC
🔋 LCD Rated Current: 0.3A
🛡️ LCD Safety Current: 0.5A
⚡ LCD Power Consumption: 1.5W
📏 LCD Dimensions: 85 × 79.2 × 18.7 mm
📦 In the Box:
• Cooler Master MasterLiquid Atmos II LCD 360 Black
• Radiator Assembly
• RGB Pump Unit
• Fan Assembly
