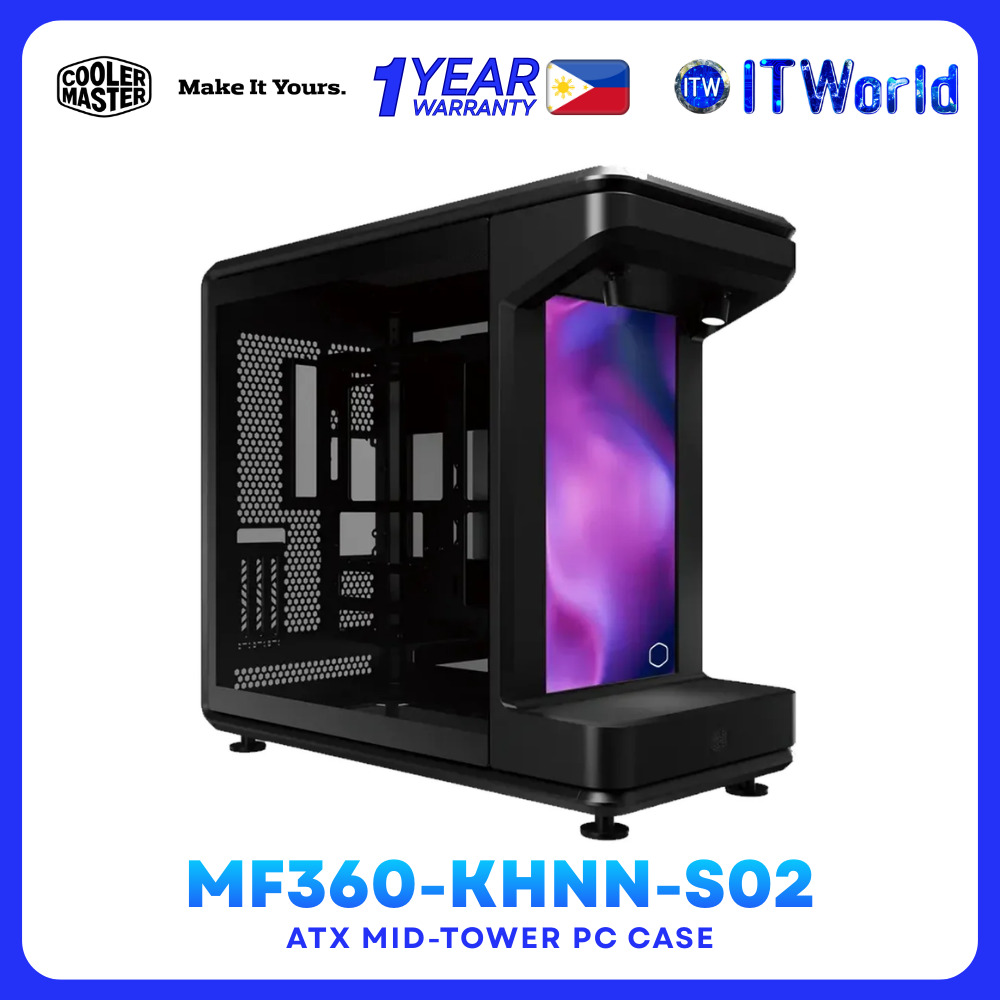

The Cooler Master MasterFrame 360 Stage LCD 🖥️✨ is a bold mid-tower chassis from the MasterFrame Series, designed for showcase builds with wide hardware support, advanced cooling options, and integrated electronic components.
🧱 Build & Design
🎨 Color: Black
🛠️ Exterior Material: SGCC
🪟 Side Panels: Tempered Glass (Right / Left)
📦 Series: MasterFrame Series
📏 Size: Mid Tower
📐 Dimensions & Volume
• Incl. Protrusions: 549 × 291 × 581 mm
• Excl. Protrusions: 511 × 291 × 581 mm
• Volume (without panel, protrusions & feet): 86 L
• Volume (with panel, protrusions & feet): 93 L
🧩 Compatibility & Expansion
🖥️ Motherboard Support: Mini-ITX / Micro-ATX / ATX / BTF (ATX)
🔋 Power Supply Support: ATX
🔩 PCI Expansion Slots: 3.5
💾 Drive Bay Support:
• 3.5": 0
• 2.5" / 3.5": 1× HDD or 2× SSD
• Preinstalled Drive Bay: 1× HDD or 2× SSD
🌬️ Cooling & Fan Support
🌀 Fan Support – Top:
• 6×120mm / 2×140mm / 2×180mm / 2×200mm
🌀 Fan Support – Bottom:
• 6×120mm / 2×140mm / 2×180mm / 2×200mm
💧 Radiator Support:
• Top: 120 / 140 / 240 / 280 / 360 mm (Max thickness 75mm)
• Bottom: 120 / 140 / 240 / 280 / 360 mm (Max thickness 75mm)
🧹 Dust Filters: Removable Mesh Only
🔌 I/O Panel
⚡ USB Ports:
• 2× USB 3.2 Gen 1 Type-A (5G)
• 1× USB 4.0 Gen 2×2 Type-C (20G)
🎧 Audio:
• 1× 3.5mm Headset Jack (Audio + Mic)
✨ Included Electronic Components
🔌 PCI-e 5.0 Riser: 1×
🌈 ARGB Spotlight: 2×
🧸 Maximum Front Collectibles Display:
• 328 × 290 × 110 mm
🔧 DIY Tank & Pump Support: Yes (Left Side)
🧰 Toolbox: Yes
📏 Clearance & Layout
🧠 CPU Cooler Clearance: 145 mm
🎮 Graphics Card Clearance: 430 mm
🔋 Power Supply Clearance: 210 mm
🧵 Cable Routing Space: 110 mm behind motherboard tray
