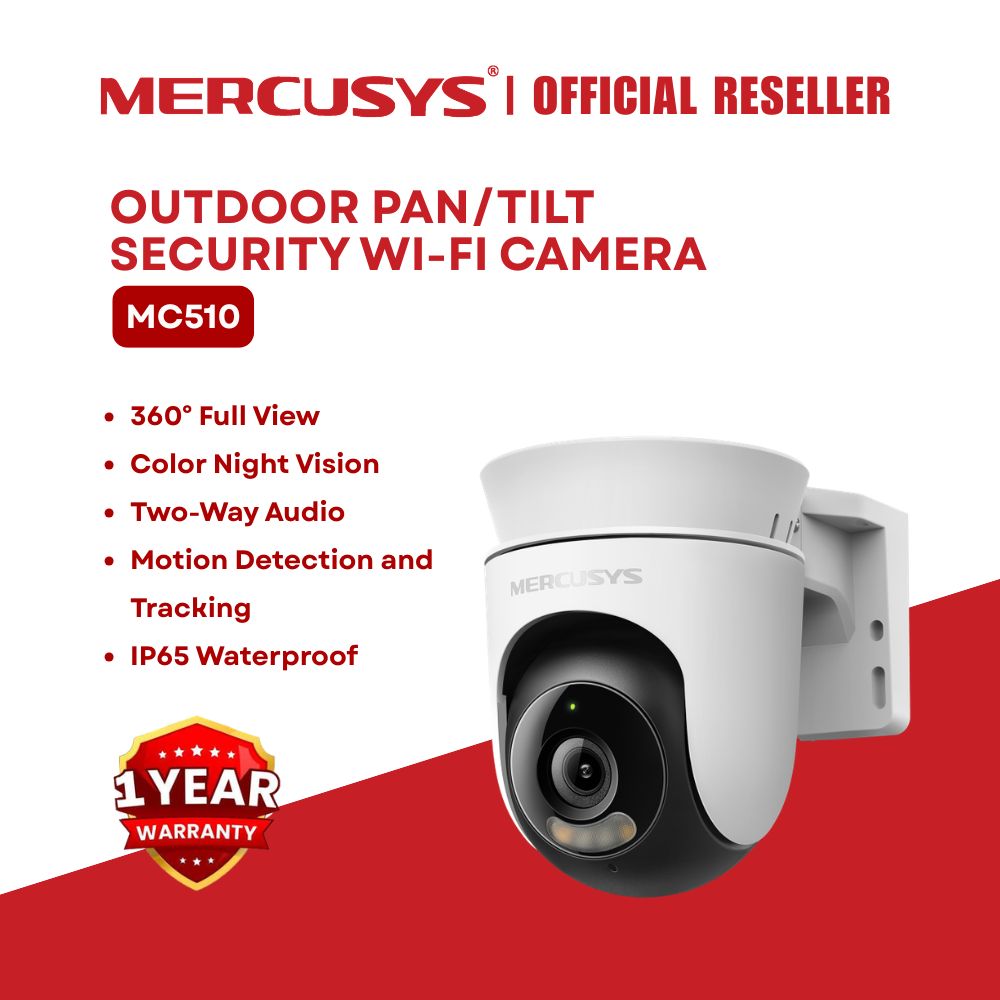

Mercusys MC510 Outdoor Pan/Tilt Color Night Vision Two-Way Audio Security Wi-Fi Camera
Protect your home or business with the Mercusys MC510 Outdoor Pan/Tilt Security Wi-Fi Camera, featuring 2K QHD (3MP) resolution, 360° panoramic coverage, intelligent AI detection, and vibrant Color Night Vision for reliable 24/7 surveillance.
Product Highlights
2K QHD (3MP) Resolution
Crystal-clear video with up to 2304 × 1296 resolution for sharp and detailed monitoring.
360° Pan & Wide Tilt Coverage
Mechanical Pan: 340° (360° coverage)
Mechanical Tilt: 90° (130° coverage)
Covers more areas with fewer blind spots.
Color Night Vision
Delivers vivid full-color images at night.
Includes 850nm IR LEDs with up to 29.9m (98ft) night vision range.
Smart AI Detection & Tracking
Motion Detection
Person Detection
Smart Motion & Person Tracking
Customizable Activity Zones for more relevant alerts.
10.8× Digital Zoom
Zoom in to inspect important details directly from the live view.
Two-Way Audio
Built-in microphone and speaker with Noise Cancellation for clear communication.
Built-in 88dB Siren
Audible alarm to help deter unwanted visitors.
Flexible Storage
Supports MicroSD cards up to 512GB
Compatible with MERCUSYS Camera Care Cloud Storage (Subscription Required)
Network Features
Wi-Fi Connectivity (802.11b/g/n)
RTSP Support
ONVIF Compatible
Privacy & Security
Physical Lens Shield for added privacy.
128-bit AES Encryption with SSL/TLS.
WPA/WPA2-PSK Security.
Built for Outdoor Use
️ IP65 Weatherproof design for rain, dust, and snow.
️ Supports Wall, Ceiling, and Pole Mounting.
Smart Home Compatible
Works with Google Assistant and Amazon Alexa.
Camera Specifications
Image Sensor: 1/3" Progressive Scan CMOS (Non-Starlight)
Lens
4mm Focal Length
F2.0 Aperture
87° Diagonal FOV
74° Horizontal FOV
40° Vertical FOV
Video
Resolution: 2304 × 1296
Frame Rate: 15/20/25/30 fps (15 fps default)
Video Compression: H.264
3DNR
WDR
Live View Supported
Interface
1× Reset Button
1× MicroSD Card Slot
Power
⚡ 9V DC Power Adapter
⚡ Input: 100–240V AC, 50/60Hz
⚡ Output: 9V / 0.85A
Operating Conditions
️ Operating Temperature: -20°C to 50°C
️ Storage Temperature: -40°C to 60°C
️ Operating Humidity: 10%–90% RH
Camera Dimensions
141.5 × 93 × 122 mm (W × D × H)
Package Includes
✔️ Mercusys MC510 Outdoor Pan/Tilt Wi-Fi Camera
✔️ Power Adapter
✔️ Mounting Template Sticker
✔️ Mounting Bracket
✔️ Mounting Screws (4)
✔️ Bracket Screws (2)
✔️ Mounting Anchors (4)
✔️ Waterproof Foam Gasket
✔️ Quick Start Guide
