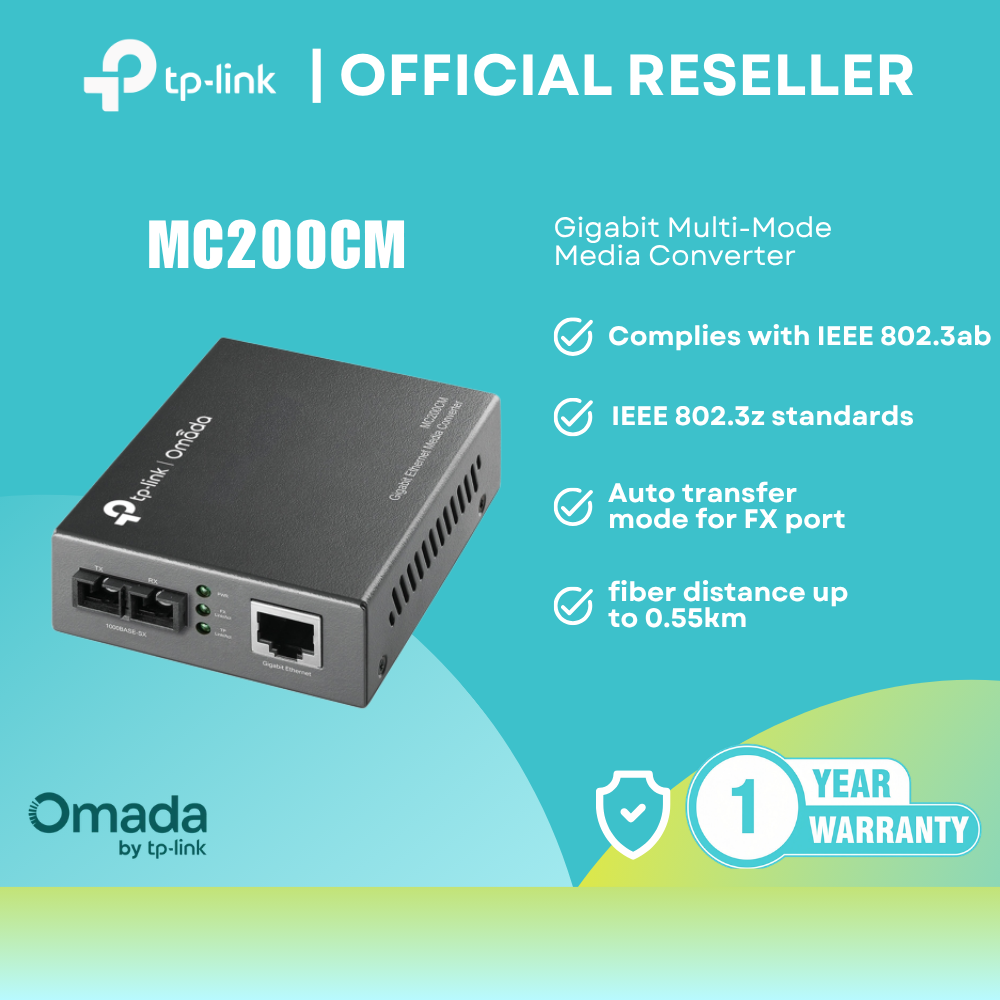

Upgrade your network with the TP-Link MC200CM Gigabit Multi-Mode Media Converter — designed to extend fiber connectivity while maintaining high-speed and stable performance. 🔌📡
🌟 Key Features
⚙️ Standards Compliant
Complies with IEEE 802.3ab, IEEE 802.3z, and IEEE 802.3x
🔄 Flexible FX Port Configuration
Supports Force / Auto transfer mode switching
📡 Extended Fiber Distance
• Up to 0.55 km fiber extension
• 0.5 km using 50/125µm fiber
• 0.22 km using 62.5/125µm fiber
🔌 Gigabit Connectivity
• 1× 1000M SC/UPC fiber port
• 1× 1000M RJ45 port (Auto MDI/MDIX)
⚙️ Specifications
🔹 Network & Media
• Wavelength: 850 nm
• 1000BASE-FX: Multi-mode fiber
• 1000BASE-SX: Multi-mode fiber
• 1000BASE-T:
- UTP Cat 5/5e (max 100m)
- EIA/TIA-568 100Ω STP (max 100m)
🔹 Performance
• Full Duplex Flow Control (IEEE 802.3x)
🔹 Power
• External Power Adapter
• Max Power Consumption: 5.5W
🔹 Indicators
• LED: PWR, LINK, RX
🔹 Safety & Certification
• FCC, CE, RoHS
📦 Package Contents
• MC200CM Media Converter
• Power Adapter
• Installation Guide
🌡️ Environment
• Operating Temperature: 0℃ to 40℃
• Storage Temperature: -40℃ to 70℃
• Operating Humidity: 10%–90% non-condensing
• Storage Humidity: 5%–90% non-condensing
