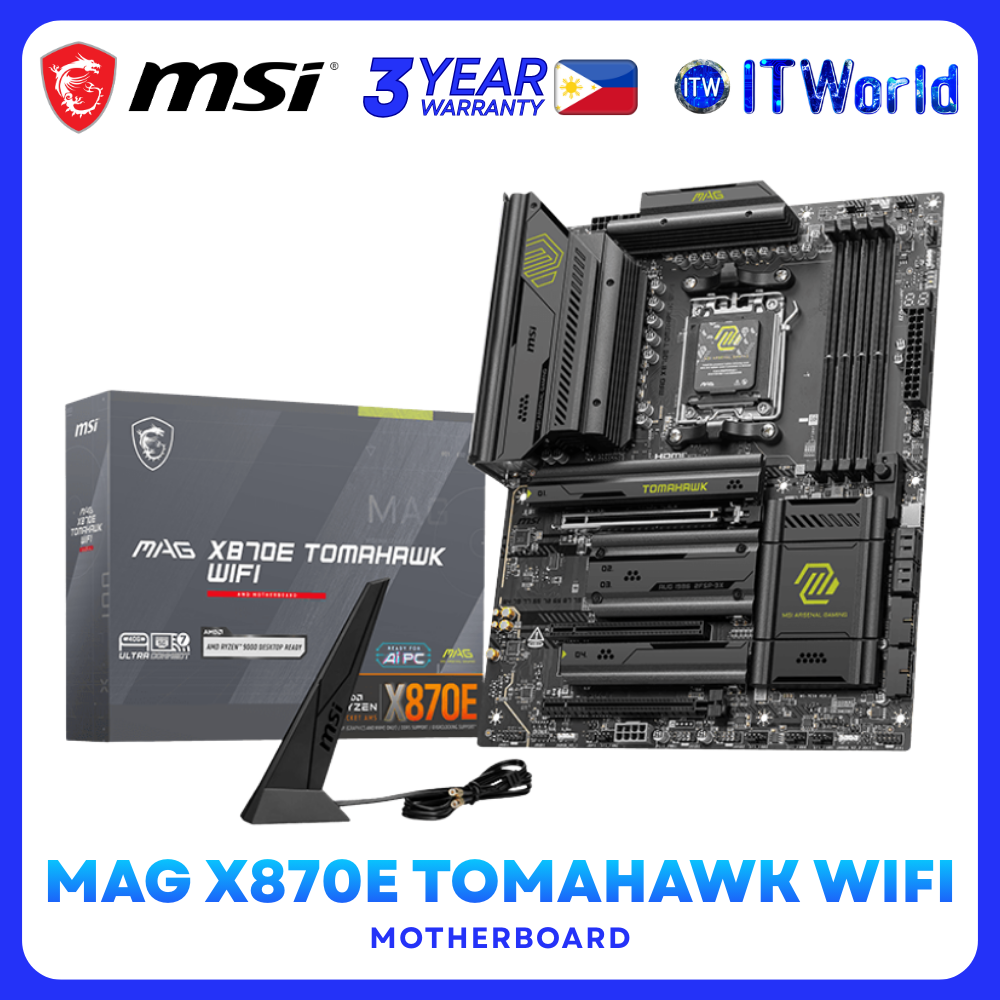

🛡️ MSI MAG X870E TOMAHAWK WIFI Motherboard (AM5)
Built for gamers and PC builders who demand stability, durability, and next-gen performance 💪🎮. The MAG X870E TOMAHAWK WIFI is ready for the battlefield with Wi-Fi 7, 5G LAN, USB4 40Gbps, PCIe 5.0, and full support for AMD Ryzen™ 9000 / 8000 / 7000 series processors.
🚀 Key Highlights
⚡ AMD X870E Chipset | AM5 Socket
📶 True Wi-Fi 7 + Bluetooth 5.4
🌐 5G LAN (Realtek 8126) for ultra-fast networking
🧠 DDR5 Memory Support up to 256GB (OC up to 8400+ MT/s*)
🎮 PCIe 5.0 x16 Slot for next-gen GPUs
💾 4× M.2 Slots (PCIe 5.0 & 4.0) + 4× SATA 6Gb/s
🔌 USB4 40Gbps Type-C for blazing-fast connectivity
🛠️ EZ DIY Features – Debug LEDs, EZ Digit Debug, DIY-friendly layout
⚙️ Detailed Specifications
Chipset: AMD X870E
CPU Support: AMD Ryzen™ 9000 / 8000 / 7000 Series
Socket: AM5
Memory:
4× DDR5 UDIMM slots
Max Capacity: 256GB
OC Speed: DDR5 8400+ MT/s (CPU dependent)
Supports AMD EXPO™, Dual-Channel
Non-ECC, Unbuffered
Expansion Slots:
PCI_E1: PCIe 5.0 x16 (from CPU)
PCI_E2: PCIe 3.0 x1
PCI_E3: PCIe 4.0 x4
Graphics Output:
1× HDMI™ 2.1 (up to 8K@60Hz)*
2× USB-C DisplayPort (DP 1.4, up to 4K@60Hz)*
*Requires CPU with integrated graphics
Storage:
4× M.2 (PCIe 5.0 / 4.0)
4× SATA 6Gb/s
RAID 0/1/5/10 support (CPU dependent)
USB Ports:
Rear: USB 2.0, USB 5Gbps, USB 10Gbps, USB4 40Gbps Type-C
Front: USB 5Gbps Type-A, USB 20Gbps Type-C
Audio:
Realtek® ALC4080
7.1-Channel USB High-Performance Audio
Wireless:
📡 Wi-Fi 7 (802.11 a/b/g/n/ac/ax/be)
🔵 Bluetooth® 5.4
Compatibility:
✅ Desktop PC only (ATX form factor)
