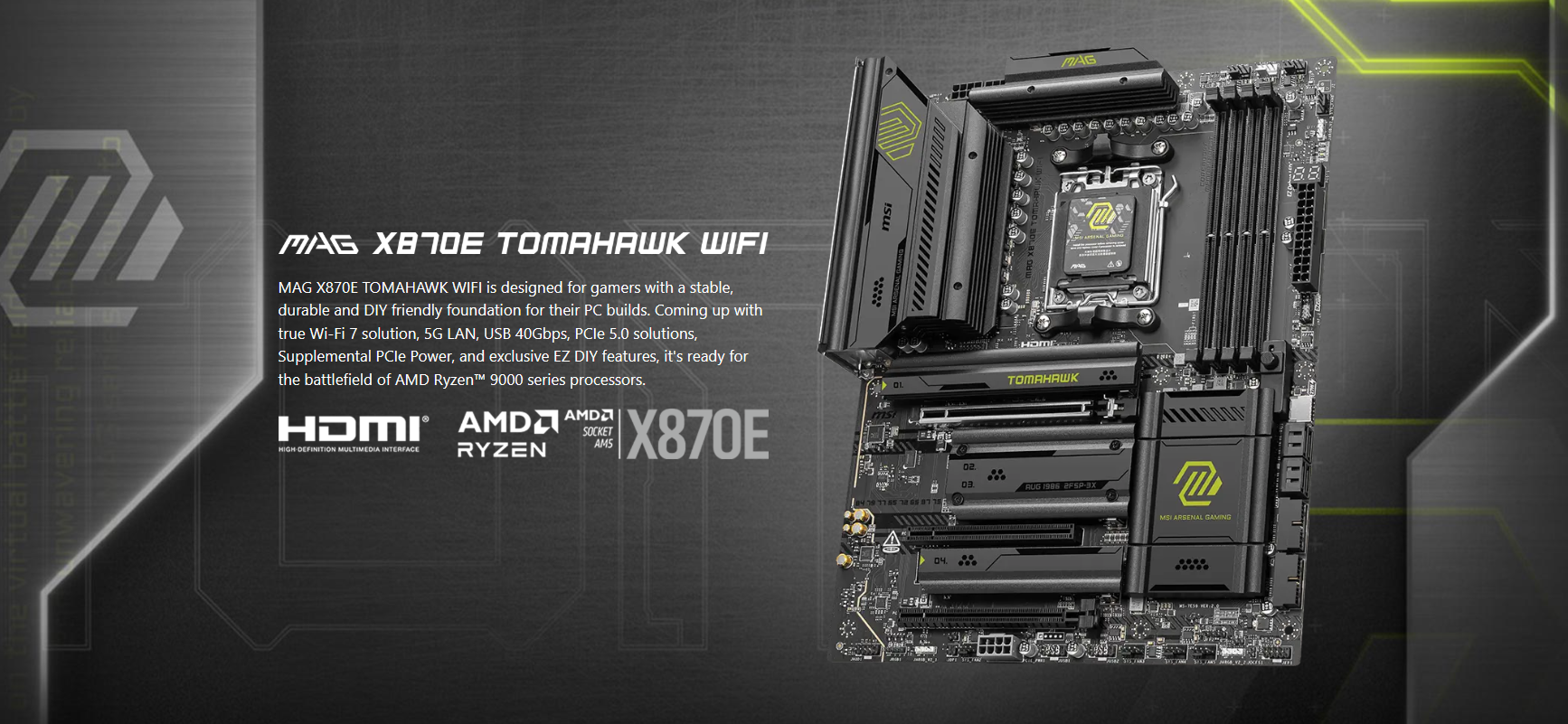

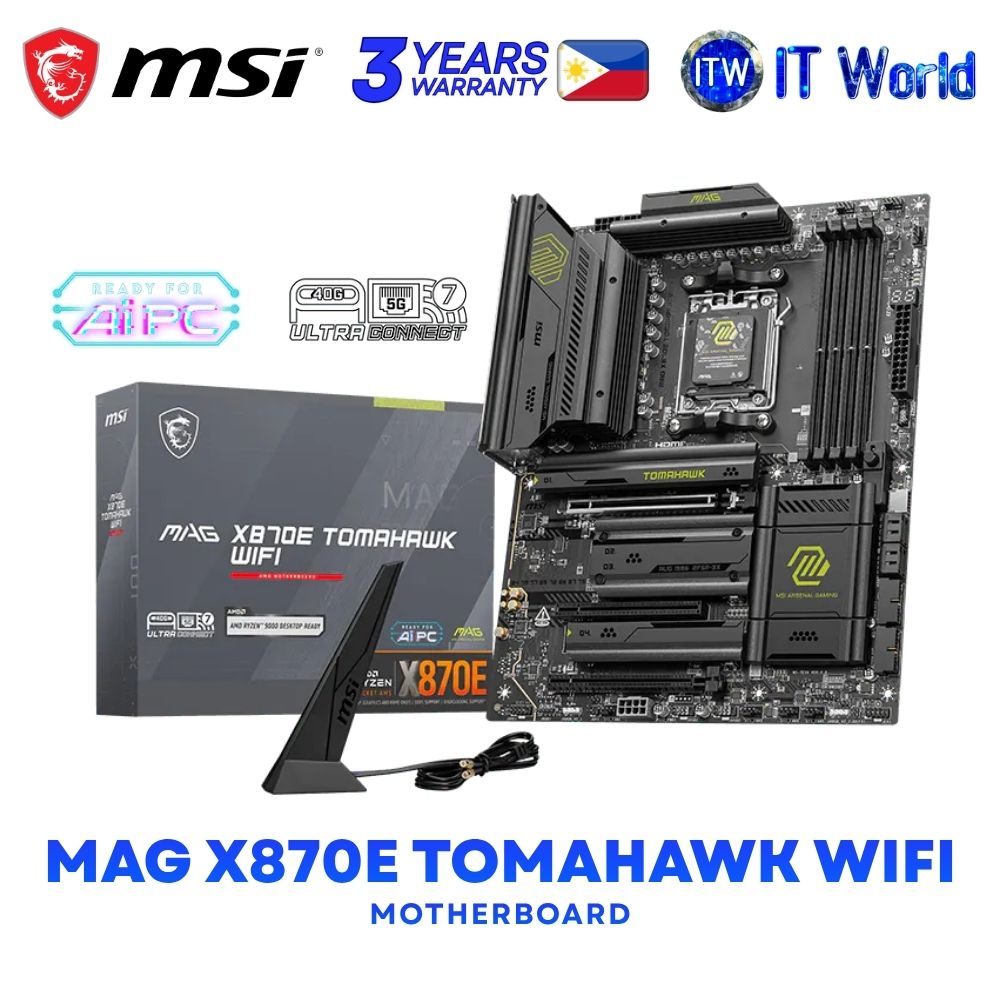

MSI MAG X870E Tomahawk Wifi ATX AM5 DDR5 AMD X870E Chipset Motherboard
🚀 Power up your next-generation PC build with the MSI MAG X870E Tomahawk WiFi, designed for high-performance computing, gaming, and professional workloads. Featuring the AMD X870E chipset, AM5 socket, DDR5 memory support, PCIe 5.0, Wi-Fi 7, and 5G LAN, this ATX motherboard delivers advanced connectivity, efficient cooling, and flexible expansion for compatible AMD Ryzen desktop processors.
Key Features & Specifications
Processor Compatibility
🖥️ Supports AMD Ryzen™ 9000, 8000, and 7000 Series Desktop Processors
🖥️ AMD X870E Chipset
🖥️ AM5 CPU Socket
🖥️ ATX Form Factor
High-Speed DDR5 Memory
🚀 4 × DDR5 UDIMM slots
🚀 Maximum memory capacity: 256GB
🚀 Dual-channel memory architecture
🚀 Supports memory speeds up to 8400+ MT/s (OC), depending on CPU and memory configuration
🚀 Supports AMD EXPO™ and memory overclocking
🚀 Supports non-ECC, unbuffered memory
Advanced Power Delivery
⚡ 14+2+1 Duet Rail Power System
⚡ Dual 8-pin CPU power connectors
⚡ Core Boost and Memory Boost
⚡ 8-layer PCB with 2oz thickened copper
Frozr Guard Cooling
❄️ Extended heatsink design
❄️ MOSFET thermal pads rated at 7W/mK
❄️ Additional choke thermal pads
❄️ EZ M.2 Shield Frozr II for M.2 SSD cooling
PCIe & Storage Expansion
🎮 3 × PCIe x16 slots
🎮 PCIe 5.0 x16 support, depending on the installed processor
🎮 4 × M.2 slots for NVMe SSDs
🎮 Supports PCIe 5.0 x4 and PCIe 4.0 x4 M.2 storage, depending on the slot and CPU
🎮 4 × SATA 6Gb/s ports
🎮 Supports RAID configurations for SATA and M.2 NVMe storage
Next-Generation Connectivity
🌐 Wi-Fi 7 wireless networking
🌐 Bluetooth® 5.4
🌐 1 × Realtek® 5G LAN
🌐 2 × USB 40Gbps Type-C ports on the rear panel
🌐 1 × USB 20Gbps Type-C port on the front panel
🌐 Additional USB 10Gbps, 5Gbps, and USB 2.0 ports
🌐 EZ Antenna for convenient wireless connectivity
Display Outputs
🖥️ 1 × HDMI™ 2.1 FRL, supporting up to 8K at 60Hz
🖥️ 2 × Type-C DisplayPort outputs through USB4, supporting DisplayPort 1.4 with HBR3 at up to 4K 60Hz
🖥️ Display output availability depends on a processor with integrated graphics
Immersive Audio
🎧 Realtek® ALC4080 audio codec
🎧 7.1-channel USB high-performance audio
🎧 Up to 32-bit/384kHz front-panel playback
🎧 S/PDIF output support
EZ DIY Features
🛠️ EZ M.2 Shield Frozr II
🛠️ EZ M.2 Clip II
🛠️ EZ PCIe Release
🛠️ EZ Antenna
🛠️ EZ Debug LED and EZ Digit Debug LED
🛠️ Flash BIOS button and Clear CMOS button
Internal Connections
🌈 CPU fan and combo pump/system fan headers
🌈 6 × system fan headers
🌈 Addressable V2 RGB LED and RGB LED connectors
🌈 TPM 2.0 header
🌈 Front-panel and front-audio connectors
Operating System
💻 Supports Windows® 11 64-bit
Physical Specifications
📐 Form Factor: ATX
📐 Dimensions: 243.84 × 304.8 mm
