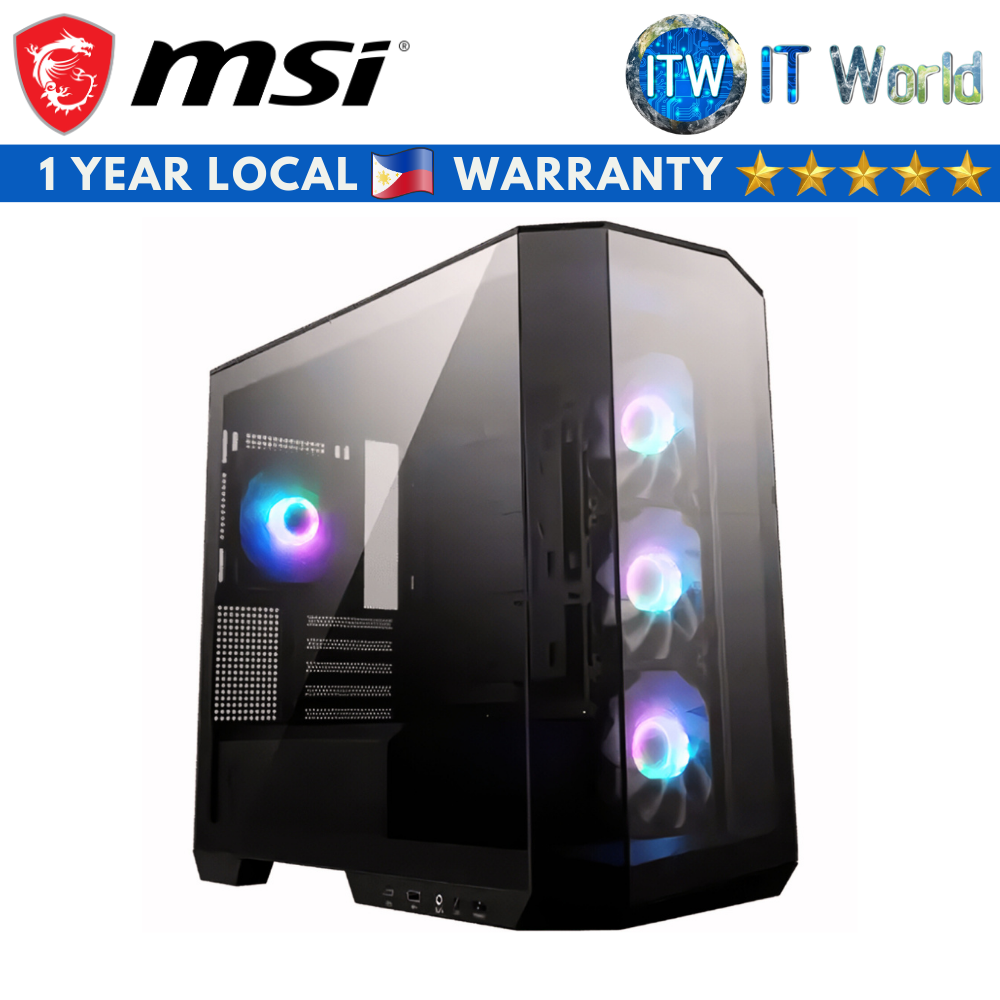

Product Name: Itw | MSI MAG Pano M100R PZ Micro-ATX Tower Tempered Glass PC Case (Black | White)
MAG PANO M100R PZ / WHITE
* Micro-ATX Back-connect motherboard supported.
* Supports up to 360 mm AIO liquid cooler on the top.
* 270-degree panoramic tempered glass.
* Supports up to 10 x 120 mm system fans.
* Built-in 1-to-4 ARGB-PWM fans and control board, providing striking lighting and vivid lighting effects.
* The Magnetic Dust Filter at the bottom being easily removed for cleaning.
* DIY Friendly cables make your DIY process easier and create more possibilities to your system.
Specification
* PRODUCT NAME: MAG PANO M100R PZ / WHITE
* FORM FACTOR: Micro- ATX Tower
* I/O PORTS
> 1 x USB 3.2 Gen 1 Type-A
> 1 x USB 3.2 Gen 2x2 Type-C
> 1 x Audio-Out / Mic-in
> 1 x LED Switch Button
> 1 x Power Button
* DRIVE MOUNT SUPPORT
> 1 x 2.5”
> 1 x 2.5”/3.5” combo (up to 2 x 2.5” or 1 x 2.5”+ 1 x 3.5”)
* CASE EXPANSION SLOTS: 5
* MAXIMUM PSU LENGTH: 200 mm / 7.87 inches
* MAXIMUM GPU LENGTH
> 390 mm / 15.35 inches
> *Support horizontal installation only.
* MAXIMUM CPU COOLER LENGTH: 175 mm / 6.9 inches
* LIGHTING
> Side: 3 x ARGB Fan (Reverse-blade)
> Rear: 1 x ARGB Fan
* POWER SUPPLY: ATX
* FAN SIZE SUPPORT
> Top: 3 x 120 mm / 2 x 140 mm
> Front: NA
> Rear: 1 x 120 mm / 1 x 140 mm
> Side: 3 x 120 mm
> Bottom: 1 x 120 mm
> PSU Shroud: 2 x 120 mm
* PRE-INSTALL FAN
> Side: 3 x 120 mm
> Rear: 1 x 120 mm
* RADIATOR LAYOUT
> Top: 120 / 240 / 360 mm
> Front: NA
> Rear: 120 / 140 mm
> Side: NA
> Bottom: NA
* SUPPORT MB FORM FACTOR: M-ATX (Back-connect supported) / ITX
* DIMENSION: 440 x 235 x 405 mm / 17.32 x 9.25 x 15.94 inches
* WEIGHT: TBD
* GROSS WEIGHT: TBD
