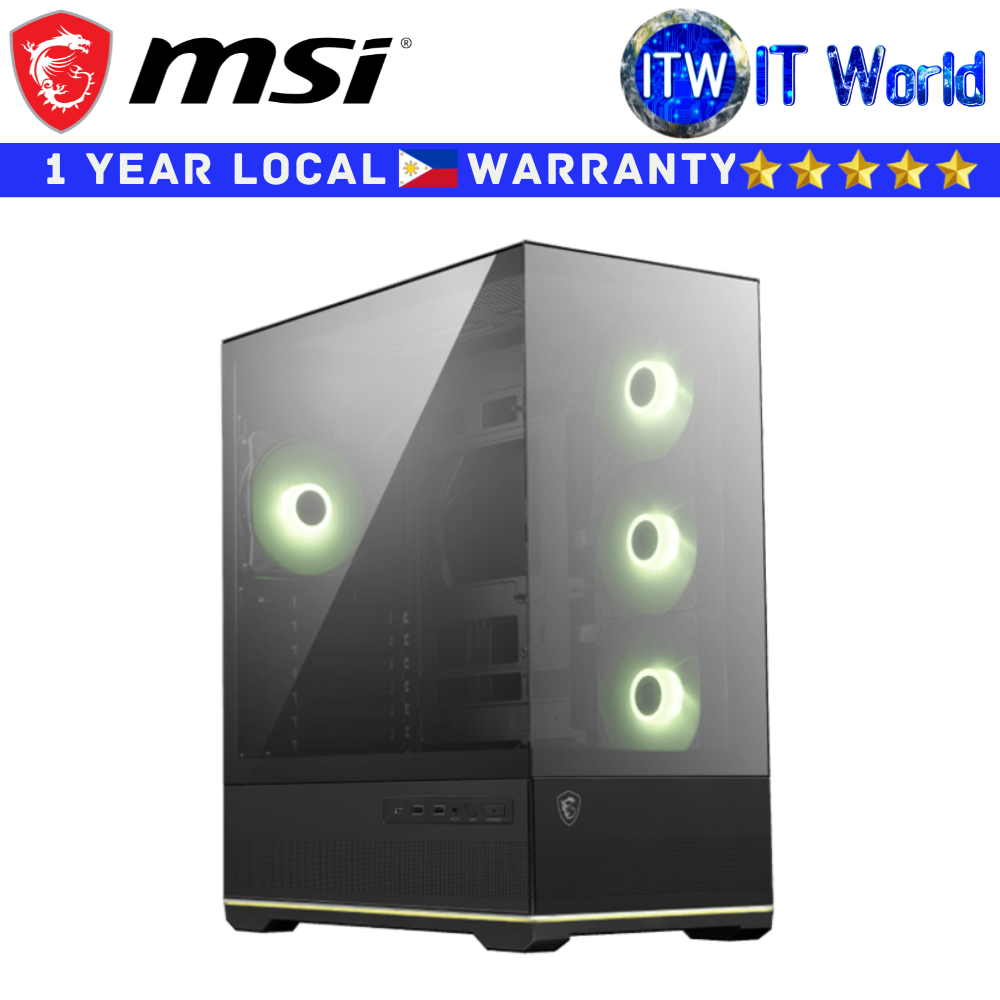

Product Name: Itw | MSI Computer PC Case MAG Pano 110R PZ Black Mid-Tower Tempered Glass Chassis
MAG PANO 110R PZ

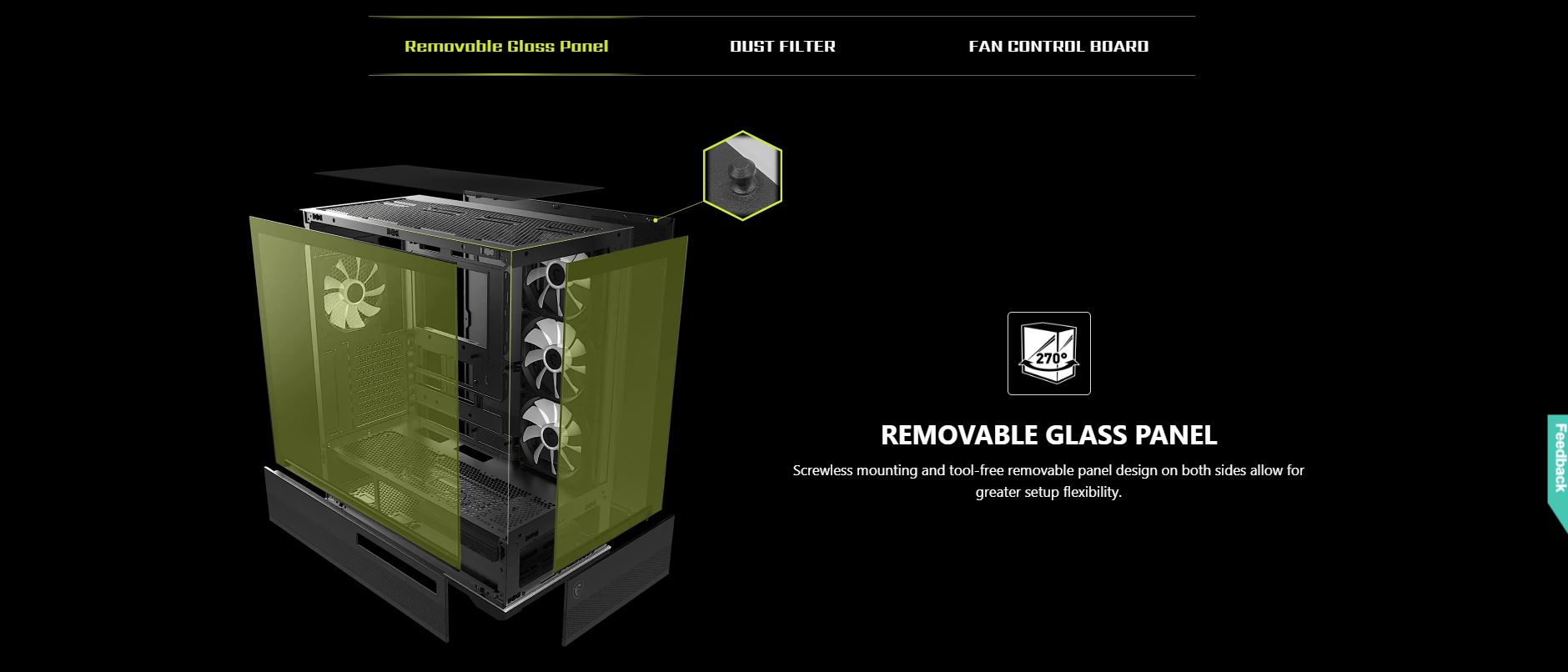

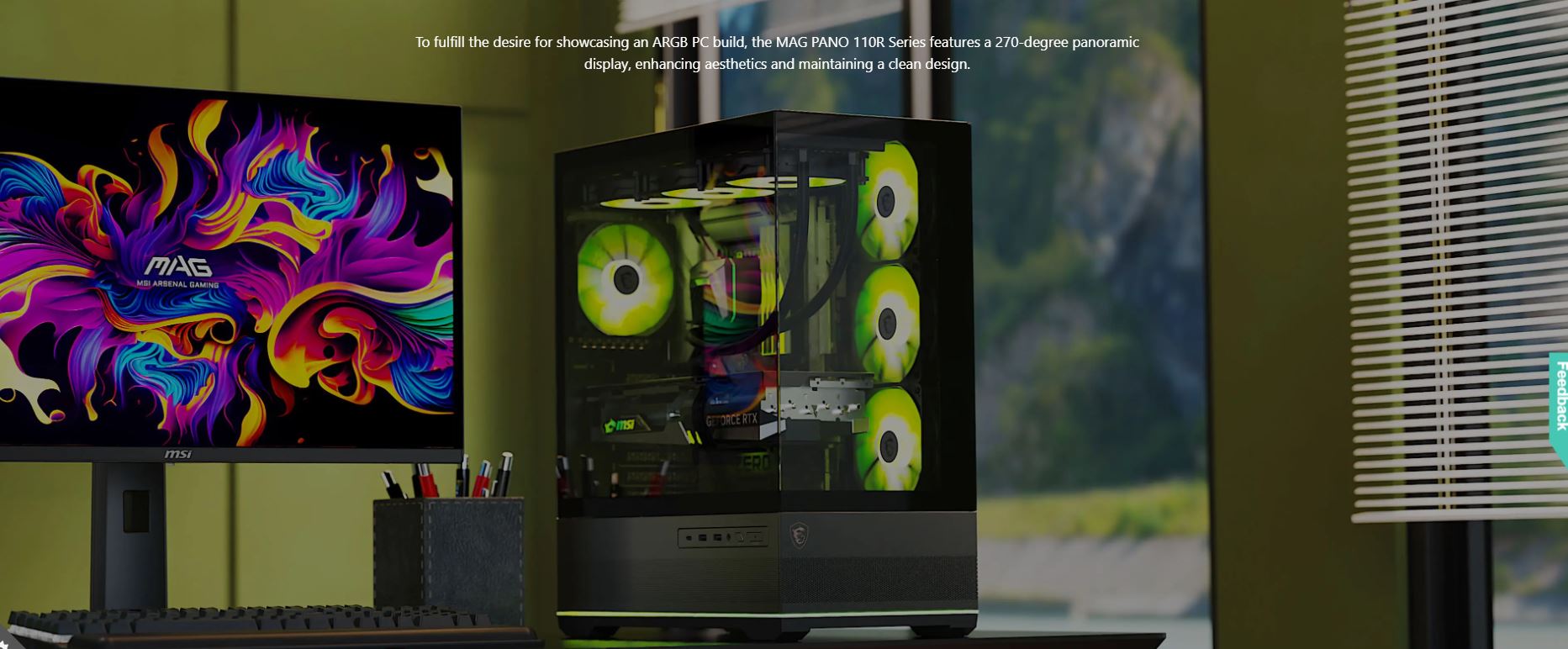

> 270-Degree Display: The chassis features a 270-degree panoramic design with tempered glass, providing an expansive view to showcase detailed components.
> Measurements: Supports multiple motherboard sizes, including regular ATX, Micro-ATX, Mini-ITX and back-connect ATX and Micro-ATX, allowing users to customize their PC setup.
> Pre-build with Reverse Blades Fan: Pre-installed reverse blade fans on the side ensure an unobstructed display of the ARGB fan’s lighting effects, free from interference by fan frames.

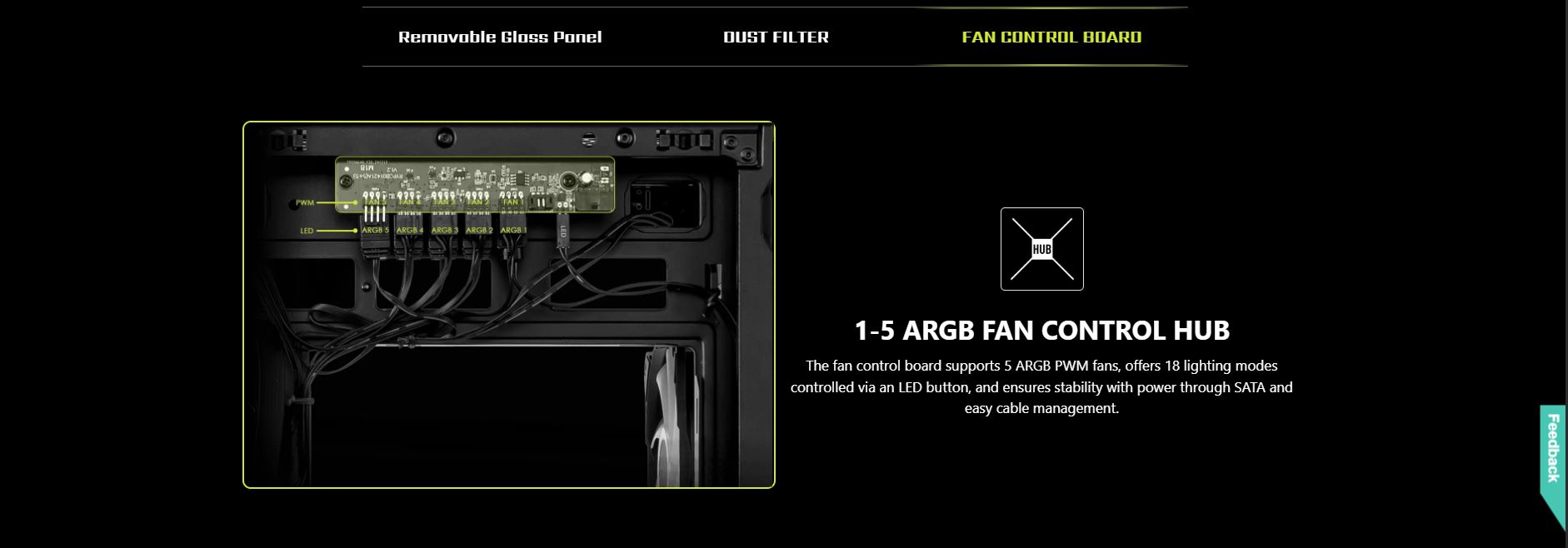

> ARGB-Fan Control Board: The 1-to-5 ARGB fan control board supports up to 5 ARGB fans, allowing users to adjust 18 ARGB lighting effects with a single LED switch button
> Upgrade Airflow Layout: Supports up to 10 fans, a 360mm radiator on top and a 120mm radiator at rear. The lower chamber, surrounded by vents, further enhances heat dissipation for optimal performance.
Specifications
* Product Name: MAG PANO 110R PZ
* Case Form Factor: Mid-Tower

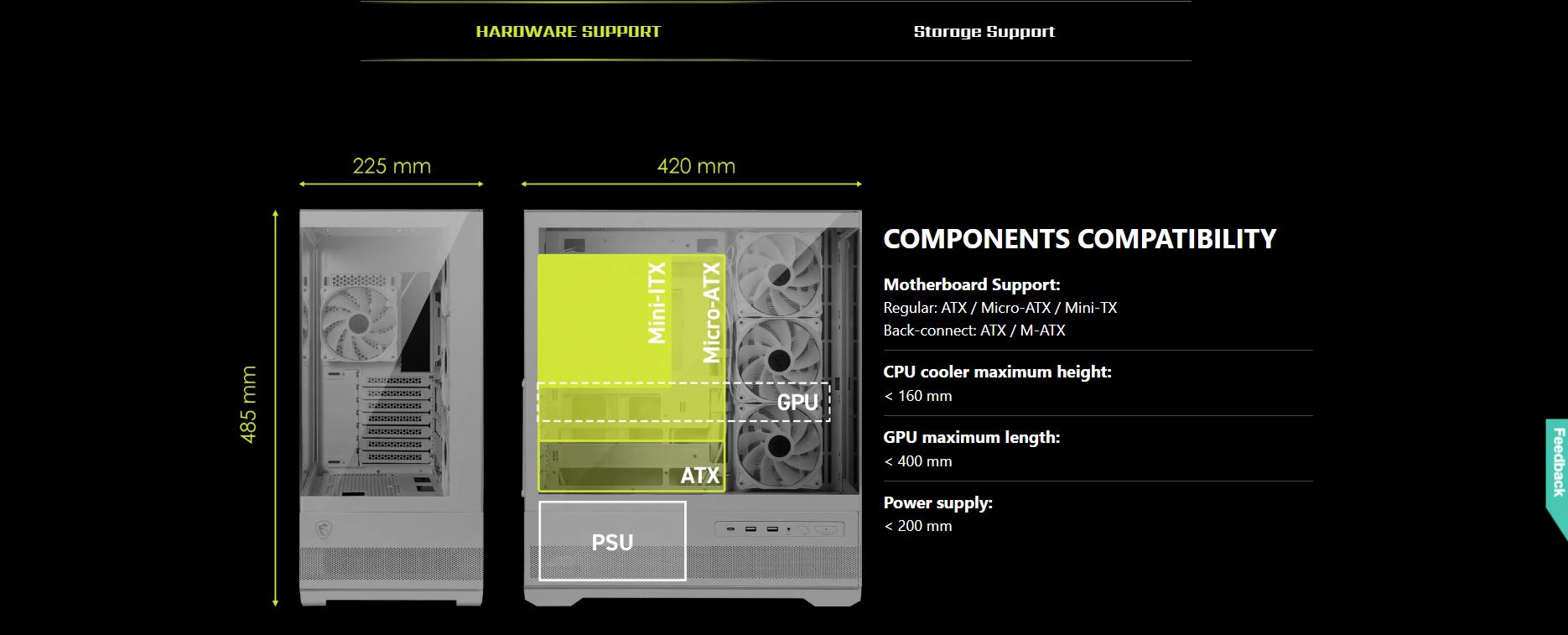

* Motherboard Form Factor Support
> Regular: ATX / Micro-ATX / Mini-ITX
> Back-connect: ATX / Micro-ATX

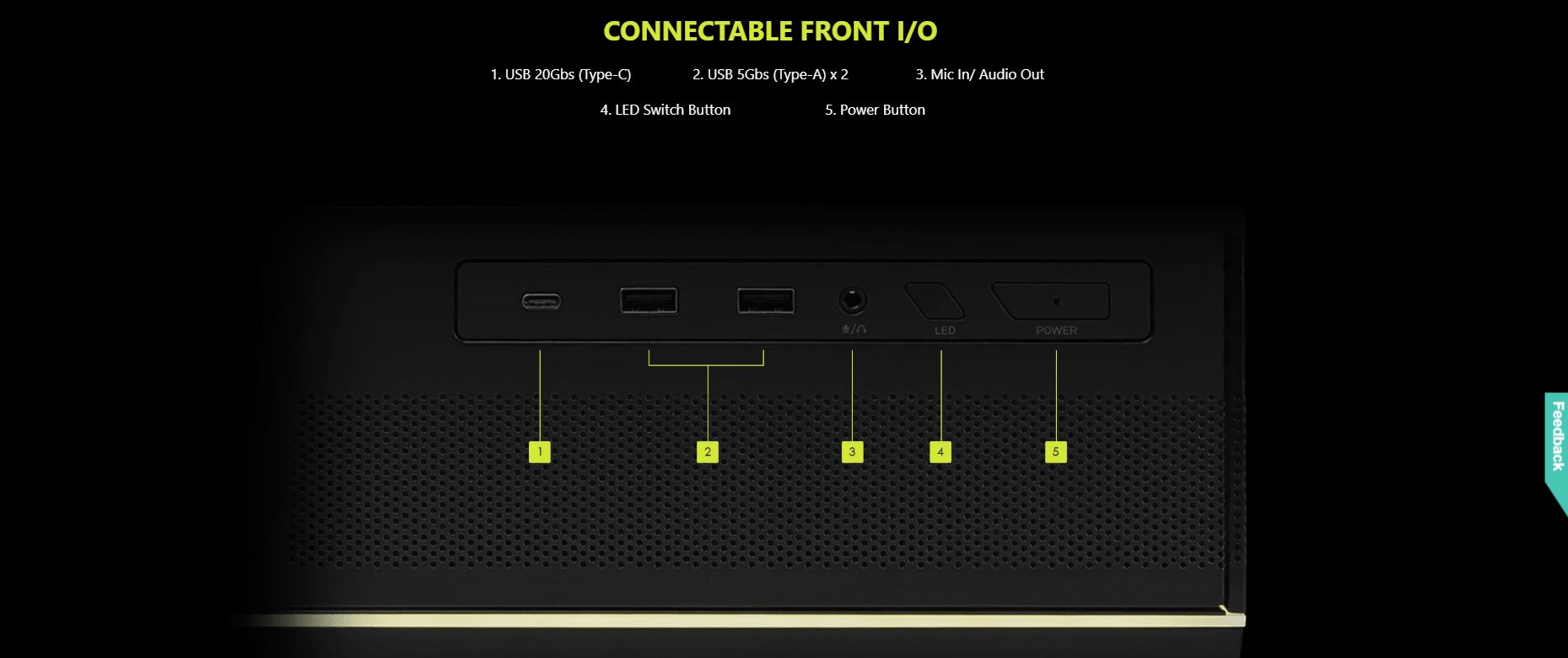

* I/O Ports
> 1 x USB 20Gbs (Type-C)
> 2 x USB 5Gbs (Type-A)
> 1 x Audio-Out / Mic-in
> 1 x LED Button
> 1 x Power Button

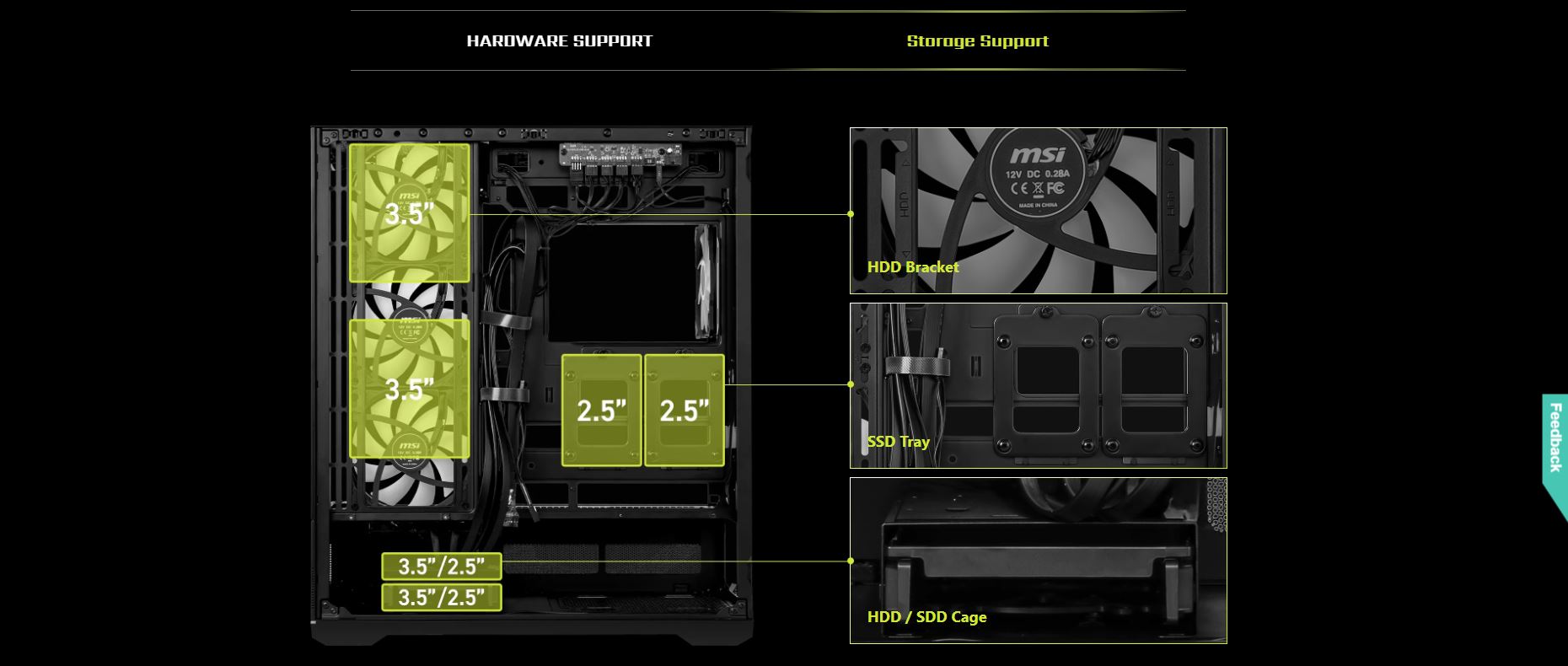

* Drive Mount Support
> 2 x 2.5“
> 2 x 3.5“
> 2 x 2.5"/3.5" combo
* Expansion Slots: 7
* Maximum GPU Length: 400 mm / 15.75 inches
* Maximum CPU Cooler Height: 160 mm / 6.30 inches
* Power Supply Support: ATX
* Maximum PSU Length: 200 mm / 7.87 inches

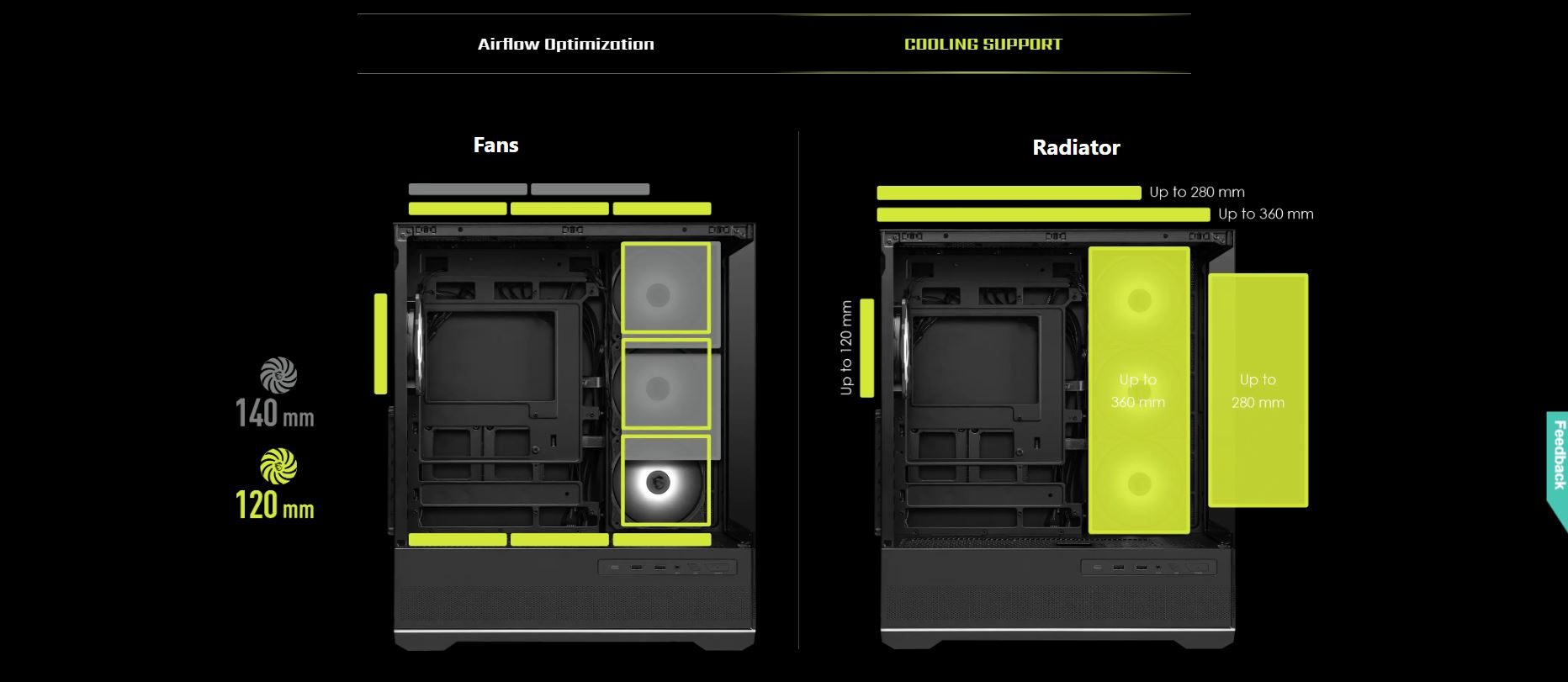

* Fan Size Support
> Top: 3 x 120 mm / 2 x 140 mm
> Front: NA
> Rear: 1 x 120 mm
> Side: 3 x 120 mm / 2 x 140 mm
> Bottom: 3 x 120 mm (Above the power shroud)
* Pre-installed Fan Size
> Side: 3 x 120 mm
> Rear: 1 x 120 mm
* Pre-installed Fan Type
> Side: 3 x ARGB Fan (Reverse Blades Fan)
> Rear: 1 x ARGB Fan
* Radiator Size Support
> Top: 120 / 140 / 240 / 280 / 360 mm
> Front: NA
> Rear: 120 mm
> Side: NA
> Bottom: NA
* Dimensions (DxWxH): 420 x 225 x 485 mm / 16.54 x 8.86 x 19.09 inches
* Connection
> 1 x USB 20Gbs (Type-C)
> 2 x USB 5Gbs (Type-A)
> Mic In/ Audio Out
> LED Button
> Power Button
