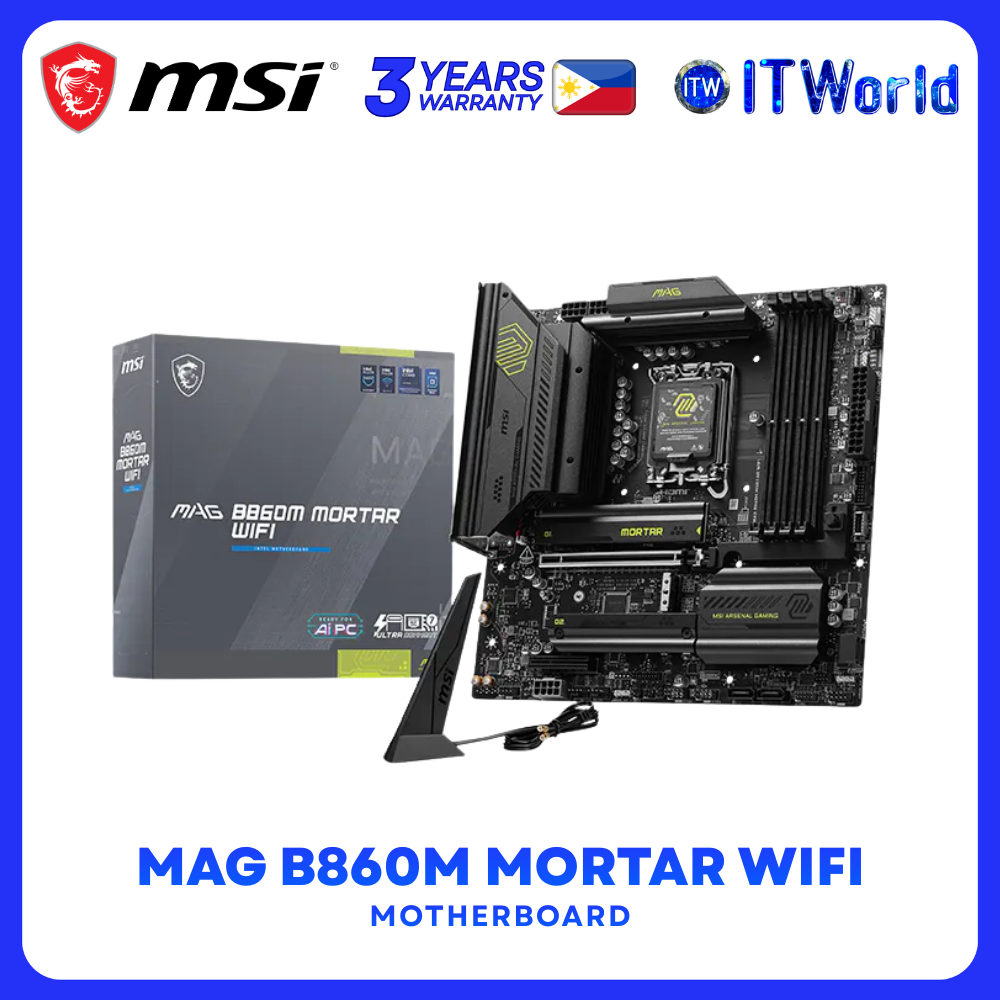

Engineered for gamers who demand stability, durability, and DIY-friendly performance, the MAG B860M MORTAR WIFI is packed with next-gen connectivity, PCIe 5.0 power, Killer Wi-Fi 7, and Thunderbolt™ 4—ready for the battlefield of Intel® Core™ Ultra processors. ⚔️🔥
🔹 Chipset & CPU Support
🧠 Intel® B860 Chipset
🔌 LGA 1851 socket
🚀 Supports Intel® Core™ Ultra Processors (Series 2)
🔹 Memory Performance
💾 4× DDR5 UDIMM (Max 256GB)
⚡ 9200 – 6400 (OC) MT/s / 6400 – 4800 (JEDEC) MT/s
🔥 Intel® XMP 3.0 & Memory Overclocking
🧩 Dual-Controller Dual-Channel mode
📌 Supports Non-ECC, Un-buffered & CUDIMM
📍 Single-sided latch DIMM slots
🔹 Graphics & Display Output (Requires CPU with integrated graphics)
🎮 HDMI™ 2.1 – Up to 8K 60Hz
🖥️ DisplayPort 1.4 – Up to 4K 60Hz
⚡ Type-C DisplayPort
🚀 Thunderbolt™ 4 Type-C – Up to 4K 120Hz / 8K 60Hz
🔹 Expansion Slots
🛡️ 1× PCIe 5.0 x16 (From CPU)
⚙️ 1× PCIe 4.0 x4 (From Chipset)
🔹 Storage Options
🚀 3× M.2 (PCIe 5.0 & 4.0 support)
💽 4× SATA 6G
🔄 RAID 0 / 1 / 5 / 10 for SATA
🔹 Audio
🎧 Realtek® ALC897 Codec
🔊 7.1-Channel High Definition Audio
✨ S/PDIF output
🔹 Networking & Wireless
🌐 Intel® Killer™ E5000 5Gbps LAN
📡 Intel® Killer™ BE1750x Wi-Fi 7 (Up to 5.8Gbps)
🔵 Bluetooth® 5.4
📶 MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz
🔹 Thunderbolt™ 4 Connectivity
⚡ 40Gbps transfer rate
🔌 USB4 up to 20Gbps
🔋 5V/3A, 15W charging
🖥️ Up to 8K display
🔗 Daisy-chain multiple devices
🔹 USB Ports
🔌 USB 10Gbps Type-C (Front & Rear)
🔌 USB 10Gbps Type-A (Rear)
🔌 USB 5Gbps Type-A (Front)
🔌 USB 2.0 (Front & Rear)
🔹 Internal I/O & Cooling
🧊 CPU fan + Pump/System fan combo
🌪️ 4× System fan headers
🌈 3× Addressable RGB Gen2 + 1× RGB header
🔐 TPM 2.0 support
⚡ Supplemental PCIe 8-pin power
🧩 Thunderbolt5 card connector
🔹 Back Panel Highlights
🔘 Flash BIOS Button & Clear CMOS
🌐 5G LAN & Wi-Fi/Bluetooth
🎧 HD Audio + Optical S/PDIF
⚡ Thunderbolt™ 4 Type-C
🔌 USB 10Gbps Type-A & Type-C
🖥️ HDMI™ & DisplayPort
🔹 EZ DIY & Debug Features
💡 4× EZ Debug LED
🧠 EZ Memory Detection LED
🔹 Form Factor & OS
📏 mATX – 243.84mm × 243.84mm
🪟 Supports Windows® 11 64-bit
