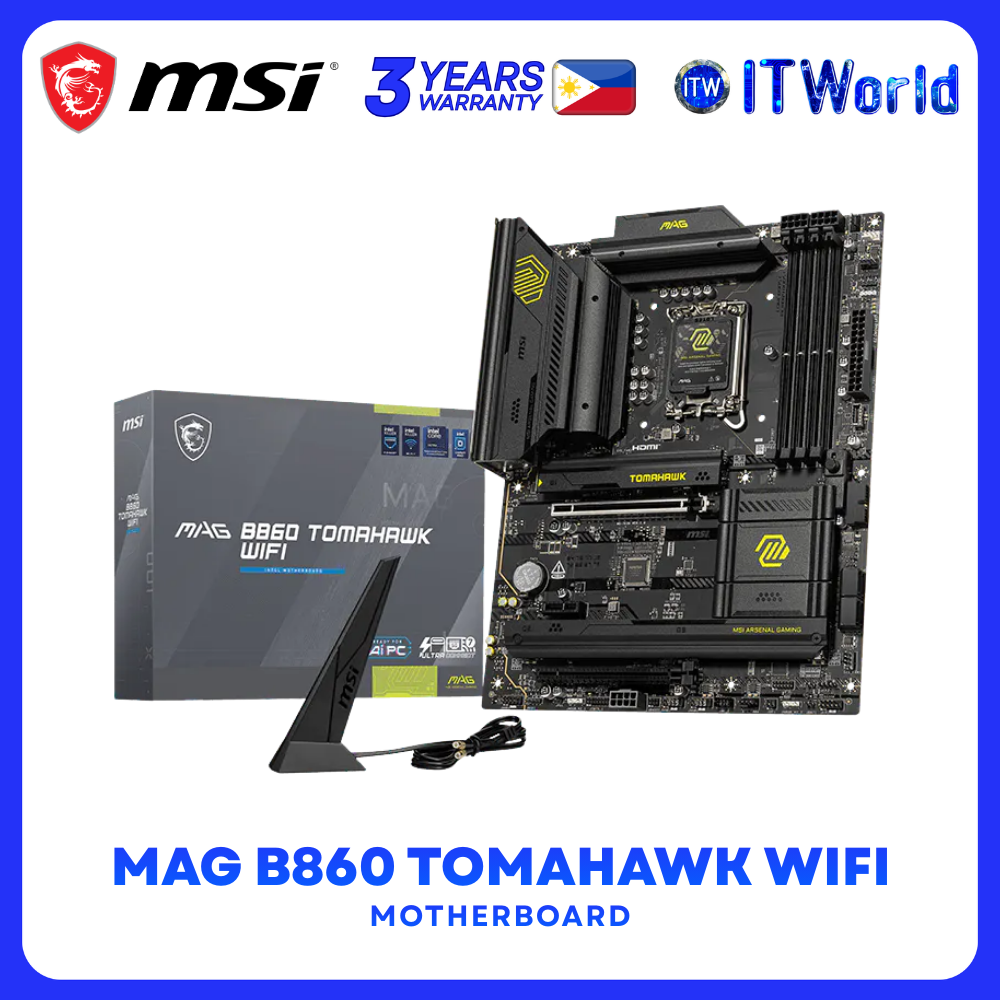

Built for gamers who demand stability, durability, and DIY-friendly features, the MAG B860 TOMAHAWK WIFI delivers next-gen connectivity, PCIe 5.0 performance, and ultra-fast networking for Intel® Core™ Ultra processors. ⚔️🔥
🔹 Chipset & CPU Support
🧠 Intel® B860 Chipset
🔌 LGA 1851 socket
🚀 Supports Intel® Core™ Ultra Processors (Series 2)
🔹 Memory Performance
💾 4× DDR5 UDIMM (Max 256GB)
⚡ 9200 – 6400 (OC) MT/s / 6400 – 4800 (JEDEC) MT/s
🔥 Intel® XMP 3.0 & Memory Overclocking
📡 Dual-Controller Dual-Channel mode
🧩 Supports Non-ECC, Un-buffered memory & CUDIMM
🔹 Graphics & Display Output (requires CPU with iGPU)
🎮 1× HDMI™ 2.1 (Up to 8K 60Hz)
🖥️ 1× DisplayPort 1.4 (Up to 4K 60Hz)
⚡ 1× Type-C DisplayPort
🚀 Thunderbolt™ 4 Type-C (Up to 40Gbps / 8K display)
🔹 Expansion Slots
🛡️ 2× PCIe x16 + 1× PCIe x1
⚡ PCIe 5.0 x16 (From CPU)
🔧 PCIe 4.0 slots from chipset
🔹 Storage Options
🚀 3× M.2 (PCIe 5.0 & 4.0 support)
💽 4× SATA 6G
🔄 RAID 0 / 1 / 5 / 10 for SATA
🔹 Audio
🎧 Realtek® ALC897 Codec
🔊 7.1-Channel High Definition Audio
✨ Optical S/PDIF out
🔹 Networking & Wireless
🌐 Intel® Killer™ E5000 5G LAN
📡 Intel® Killer™ BE1750x Wi-Fi 7
🔵 Bluetooth® 5.4
🚀 Up to 5.8Gbps wireless speed
🔹 USB & Connectivity
⚡ Thunderbolt™ 4 (40Gbps)
🔌 USB 10Gbps Type-C (Front & Rear)
🔌 Multiple USB 10Gbps & USB 5Gbps ports
🧩 USB 2.0 front & rear support
🔹 Internal I/O & Cooling
🧊 CPU fan + pump fan header
🌪️ 5× system fan headers
🌈 Addressable RGB Gen2 & RGB headers
🔐 TPM 2.0 support
⚙️ Supplemental PCIe Power
🔹 Back Panel Highlights
🔘 Clear CMOS & Flash BIOS Button
🌐 5G LAN & Wi-Fi/Bluetooth antenna
🎧 HD Audio + Optical S/PDIF
⚡ Thunderbolt™ 4 Type-C
🔌 USB 10Gbps Type-A & Type-C
🔹 LED & Debug Features
💡 4× EZ Debug LED
🧠 EZ Memory Detection LED
🔹 Form Factor & OS
📏 ATX Form Factor (243.84mm × 304.8mm)
🪟 Supports Windows® 11 64-bit
