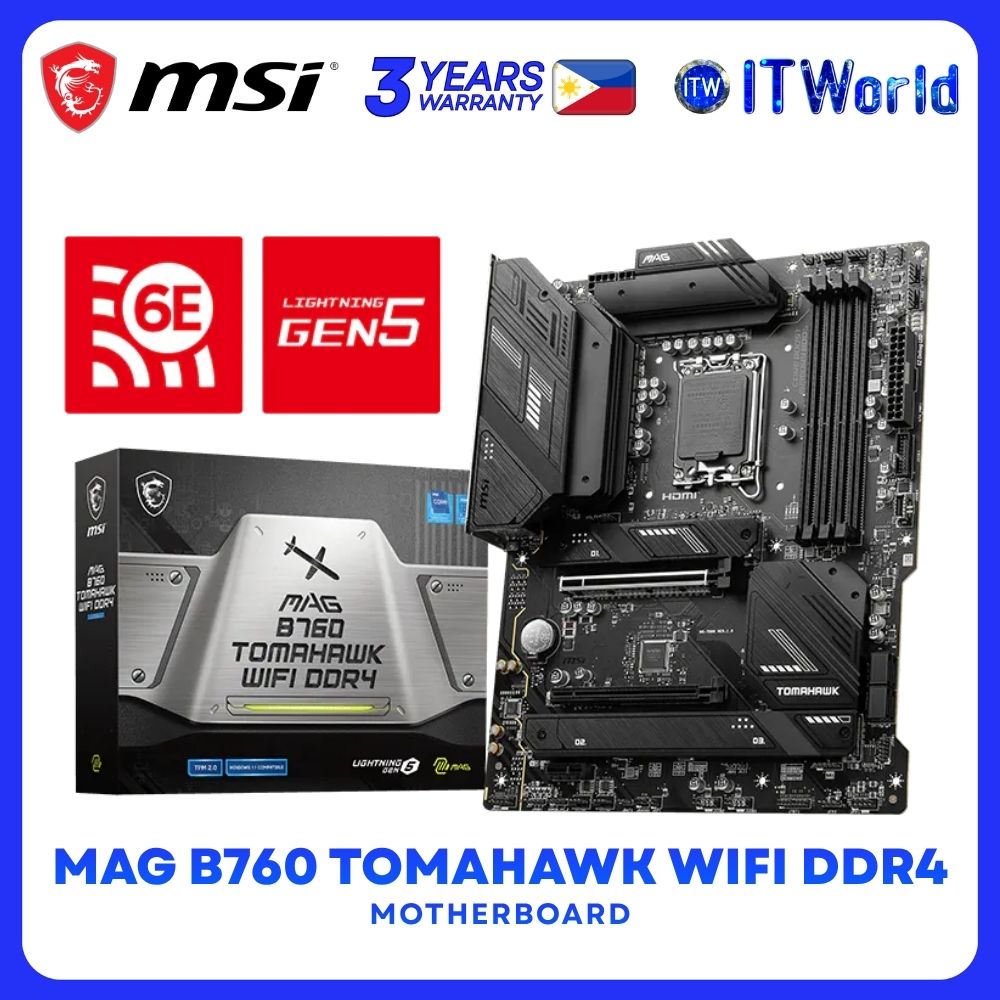

MSI MAG B760 Tomahawk Wifi DDR4 ATX LGA1700 Intel B760 Chipset Motherboard
✨ Upgrade your PC with the MSI MAG B760 Tomahawk WiFi DDR4, engineered for reliable performance, efficient cooling, and next-generation connectivity. Built with the Intel® B760 chipset, this ATX motherboard supports Intel® Core™ 14th, 13th, and 12th Gen processors, making it an excellent choice for gaming, productivity, and content creation.
Product Highlights
🖥️ Intel® B760 Chipset
⚙️ Supports Intel® Core™ 14th / 13th / 12th Gen, Pentium® Gold & Celeron® Processors
🔌 LGA1700 Socket
🚀 4× DDR4 DIMM Slots (Up to 128GB, 5333+ MHz OC)
⚡ 12+1+1 Duet Rail Power System
🎮 PCIe 5.0 x16 Slot
💾 3× Lightning Gen4 x4 M.2 Slots
📦 4× SATA 6Gb/s Ports
🌐 Intel® Wi-Fi 6E + Bluetooth® 5.3
🔗 Realtek® 2.5Gbps LAN
🎧 7.1-Channel Audio with Realtek® ALC897
❄️ Extended Heatsink Design & M.2 Shield Frozr
🔥 6-Layer PCB with 2oz Thickened Copper
💡 EZ Debug LED
🖥️ Supports Windows® 11 64-bit & Windows® 10 64-bit
📋 Specifications
CPU Support
🔹 Intel® Core™ 14th / 13th / 12th Gen Processors
🔹 Intel® Pentium® Gold Processors
🔹 Intel® Celeron® Processors
🔹 LGA1700 Socket
Memory
🔹 4× DDR4 DIMM Slots
🔹 Up to 128GB Capacity
🔹 Supports up to 5333+ MHz (OC)
🔹 Dual-Channel Memory
🔹 Intel® XMP Support
🔹 Non-ECC, Unbuffered Memory
Expansion Slots
🔹 1 × PCIe 5.0 x16
🔹 1 × PCIe 3.0 x4
🔹 1 × PCIe 4.0 x1
Graphics Outputs
🔹 1 × HDMI™ 2.1 (Up to 4K 60Hz*)
🔹 1 × DisplayPort 1.4 (Up to 8K 60Hz*)
*Available with processors featuring integrated graphics.
Storage
🔹 3× M.2 PCIe Gen4 x4
🔹 4× SATA 6Gb/s
🔹 RAID 0 / 1 / 5 / 10 Support
Networking
🔹 Intel® Wi-Fi 6E
🔹 Bluetooth® 5.3
🔹 Realtek® 2.5Gb Ethernet
Audio
🔹 Realtek® ALC897
🔹 7.1-Channel High Performance Audio
🔹 Optical S/PDIF Output
USB Connectivity
🔹 USB 2.0
🔹 USB 3.2 Gen 1 (5Gbps)
🔹 USB 3.2 Gen 2 (10Gbps)
🔹 USB 3.2 Gen 2x2 Type-C (20Gbps)
Cooling Features
🔹 Extended Heatsink Design
🔹 M.2 Shield Frozr
🔹 Multiple Fan Headers
🔹 Pump Fan Header
PCB & Form Factor
🔹 ATX
🔹 243.84 × 304.8 mm
🔹 6-Layer PCB with 2oz Thickened Copper
