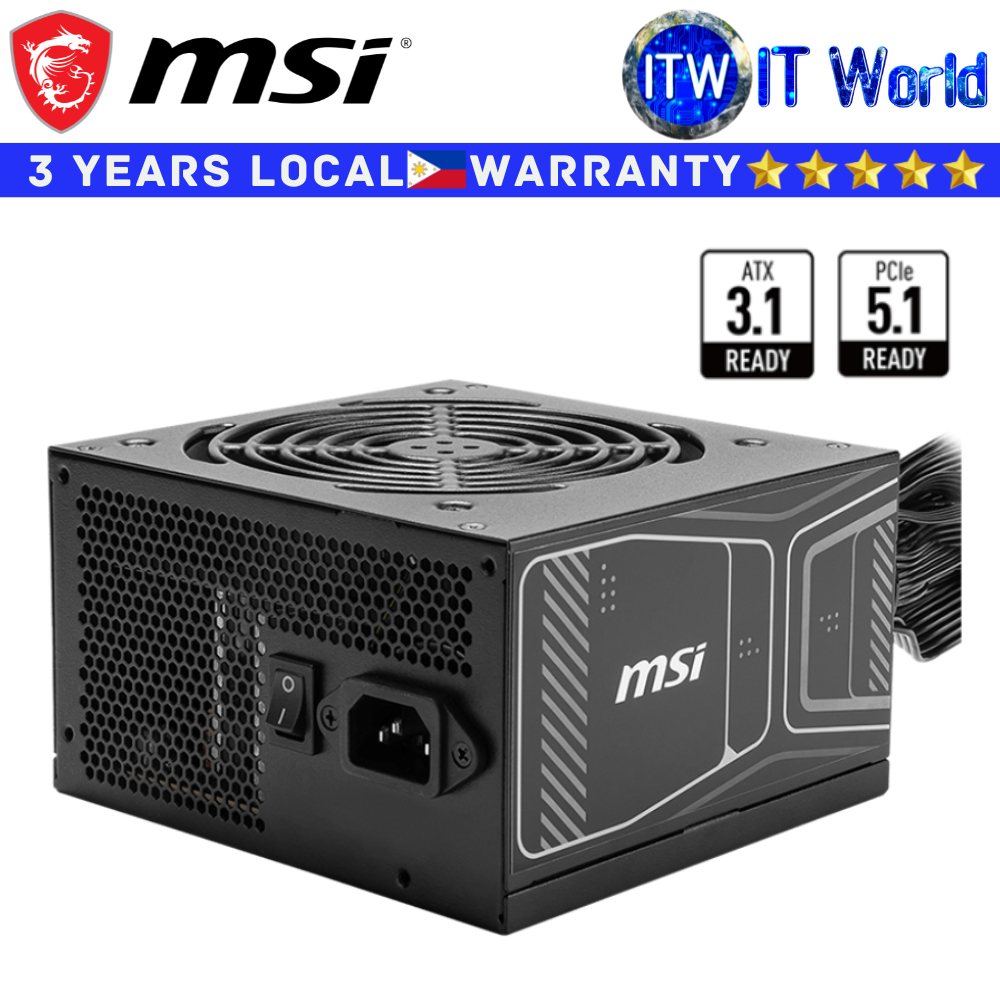

Product Name: Itw | MSI PSU 850W Power Supply Unit MAG A850GN PCIE5 ATX 3.1 80+ Gold Non-Modular Active PFC
MAG A850GN PCIE5
> ATX 3.1 ready, native PCIe 5.1 connector
> Supports NVIDIA® GeForce RTX™ 40 Series graphics cards
> 105°C main capacitor
> 80 Plus Gold certified for high efficiency with Active PFC design
> Industrial level protection with OVP, OCP, OPP, OTP, SCP
> 120 mm Sleeve Bearing Fan
> Full Bridge Topology with DC-DC module design
Specifications
* Efficiency Rating: 80 PLUS Gold (up to 90%)
* Modular: No (non modular)
* Fan Size: 120 mm
* Fan Bearing: Sleeve Bearing
* Dimensions (DxWxH): 140 x 150 x 86 mm
* PFC Type: Active PFC
* Input Voltage Range: 100~240 VAC
* Power Watt: 850W
* Power Excursion: 1700W (*up to 200% of the PSU's rated power for 100μs)
* Input Frequency Range: 47-63Hz
* Protection: OCP / OVP / OPP / OTP / SCP
* ATX (24 pin): 1
* EPS (4+4 pin): 2
* PCI-E 5.1 (16 pin): 1
* PCI-E (6+2 pin): 2
* SATA (15 pin): 4
* PERIPHERAL (4 pin): 2
