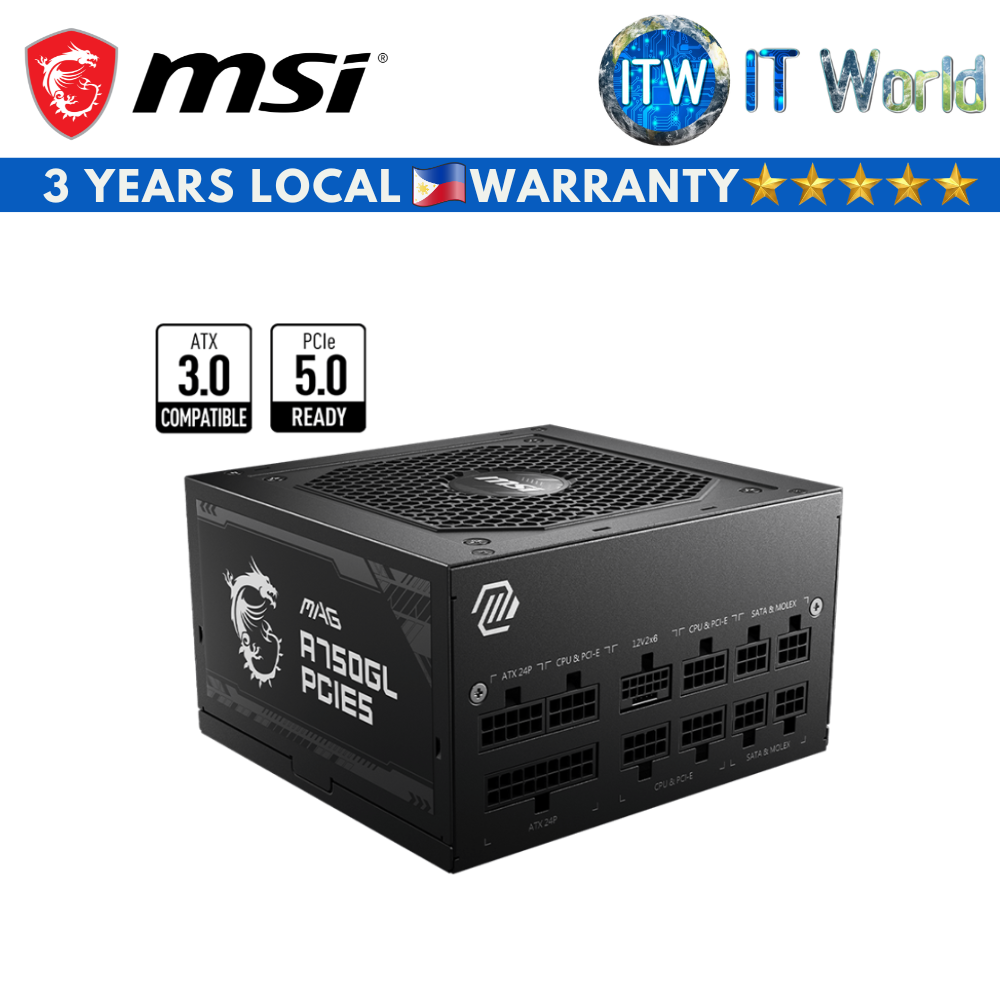

MSI PSU 750W Power Supply Unit 80+ Gold Modular MAG A750GL PCIE5

Product Name:

Key Feature

• ATX 3.0 compatible, native PCIe 5.0 connector

• Supports NVIDIA® GeForce RTXTM 40 Series graphics cards

• Full modular design,Flat cables

• 80 Plus Gold certified for high efficiency

• Active PFC design,Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP

• 120mm Fluid Dynamic Bearing Fan

• LLC Full Bridge Topology with DC-DC module design

Specification

• EFFICIENCY RATING: 80 PLUS Gold (up to 90%)

• MODULAR: Yes (full modular)

• FAN SIZE: 120 mm

• FAN BEARING: Fluid Dynamic Bearing

• DIMENSIONS (DXWXH): 140 x 150 x 86 mm

• PFC TYPE: Active PFC

• INPUT VOLTAGE RANGE: 100~240 VAC

• POWER WATT: 750W

• POWER EXCURSION: 1500W (*up to 200% of the PSU's rated power for 100μs)

• INPUT FREQUENCY RANGE: 47-63Hz

• PROTECTION: OCP / OVP / OPP / OTP / SCP / UVP

• ATX (24 pin): 1

• EPS (4+4 pin): 2

• PCI-E 5.0 (16 pin): 1 (450W)

• PCI-E (6+2 pin): 3

• SATA (15 pin): 8

• MOLEX (4 pin): 4

• FDD (4 pin): 1
