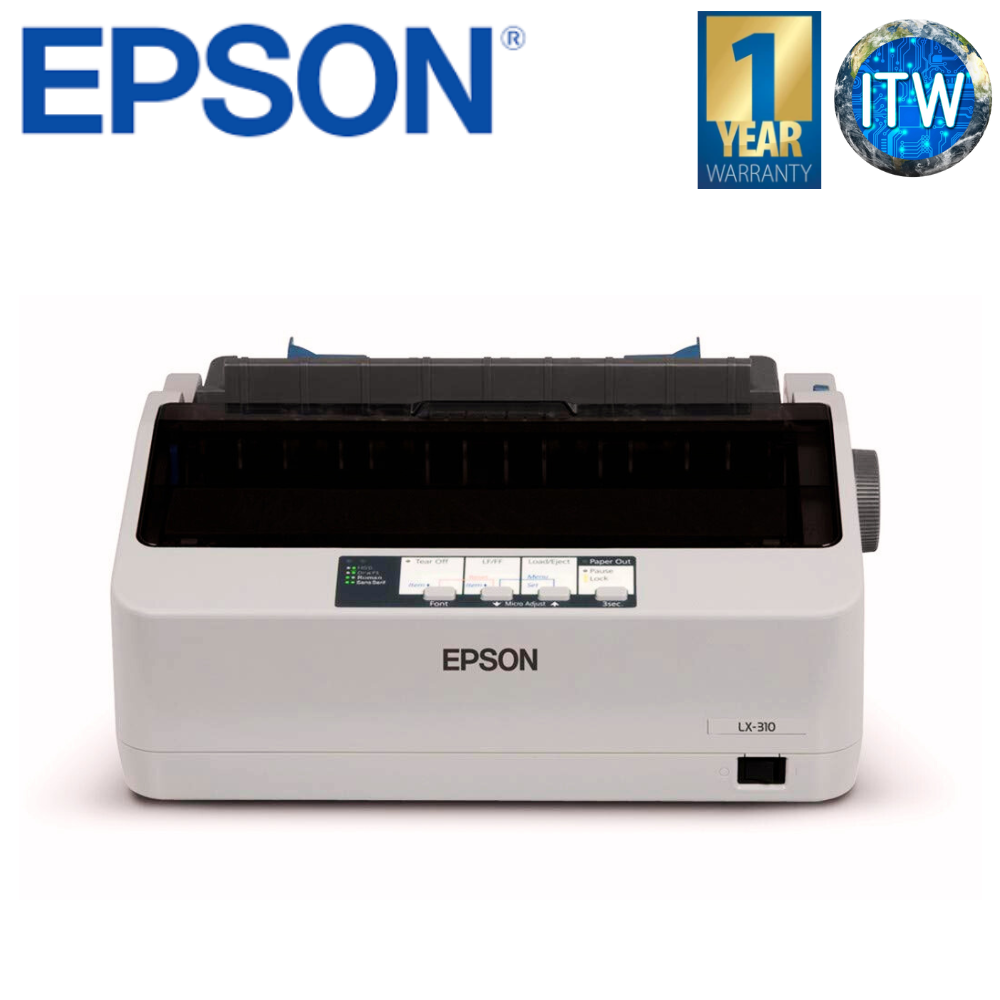

    Product Name: ITW | Epson LX-310 Dot Matrix Printer

    9-Pin Narrow Carriage Impact Printer Highly reliable printing with better performance

    ■ Narrow carriage 9-pin SIDM

    ■ High 357 CPS print speed at 12CPI

    ■ 10,000 power on hour MTBF

    ■ USB, Serial and Parallel ports

    Specifications

    Printing Technology

    ✎ Print Method: Impact dot matrix

    ✎Control Panel: 4 switches and 5 LEDs

    ✎Print Direction: Bi-direction with logic seeking

    ✎Number of Pins in Head: 9 pins

    ✎Control Code: ESC/P and IBM PPDS emulation

    ✎Number of Pins: 9

    Print Speed

    ✎ High Speed Draft: (10 / 12 / 15 cpi): 347 / 357 / 390 cps (Condensed, 17 / 20 cpi): 383 / 298 cps

    ✎ Draft: (10 / 12 / 15 cpi): 260 / 312 / 223 cps (Condensed, 17 / 20 cpi): 222 / 260 cps (Emphasized, 10 cpi): 130 cps

    ✎ NLQ: (10 / 12 / 15 / 17 / 20 cpi): 65 / 78 / 55 / 47 / 56 cps

    Reliability

    ✎ Printhead Life: Approx. 400 million strokes/wire

    ✎ Mean Print Volume Between Failure (MVBF): Approx. 20 million lines (Except print head)

    ✎ Mean Time Between Failure (MTBF): Approx. 10,000 POH (25% Duty)

    Print Characteristics

    ✎ Character Sets: Italic table, PC437 (US Standard Europe), PC850 (Multilingual), PC860 (Portugese), PC861 (Icelandic), PC863 (Canadian French), PC865 (Nordic), Abicomp, BRASCII, Roman 8, ISO Latin 1, PC 858, ISO 8859-15

    ✎ Bitmap Fonts: Epson Draft: 10, 12, 15 cpi; Epson Roman & Sans Serif: 10, 12, 15 cpi, Proportional, Epson OCR-B

    ✎ Barcode: EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E, Code 39, Code 128, Postnet

    Paper Path

    ✎ Manual Insertion: Rear in, Top out

    ✎ Push Tractor: Rear in, Top out

    Paper Media

    ✎ Cut Sheet (Single Sheet)

    ■ Length: 100 ~ 364mm (3.9 ~ 14.3")

    ■ Width: 100 ~ 257mm (3.9 ~ 10.1")

    ■ Thickness: 0.065 ~ 0.14mm (0.0025 ~ 0.0055")

    ✎ Cut Sheet (Multi-part Forms)

    ■ Length: 100 ~ 364mm (3.9 ~ 14.3")

    ■ Width: 100 ~ 257mm (3.9 ~ 10.1")

    ■ Thickness: 0.12 ~ 0.39mm (0.0047 ~ 0.015") (Total)

    ✎ Continuous Paper (Single Sheet / Multi-part):

    ■ Length: 101.6 ~ 558.8mm (4.0 ~ 22.0")

    ■ Width: 101.6 ~ 254.0mm 4.0 ~ 10.0")

    ■ Thickness: 0.065 ~ 0.39mm (0.0025 ~ 0.015") (Total)

    ✎ Envelope (No.6)

    ■ Length: 92mm (3.6")

    ■ Width: 165mm (6.5")

    ■ Thickness: 0.16 ~ 0.52mm (0.0063 ~ 0,0205") (Total)

    ✎ Envelope (No.10)

    ■ Length: 105mm (4.1")

    ■ Width: 241mm (9.5")

    ■ Thickness: 0.16 ~ 0.52mm (0.0063 ~ 0.0205") (Total)

    ✎ Roll Paper

    ■ Width: 216mm (8.5")

    ■ Thickness: 0.07 ~ 0.09mm (0.0028 ~ 0.0035")

    Supported OS and Applications

    ✎ Supported OS: Microsoft® Windows® 2000 / XP / Vista / 7 / 8 / 8.1 / 10

    Dimensions and Weight

    ✎ Dimensions (W x D x H): 362 x 275 x 154 mm

    ✎ Weight: Approx. 4.1 kg

    Consumables

    ✎ Ribbon Cartridge Black: Ribbon Life: Approx. 4.0 million characters (Draft 10 cpi, 14 dots/character)

    Environmental Conditions (Operating)

    ✎ Temperature: 5 ~ 35°C

    ✎ Humidty: 10 ~ 80 % RH

    Acoustic Noise

    ✎ Acoustic Noise: Approx. 53 dB(A) (ISO 7779 pattern)

    Input Data Buffer

    ✎ Input Data Buffer: 128KB

    Interface

    ✎ Standard

    ■ Bi-directional parallel (IEEE-1284 nibble mode supported)

    ■ USB 2.0 Full-Speed

    ■ Serial

    Ribbon Cartridge

    ✎ Standard: Fabric Ribbon Cartridge (Black) - C13S015632

    ✎ Ribbon Life: Approx. 4.0 million characters (Draft 10 cpi, 14 dots/character
