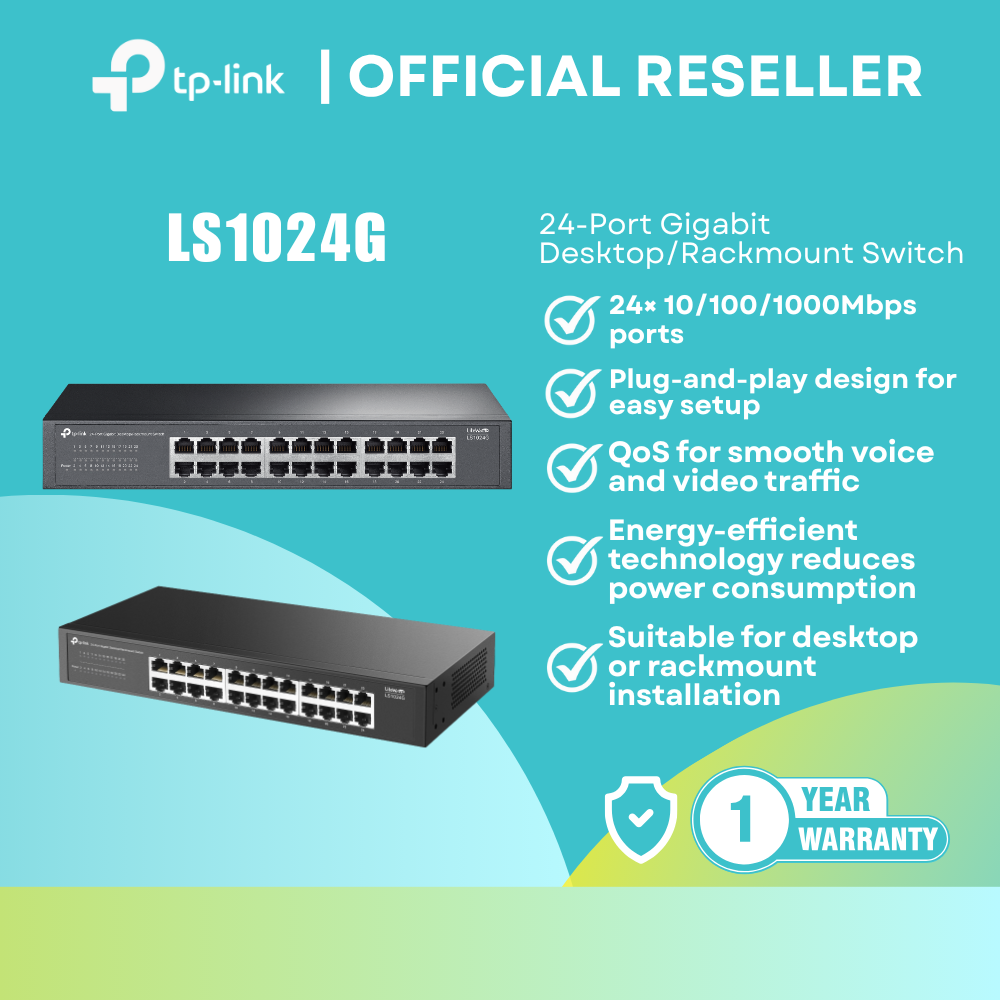

LS1024G 24-Port Gigabit Deskto / Rackmount Switch
⚡ High-Speed Networking, Simplified!
Experience seamless connectivity and efficient data transfers with the LS1024G 24-Port Gigabit Switch — perfect for homes, small offices, and growing businesses 🏢💻. With gigabit-speed ports, durable build, and a silent fanless design, this switch ensures reliable and stable performance all day long!
🔹 Key Features:
🚀 24× 10/100/1000Mbps RJ45 Ports for ultra-fast wired connections
🔄 Auto MDI/MDIX & Auto Negotiation for hassle-free setup
🧠 MAC Address Self-Learning for smart traffic management
🎧 QoS Support – optimized for voice & video applications
🔇 Fanless Design – silent and energy-efficient operation
🧊 Durable Metal Casing – enhanced heat dissipation & long lifespan
🧰 Dual Installation Options: Desktop or rackmount setup
🔌 Plug & Play: No configuration needed!
⚙️ Hardware Specifications:
Standards: IEEE 802.3 / 802.3u / 802.3ab / 802.3x / 802.3p
Ports: 24× Gigabit RJ45 (Auto MDI/MDIX)
Network Media Support:
10BASE-T: Cat3, 4, 5 UTP (≤200m)
100BASE-TX: Cat5 or above (≤170m)
1000BASE-T: Cat5e or above (≤160m)
Power Supply: 100–240V~50/60Hz, 0.6A
Max Power Consumption: 12.6W
Heat Dissipation: 42.77 BTU/h
Switching Capacity: 48 Gbps
Packet Forwarding Rate: 35.712 Mpps
MAC Address Table: 8K
Jumbo Frame: 10KB
Transmission Method: Store-and-Forward
Green Technology: Yes
🏅 Certifications:
FCC, CE, RoHS
📦 Package Contents:
LS1024G 24-Port Gigabit Switch
Power Cord
Rackmount Kits
Rubber Feet
Installation Guide
🌡️ Operating Conditions:
Temperature: 0°C–45°C (Operating) / -40°C–70°C (Storage)
Humidity: 10%–90% (Operating) / 5%–90% (Storage)
