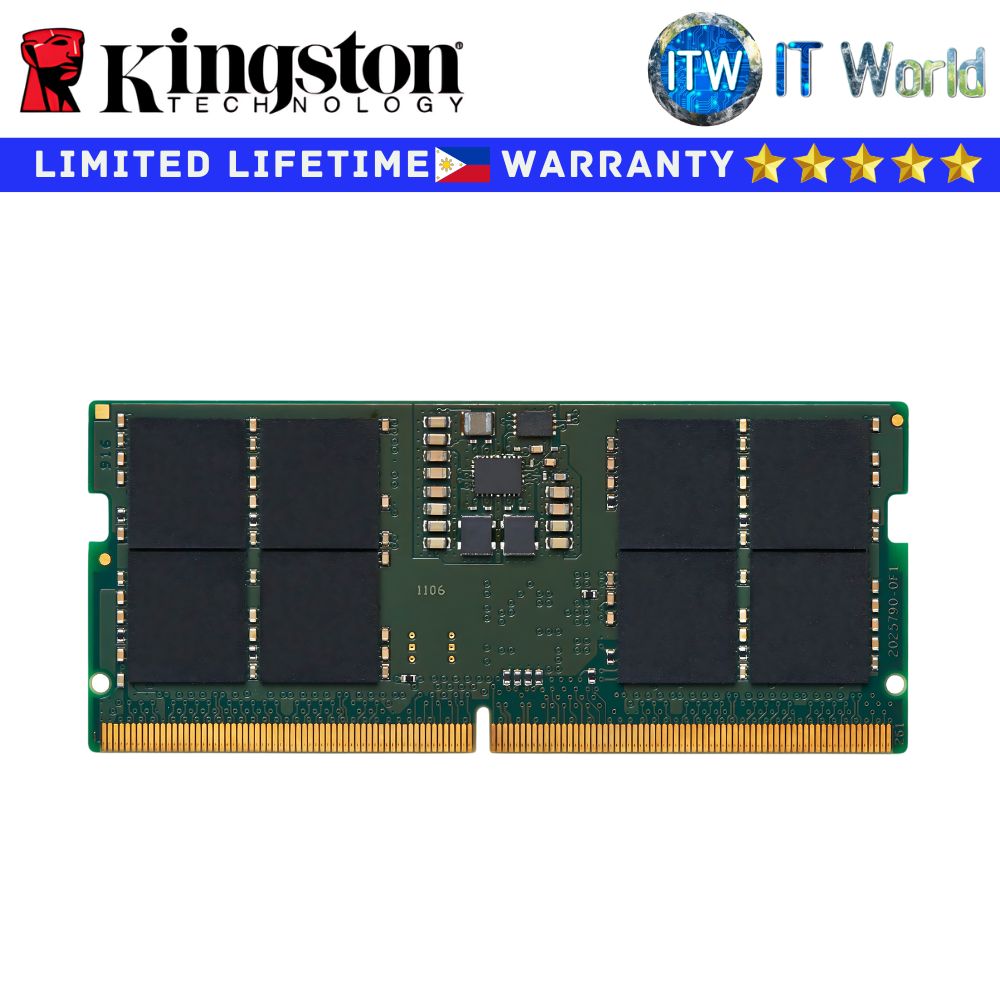

Product Name: Itw | Kingston DDR5 RAM 16GB (1RX8) 5600MT/s Non-ECC Unbuffered SODIMM (KVR56S46BS8-16)
Overview
• This document describes ValueRAM's KVR56S46BS8-16 is a 2G x 64-bit (16GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 1Rx8, memory module, based on eight 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 262-pin SODIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:
Key Feature
• Power Supply: VDD = 1.1V Typical
• VDDQ = 1.1V Typical
• VPP = 1.8V Typical
• VDDSPD = 1.8V to 2.0V
• On-Die ECC
• PCB: Height 1.18” (30.00mm)
• RoHS Compliant and Halogen-Free
Specification
• CL(IDD): 46 cycles
• Row Cycle Time (tRCmin): 48ns(min.)
• Refresh to Active/Refresh Command Time (tRFCmin): 295ns(min.)
• Row Active Time (tRASmin): 32ns(min.)
• UL Rating: 94 V - 0
• Operating Temperature: 0°C to +85°C
• Storage Temperature: 0°C to +85°C
