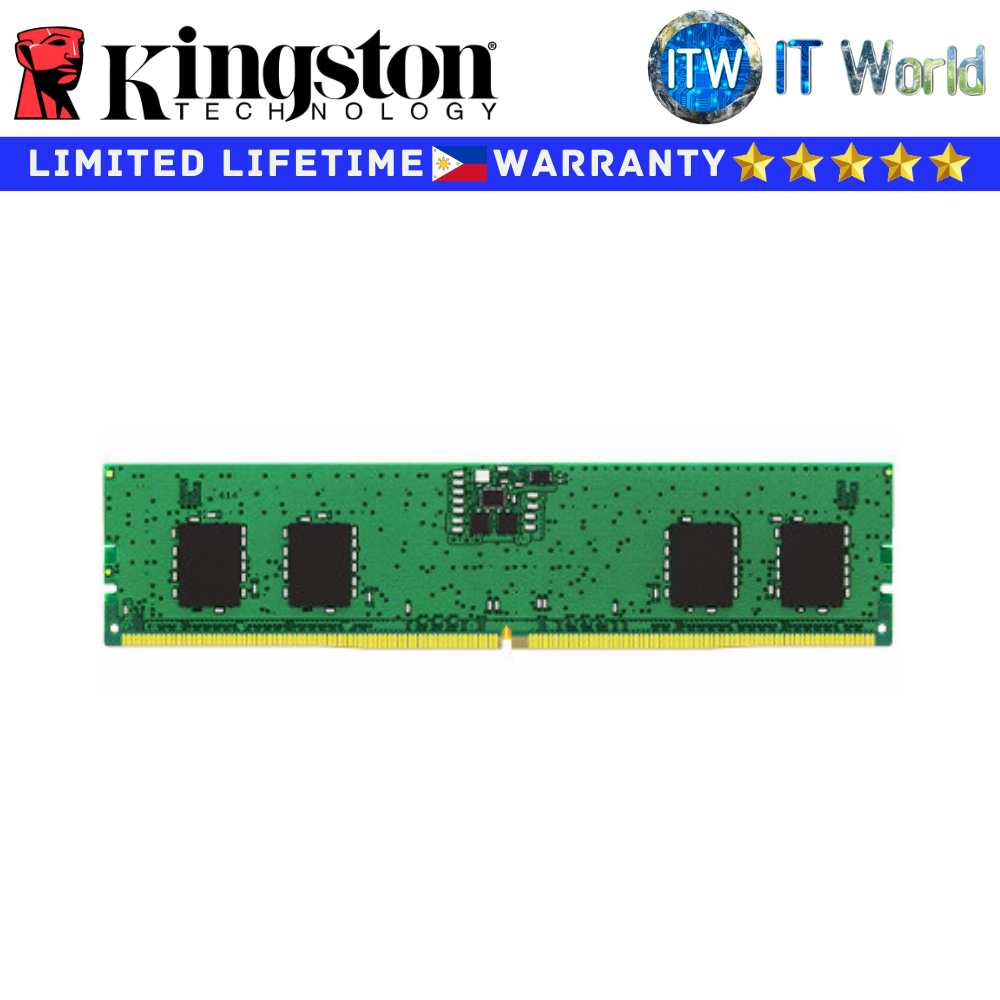

Itw | Kingston DDR5 RAM 8GB 5200MT/s Non-ECC Unbuffered DIMM CL42 (KVR52U42BS6-8)

Product Name: Itw | Kingston DDR5 RAM 8GB 5200MT/s Non-ECC Unbuffered DIMM CL42 (KVR52U42BS6-8)

Description

> This document describes ValueRAM's KVR52U42BS6-8 is a 1G x 64-bit (8GB) DDR5-5200 CL42 SDRAM (Synchronous DRAM), 1Rx16, memory module, based on four 1G x 16-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5200 timing of 42-42-42 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:

Features

* Power Supply: VDD = 1.1V Typical

* VDDQ = 1.1V Typical

* VPP = 1.8V Typical

* VDDSPD = 1.8V to 2.0V

* On-Die ECC

* PCB: Height 1.23” (31.25mm)

* RoHS Compliant and Halogen-Free

Specification

* Capacity: 8GB

* Chip Organization: X16

* Kit: Single Module

* Ranking: 1R

* CL (IDD): 42 cycles

* Row Cycle Time (tRCmin): 48ns(min.)

* Refresh to Active/Refresh Command Time (tRFCmin): 295ns(min.)

* Row Active Time (tRASmin): 32ns(min.)

* UL Rating: 94 V - 0

* Operating Temperature: 0°C to +85°C

* Storage Temperature: -55°C to +100°C
