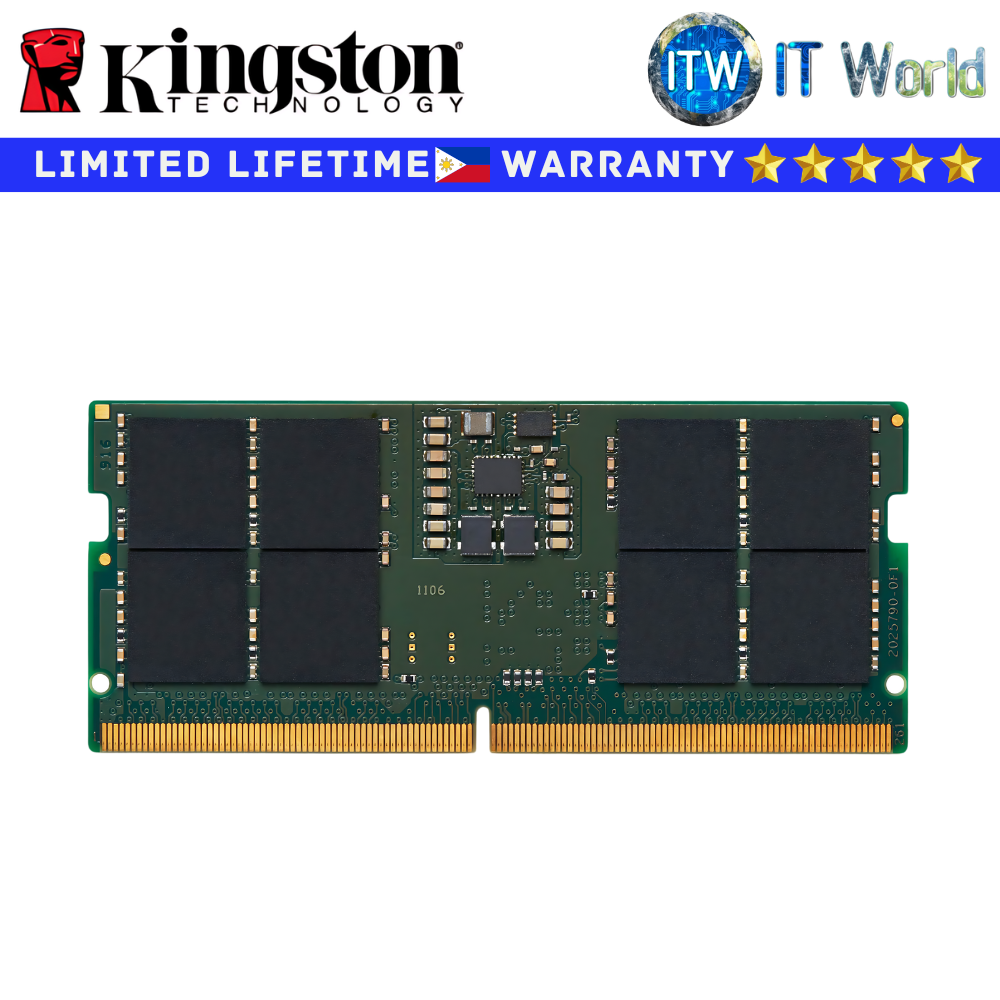

Kingston DDR5 RAM 16GB (1RX8) 5200MT/s Non-ECC Unbuffered SODIMM (KVR52S42BS8-16)

Product Name: Itw | Kingston DDR5 RAM 16GB (1RX8) 5200MT/s Non-ECC Unbuffered SODIMM (KVR52S42BS8-16)

Overview

• This document describes ValueRAM's KVR52S42BS8-16 is a 2G x 64-bit (16GB) DDR5-5200 CL42 SDRAM (Synchronous DRAM), 1Rx8, memory module, based on eight 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5200 timing of 42-42-42 at 1.1V. Each 262-pin SODIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:

Key Feature

• Power Supply: VDD = 1.1V Typical

• VDDQ = 1.1V Typical

• VPP = 1.8V Typical

• VDDSPD = 1.8V to 2.0V

• On-Die ECC

• PCB: Height 1.18” (30.00mm)

• RoHS Compliant and Halogen-Free

Specification

• CL(IDD): 42 cycles

• Row Cycle Time (tRCmin): 48ns(min.)

• Refresh to Active/Refresh Command Time (tRFCmin): 295ns(min.)

• Row Active Time (tRASmin): 32ns(min.)

• UL Rating: 94 V - 0

• Operating Temperature: 0°C to +85°C

• Storage Temperature: -55°C to +100°C
