Kingston Memory RAM 16GB DDR4 3200MT/s Non-ECC CL22 SODIMM (KVR32S22D8/16WP) | itw

Product Name: Kingston Memory RAM 16GB DDR4 3200MT/s Non-ECC CL22 SODIMM (KVR32S22D8/16WP) | itw

*DESCRIPTION

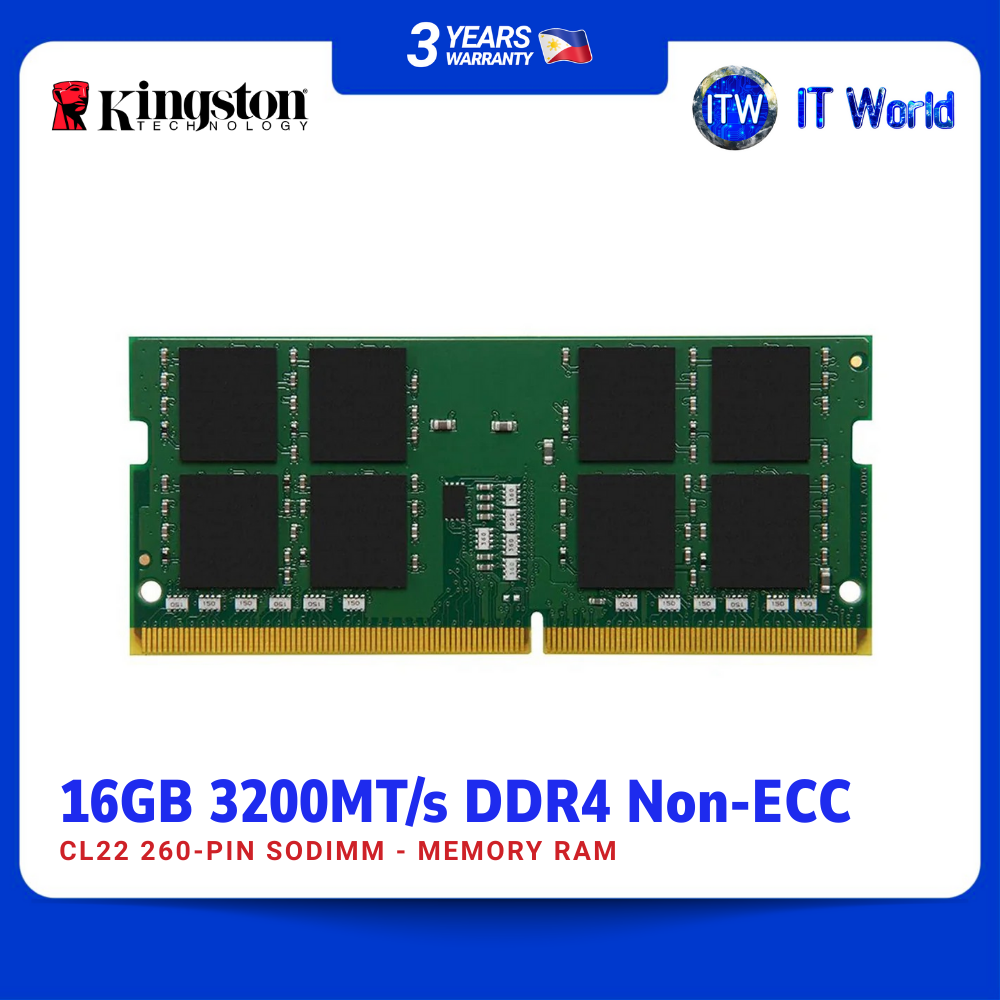

This document describes ValueRAM's KVR32S22D8/16WP is a 2G

x 64-bit (16GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM),

2Rx8, non-ECC, memory module, based on sixteen 1G x 8-bit

FBGA components. The SPD is programmed to JEDEC standard

latency DDR4-3200 timing of 22-22-22 at 1.2V. This 260-pin DIMM

uses gold contact fingers. The electrical and mechanical

specifications are as follows:

Features

• Power Supply: VDD = 1.2V Typical

• VDDQ = 1.2V Typical

• VPP = 2.5V Typical

• VDDSPD = 2.2V to 3.6V

• Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals

• Low-power auto self refresh (LPASR)

• Data bus inversion (DBI) for data bus

• On-die VREFDQ generation and calibration

• Dual-rank

• On-board I2 serial presence-detect (SPD) EEPROM

• 16 internal banks; 4 groups of 4 banks each

• Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)

• Selectable BC4 or BL8 on-the-fly (OTF)

• Fly-by topology

• Terminated control command and address bus

• PCB: Height 1.18” (30.00mm)

• RoHS Compliant and Halogen-Free

Specification

CL(IDD): 22 cycles

Row Cycle Time (tRCmin): 45.75ns(min.)

Refresh to Active/Refresh Command Time (tRFCmin): 350ns(min.)

Row Active Time (tRASmin): 32ns(min.)

UL Rating: 94 V - 0

Operating Temperature: 0° C to +85° C

Storage Temperature: -55° C to +100° C
