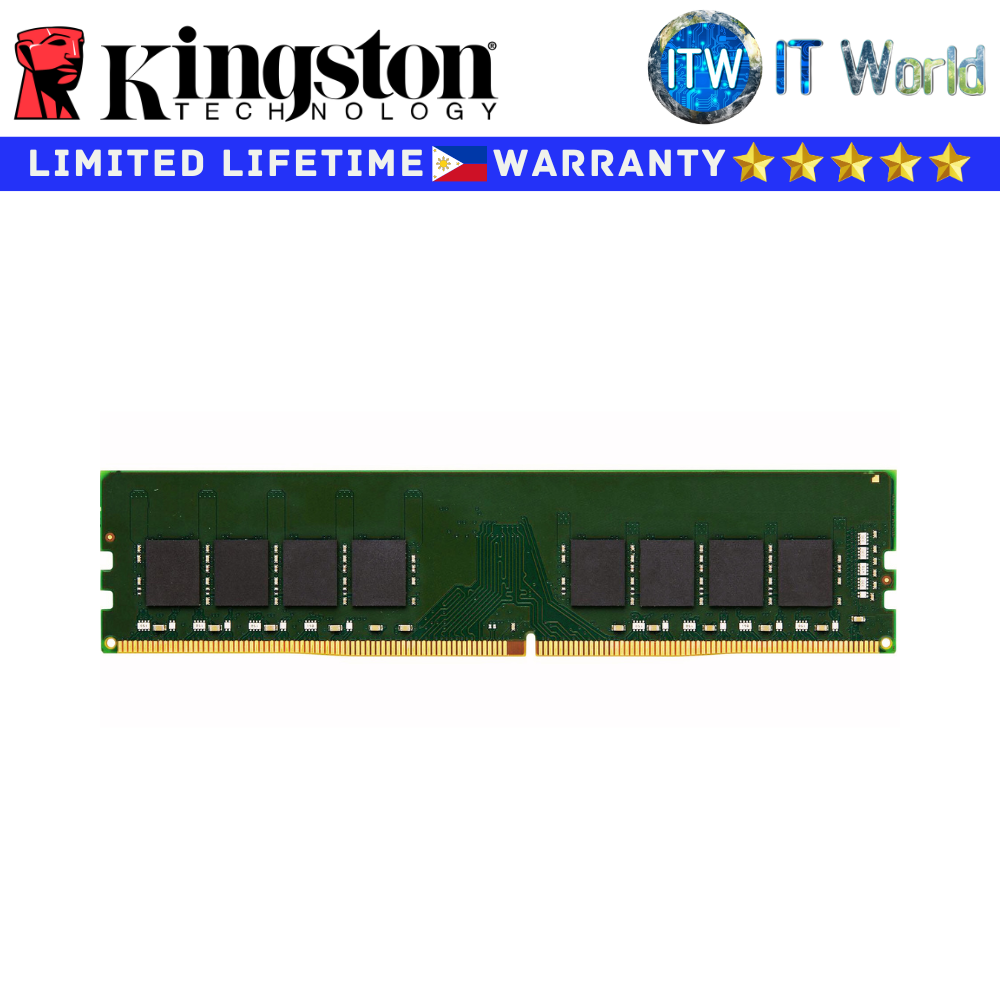

Kingston DDR4 RAM 32GB (2Rx8) 3200MT/s Non-ECC Unbuffered DIMM (KVR32N22D8/32)

Product Name: Itw | Kingston DDR4 RAM 32GB (2Rx8) 3200MT/s Non-ECC Unbuffered DIMM (KVR32N22D8/32)

Description

> This document describes ValueRAM's KVR32N22D8/32 is a 4G x 64-bit (32GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 2Rx8, memory module, based on sixteen 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. Each 288-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:

Features

* Power Supply: VDD = 1.2V Typical

* VDDQ = 1.2V Typical

* VPP = 2.5V Typical

* VDDSPD = 2.2V to 3.6V

* Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals

* Low-power auto self refresh (LPASR)

* Data bus inversion (DBI) for data bus

* On-die VREFDQ generation and calibration

* Dual-rank

* On-board I2 serial presence-detect (SPD) EEPROM

* 16 internal banks; 4 groups of 4 banks each

* Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)

* Selectable BC4 or BL8 on-the-fly (OTF)

* Fly-by topology

* Terminated control command and address bus

* PCB: Height 1.23” (31.25mm)

* RoHS Compliant and Halogen-Free

Specification

* Capacity: 32GB

* Chip Organization: x8

* Ranking: 2R

* DRAM Density: 16Gbit

* CL (IDD): 22 cycles

* Row Cycle Time (tRCmin): 45.75ns(min.)

* Refresh to Active/Refresh Command Time (tRFCmin): 350ns(min.)

* Row Active Time (tRASmin): 32ns(min.)

* UL Rating: 94 V - 0

* Operating Temperature: 0°C to +85°C

* Storage Temperature: -55°C to +100°C
