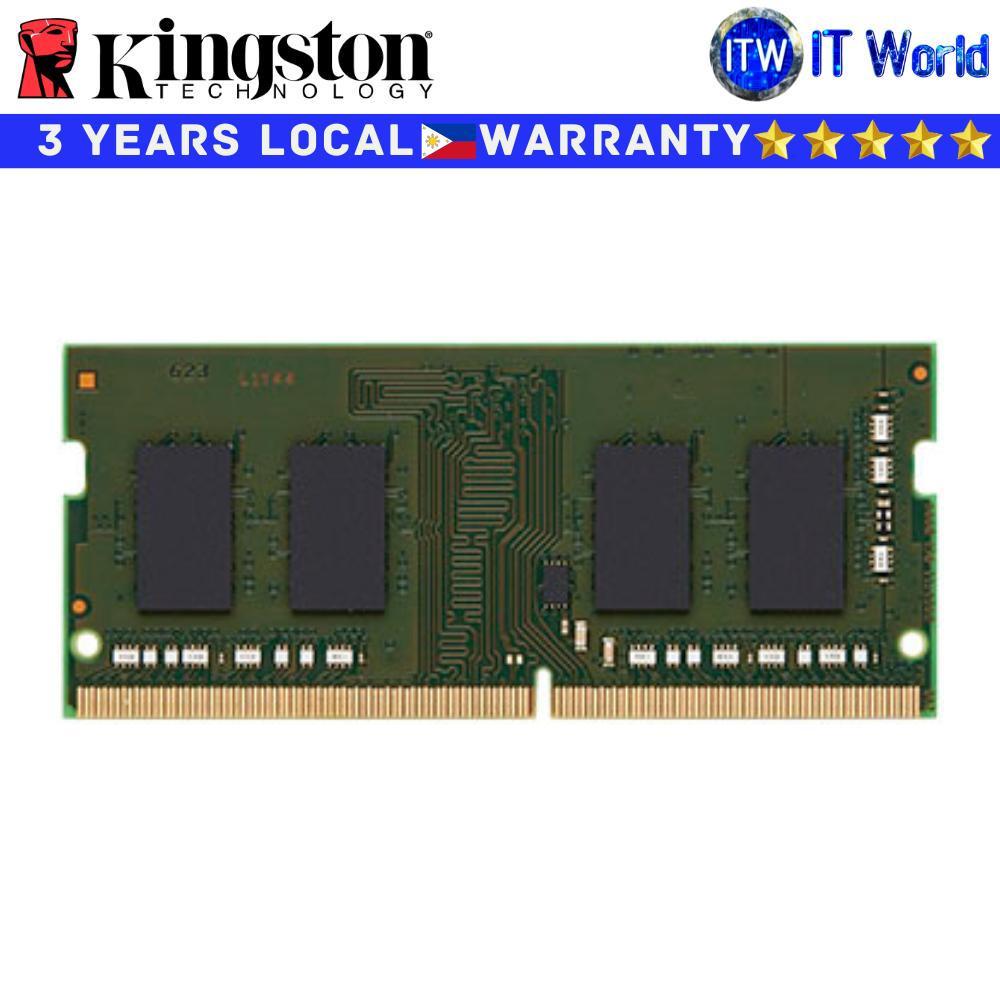

Kingston DDR4 RAM 8GB (8GBx1) 2666Mhz Non-ECC Unbuffered SODIMM Memory (KVR26S19S6/8)

Product Name: Itw | Kingston DDR4 RAM 8GB (8GBx1) 2666Mhz Non-ECC Unbuffered SODIMM Memory (KVR26S19S6/8)

Features

> Power Supply: VDD = 1.2V Typical

> VDDQ = 1.2V Typical

> VPP = 2.5V Typical

> VDDSPD = 2.2V to 3.6V

> Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals

> Low-power auto self refresh (LPASR)

> Data bus inversion (DBI) for data bus

> On-die VREFDQ generation and calibration

> Single-rank

> On-board I2 serial presence-detect (SPD) EEPROM

> 8 internal banks; 2 groups of 4 banks each

> Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)

> Selectable BC4 or BL8 on-the-fly (OTF)

> Fly-by topology

> Terminated control command and address bus

> PCB: Height 1.18” (30.00mm)

> RoHS Compliant and Halogen-Free

Specification

* CL (IDD): 19 cycles

* Row Cycle Time (tRCmin): 45.75ns (min.)

* Refresh to Active/Refresh Command Time (tRFCmin): 350ns (min.)

* Row Active Time (tRASmin): 32ns (min.)

* UL Rating: 94V - 0

* Operating Temperature: 0°C to +85°C

* Storage Temperature: -55°C to +100°C
