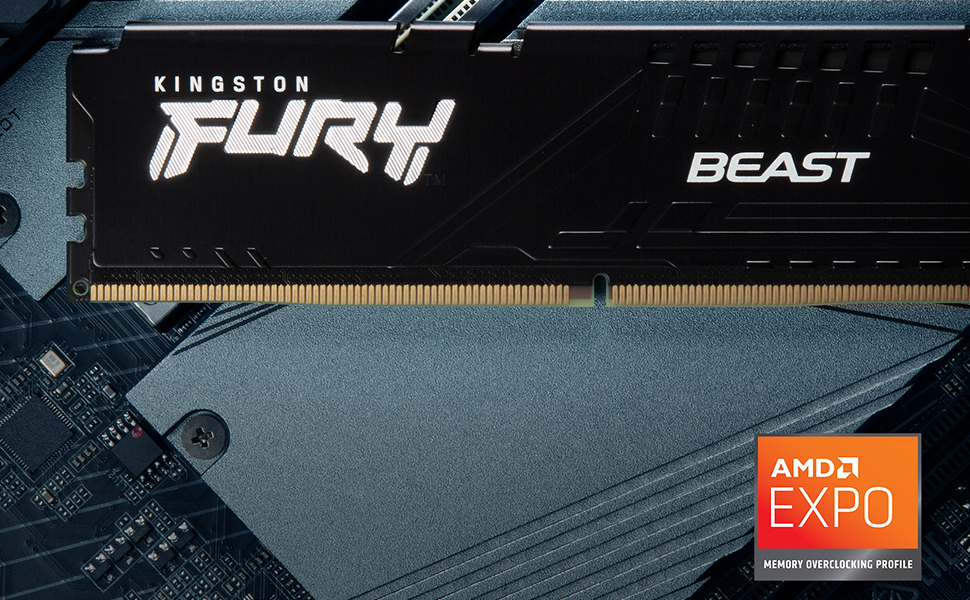

Kingston FURY BEAST DDR5 Memory RAM 32GB (1×32GB) 5600MT/s Desktop DIMM KF556C36BBE-32 itw

Product Name: Kingston FURY BEAST DDR5 Memory RAM 32GB (1×32GB) 5600MT/s Desktop DIMM KF556C36BBE-32 itw

*DESCRIPTION

Kingston FURY KF556C36BBE-32 is a 4G x 64-bit (32GB)

DDR5-5600 CL36 SDRAM (Synchronous DRAM) 2Rx8, memory

module, based on sixteen 2G x 8-bit FBGA components per module.

The module supports AMD® EXPO v1.0 and Intel® Extreme

Memory Profiles (Intel® XMP) 3.0. Each module has been

tested to run at DDR5-5600 at a low latency timing of 36-38-38 at

1.25V. The SPDs are programmed to JEDEC standard latency

DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM

uses gold contact fingers. The JEDEC standard electrical

and mechanical specifications are as follows:

*FEATURES

• Power Supply: VDD = 1.1V Typical

• VDDQ = 1.1V Typical

• VPP = 1.8V Typical

• VDDSPD = 1.8V to 2.0V

• On-Die ECC

• Height 1.37” (34.9mm), w/heatsink

Specifications

CL(IDD): 40 cycles

Row Cycle Time (tRCmin): 48ns(min.)

Refresh to Active/Refresh Command Time (tRFCmin): 295ns(min.)

Row Active Time (tRASmin): 32ns(min.)

UL Rating: 94 V - 0

Operating Temperature: 0° C to +85° C

Storage Temperature: -55° C to + 100° C
