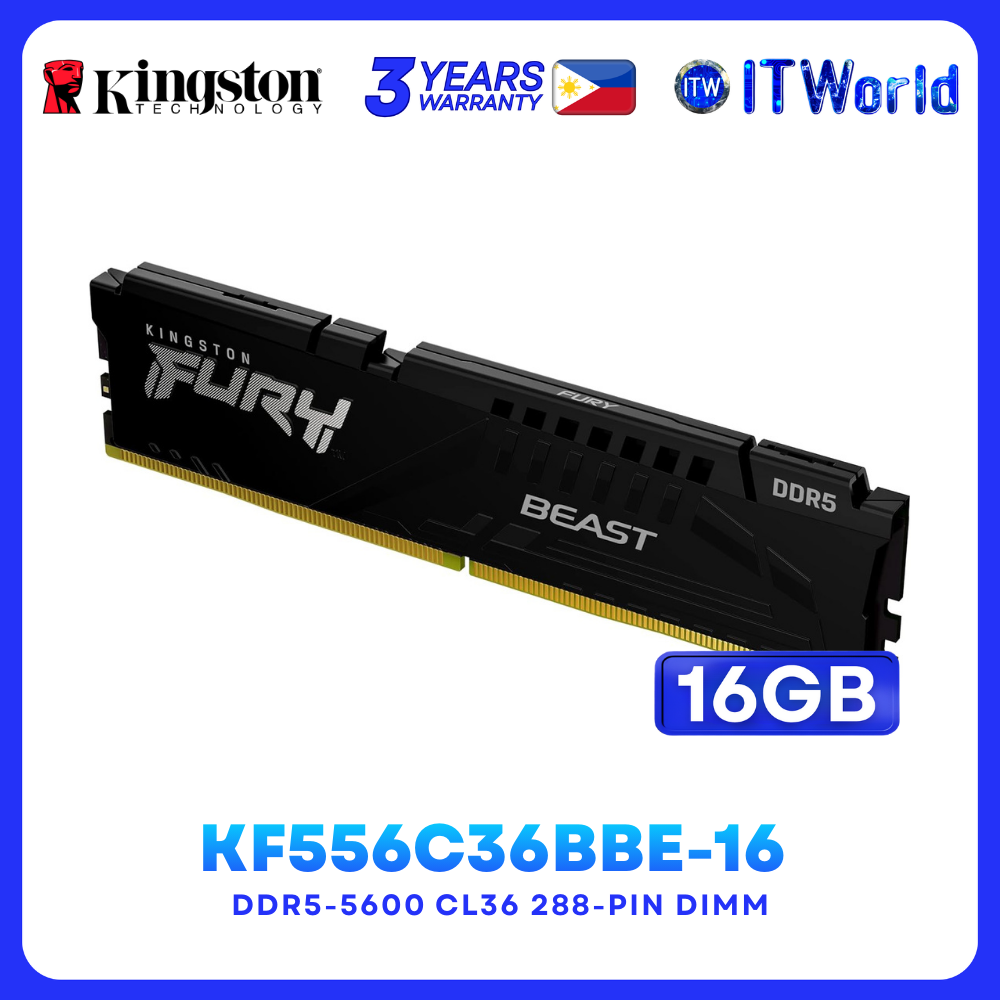

Product Name: Kingston FURY BEAST DDR5 Memory RAM 16GB (1x16GB) 5600MT/s Desktop DIMM KF556C36BBE-16 itw
*DESCRIPTION
Kingston FURY KF556C36BBE-16 is a 2G x 64-bit (16GB)
DDR5-5600 CL36 SDRAM (Synchronous DRAM) 1Rx8, memory
module, based on eight 2G x 8-bit FBGA components per module.
The module supports AMD® EXPO v1.0 and Intel® Extreme
Memory Profiles (Intel® XMP) 3.0. Each module has been
tested to run at DDR5-5600 at a low latency timing of 36-38-38 at
1.25V. The SPDs are programmed to JEDEC standard latency
DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM
uses gold contact fingers. The JEDEC standard electrical
and mechanical specifications are as follows:
*FEATURES
• Power Supply: VDD = 1.1V Typical
• VDDQ = 1.1V Typical
• VPP = 1.8V Typical
• VDDSPD = 1.8V to 2.0V
• On-Die ECC
• Height 1.37” (34.9mm), w/heatsink
Specifications
CL(IDD): 40 cycles
Row Cycle Time (tRCmin): 48ns(min.)
Refresh to Active/Refresh Command Time (tRFCmin): 295ns(min.)
Row Active Time (tRASmin): 32ns(min.)
UL Rating: 94 V - 0
Operating Temperature: 0° C to +85° C
Storage Temperature: -55° C to + 100° C
