Kingston FURY Beast 8GB (1x8GB) 3600MT/s DDR4 CL17 Desktop Memory (KF436C17BB/8) | itw

Product Name: Kingston FURY Beast 8GB (1x8GB) 3600MT/s DDR4 CL17 Desktop Memory (KF436C17BB/8) | itw

*DESCRIPTION

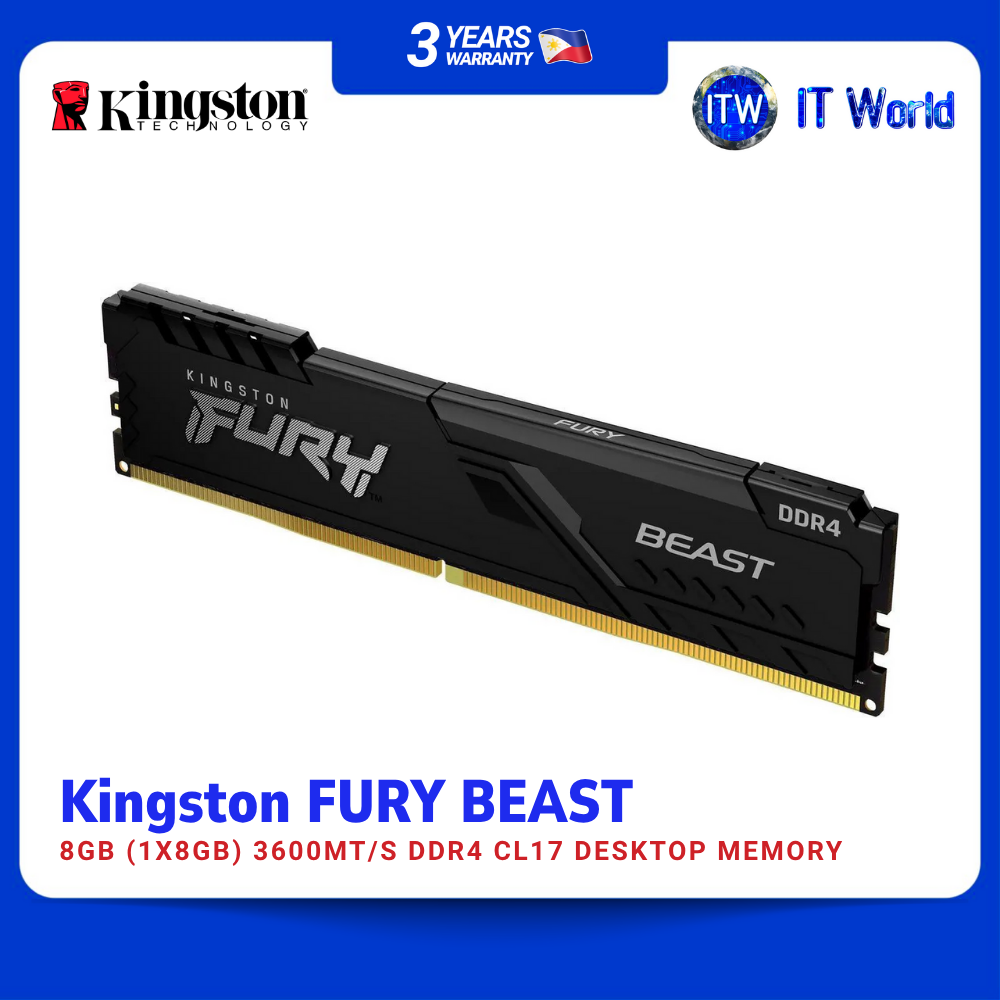

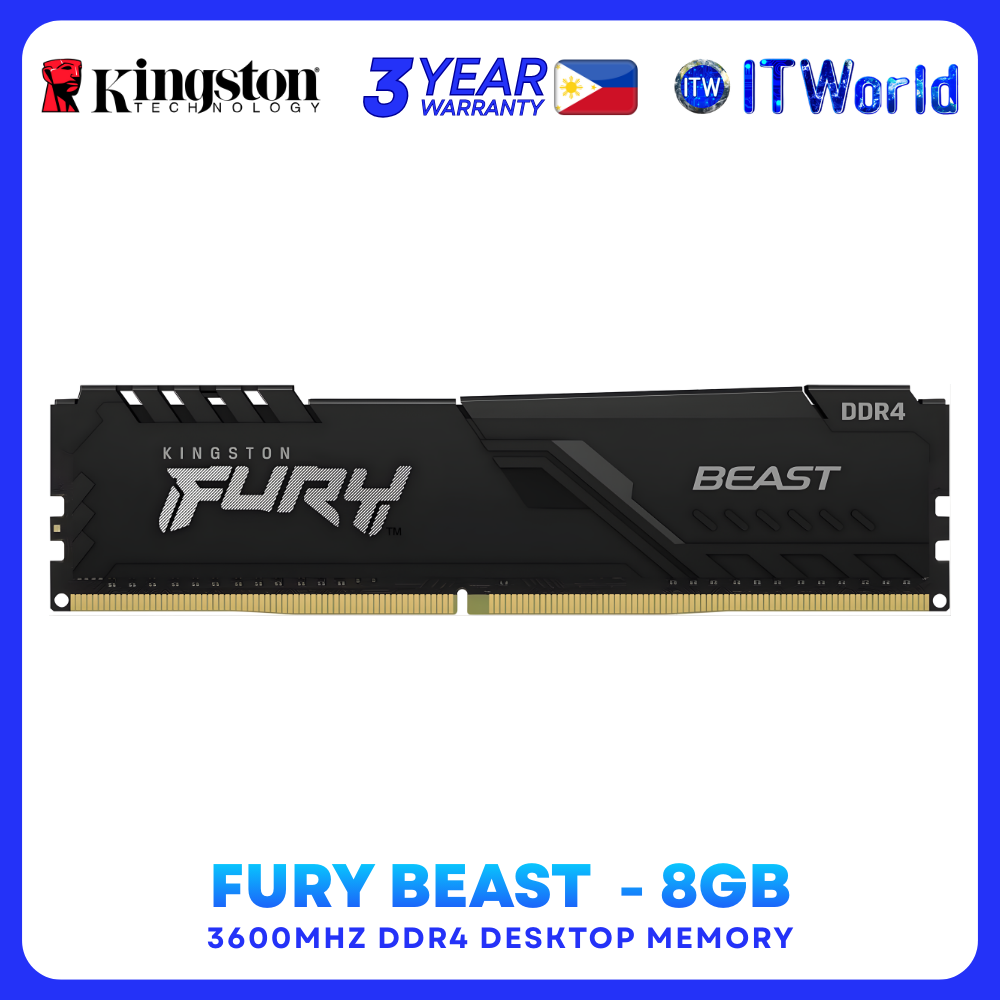

Kingston FURY KF436C17BB/8 is a 1G x 64-bit (8GB) DDR4-3600

CL17 SDRAM (Synchronous DRAM) 1Rx8, memory module, based

on eight 1G x 8-bit FBGA components per module. Each module kit

supports Intel® Extreme Memory Profiles (Intel® XMP) 2.0. Each

module has been tested to run at DDR4-3600 at a low latency timing

of 17-21-21 at 1.35V. The SPDs are programmed to JEDEC

standard latency DDR4-2400 timing of 17-17-17 at 1.2V. Each

288-pin DIMM uses gold contact fingers. The JEDEC standard

electrical and mechanical specifications are as follows:

FEATURES

• Power Supply: VDD = 1.2V Typical

• VDDQ = 1.2V Typical

• VPP = 2.5V Typical

• VDDSPD = 2.2V to 3.6V

• On-Die termination (ODT)

• 16 internal banks; 4 groups of 4 banks each

• Bi-Directional Differential Data Strobe

• 8 bit pre-fetch

• Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop)

• Height 1.34” (34mm), w/heatsink

Specification

CL(IDD): 17 cycles

Row Cycle Time (tRCmin): 45.75ns(min.)

Refresh to Active/Refresh Command Time (tRFCmin): 350ns(min.)

Row Active Time (tRASmin): 32ns(min.)

UL Rating: 94 V - 0

Operating Temperature: 0° C to +85° C

Storage Temperature: -55° C to +100° C
