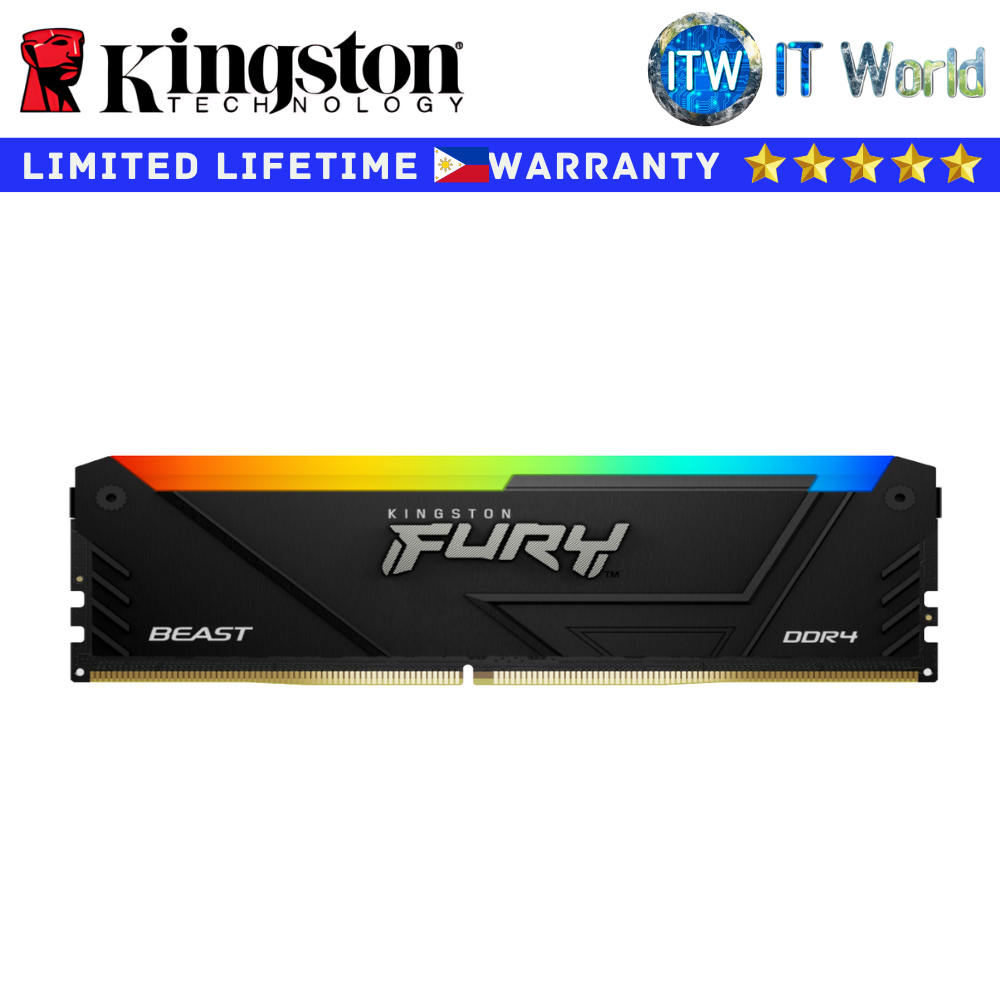

Kingston DDR4 RAM 16GB (1x16GB) 3200MT/s CL16 FURY Beast RGB Black XMP (KF432C16BB2A/16)

Product Name: Itw | Kingston DDR4 RAM 16GB (1x16GB) 3200MT/s CL16 FURY Beast RGB Black XMP (KF432C16BB2A/16)

Overview

• Kingston FURY KF432C16BB2A/16 is a 2G x 64-bit (16GB) DDR4-3200 CL16 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 2G x 8-bit FBGA components per module. Each module kit supports Intel® Extreme Memory Profiles (Intel® XMP) 2.0. Each module has been tested to run at DDR4-3200 at a low latency timing of 16-20-20 at 1.35V. The SPDs are programmed to JEDEC standard latency DDR4-2400 timing of 17-17-17 at 1.2V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:

Key Feature

• Power Supply: VDD = 1.2V Typical

• VDDQ = 1.2V Typical

• VPP = 2.5V Typical

• VDDSPD = 2.2V to 3.6V

• On-Die termination (ODT)

• 16 internal banks; 4 groups of 4 banks each

• Bi-Directional Differential Data Strobe

• 8 bit pre-fetch

• Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop)

• Height 1.69” (43mm), w/heatsink

Specification

• CL(IDD): 17 cycles

• Row Cycle Time (tRCmin): 45.75ns(min.)

• Refresh to Active/Refresh Command Time (tRFCmin): 350ns(min.)

• Row Active Time (tRASmin): 32ns(min.)

• UL Rating: 94 V - 0

• Operating Temperature: 0°C to +70°C

• Storage Temperature: -40°C to +85°C
