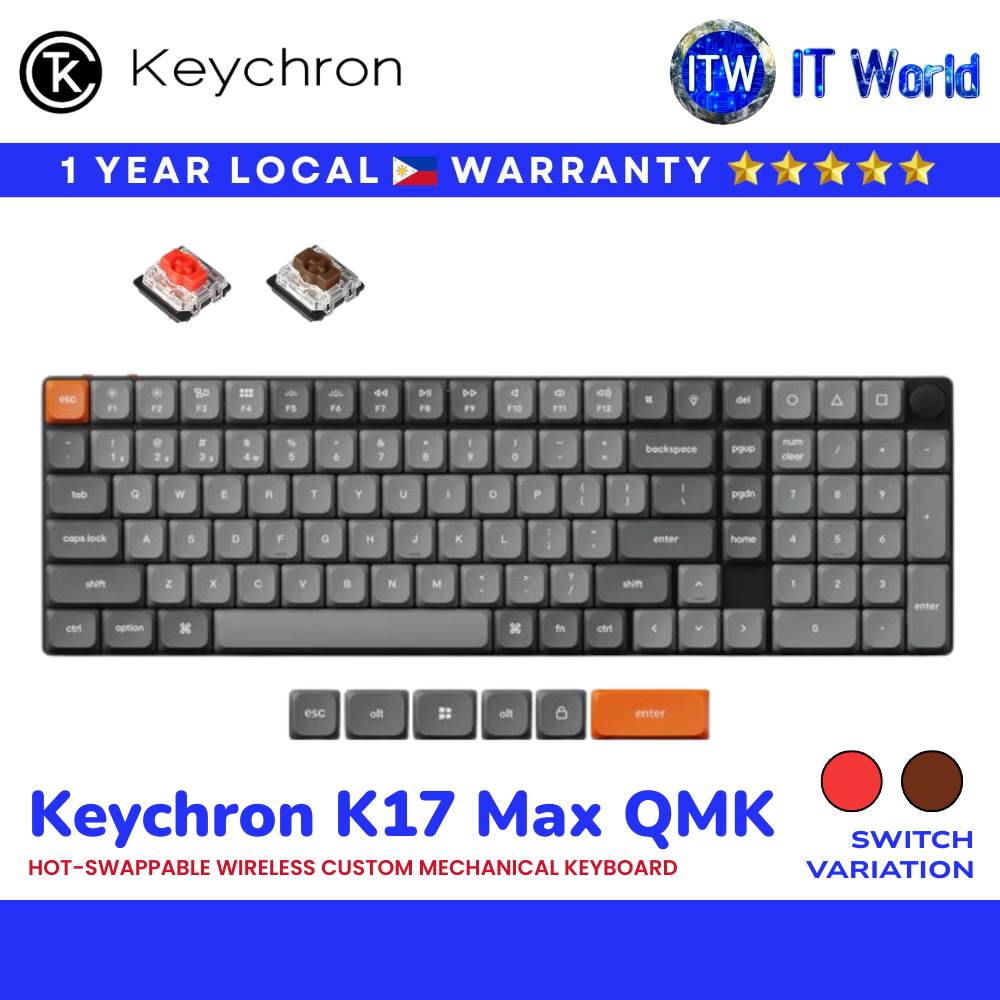

Product Name: Keychron K17 Max QMK Wireless Custom Mechanical Keyboard RGB Hot-Swappable (Red/Brown Switch) | itw

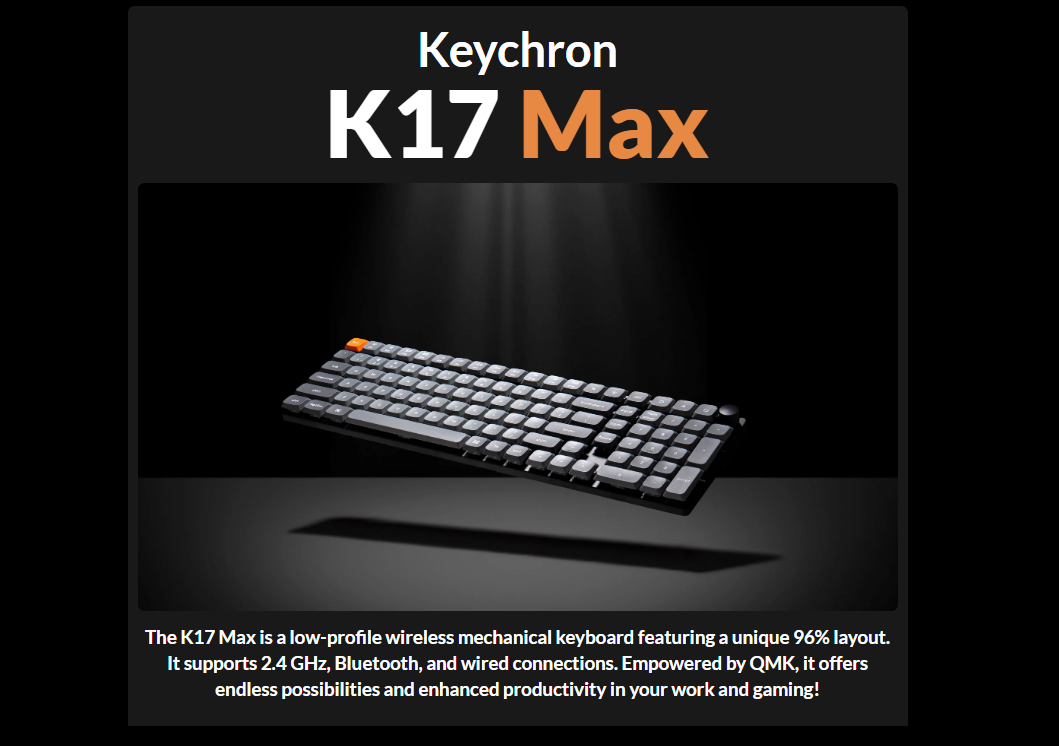

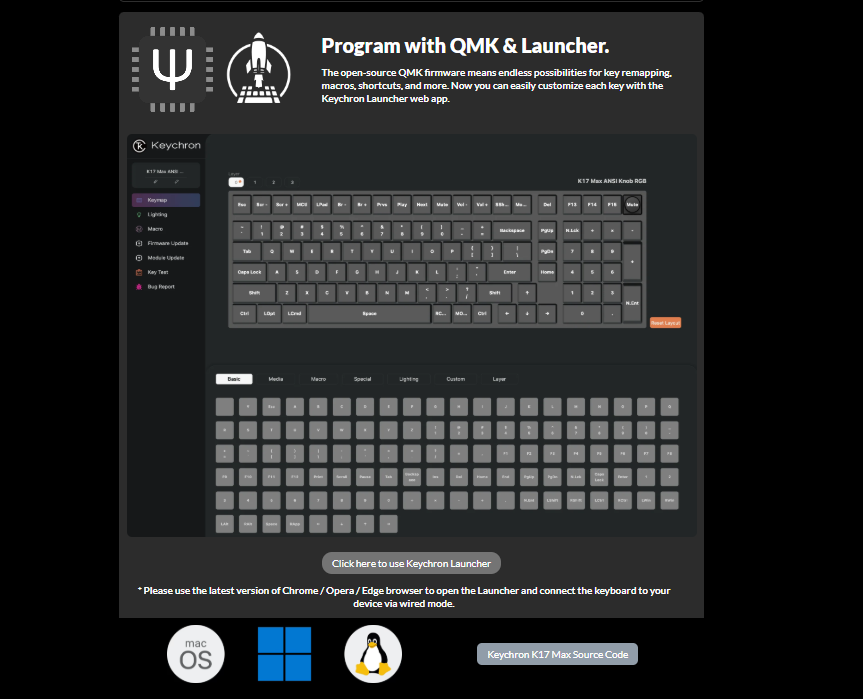

*Keychron K17 Max is an ultra-slim wireless custom mechanical keyboard. It supports 2.4 GHz, Bluetooth, and a wired connection. It allows anyone to master any keys or macro commands on its 96% layout through Keychron Launcher web app. Besides, it has included LSA (low profile spherical-angled) profile keycaps for both Windows and macOS, and users can hot-swap with Gateron low-profile MX mechanical switch in a breeze (for RGB Backlight Hot-Swappable Version only).
Specification
*SPECIFICATION
Number of Keys: 104 (96%)
Switches: Gateron low-profile mechanical
Switch Face: North-facing
Number of Multimedia Keys: 12
Frame Material: ABS+Aluminum frame

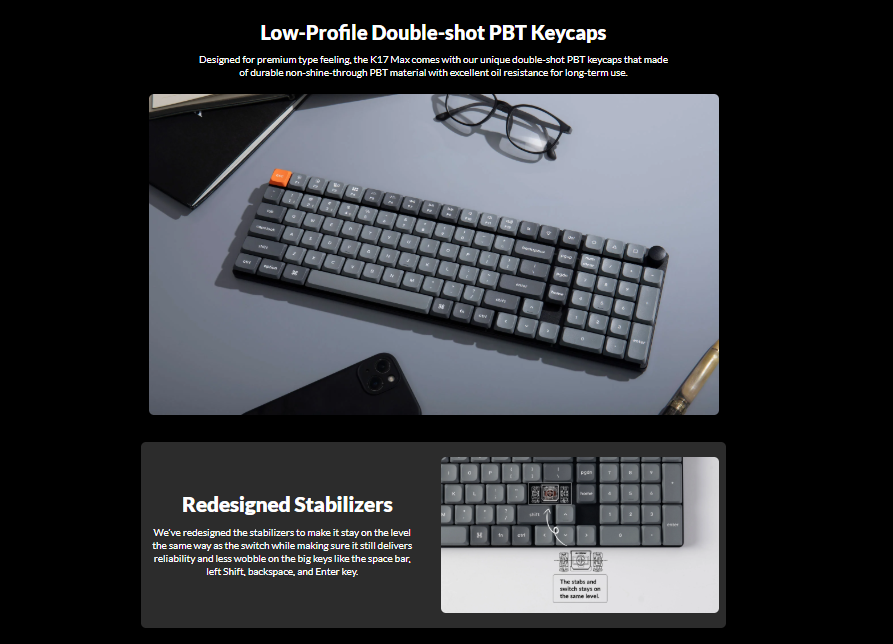

Keycap Material: Low-profile double-shot PBT
Layout: ANSI
Polling Rate (2.4GHz and Wired Mode): 1000Hz
Polling Rate (BT Mode): 90Hz
N-Key Rollover (NKRO): Yes for both wireless and wired modes
*The K17 Max is currently compatible with Gateron/Keychron low-profile mechanical switches only, as QMK does NOT support low-profile optical switches.
*CONNECTIVITY AND POWER

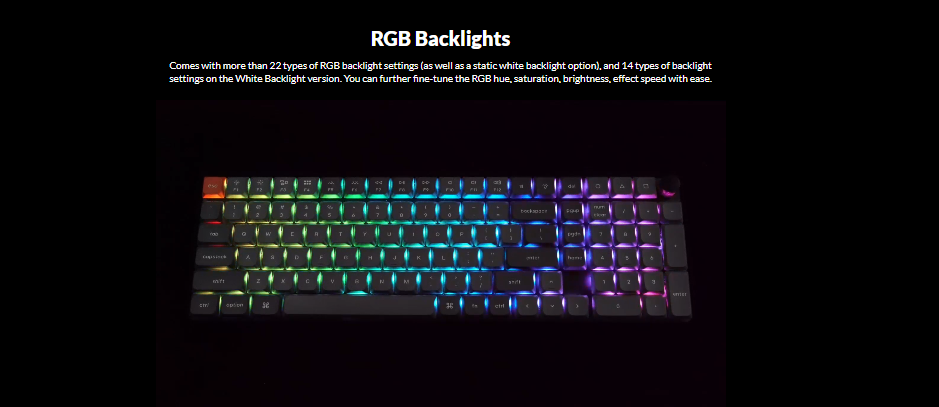

Backlit: 22 types of RGB backlight options plus endless possibilities
Battery: 2000 mAh rechargeable li-polymer battery
Wireless Working Time (Backlit off): Around 95 hours (Lab test result may vary by actual use)
Wireless Working Time (RGB): Around 50 hours (Lowest brightness)

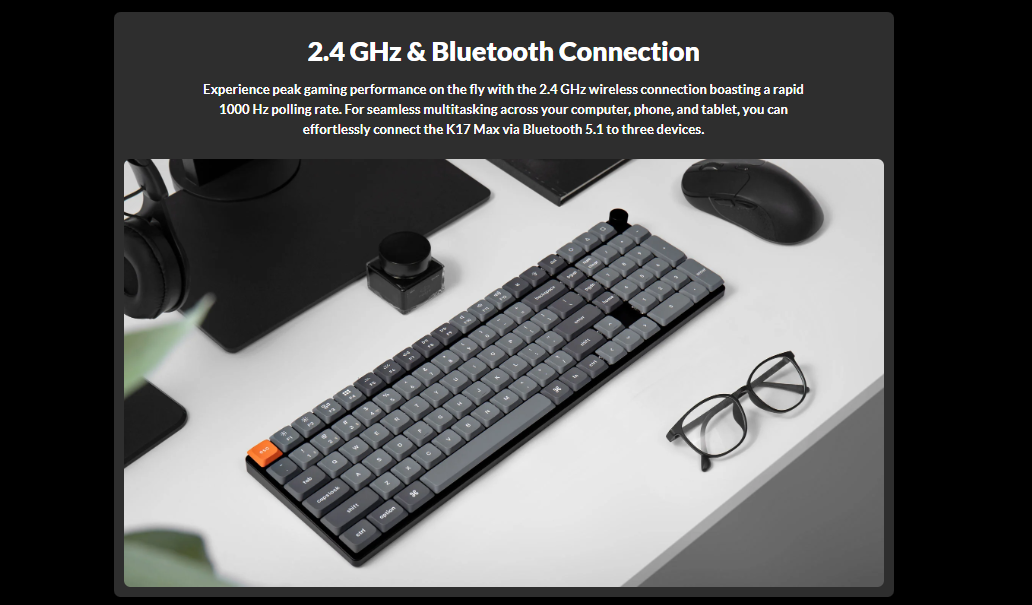

Connection: 2.4 GHz / Bluetooth / Type-C wired
Bluetooth version: 5.1
Bluetooth Device Name: Keychron K17 Max
Compatible System: macOS / Windows / Linux
*PHYSICAL UNIT
Dimension: 387 x 119 mm (15.24 x 4.69")
Weight: 750 g / 1.65 lbs

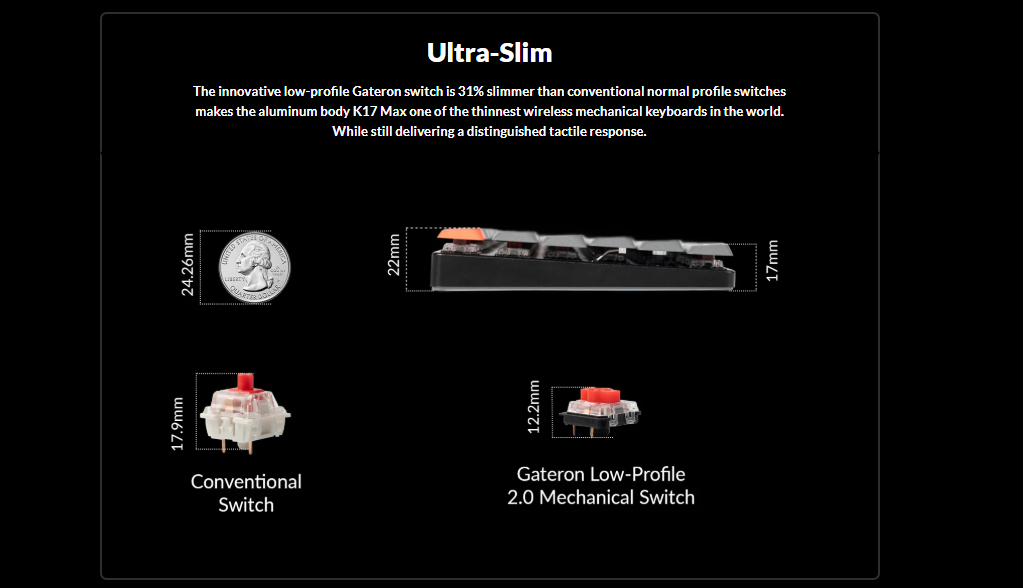

Height without keycap (front): 10.26 mm (0.40")
Height without keycap (rear): 15.36 mm (0.60")
Height incl. keycap (front): 20.32 mm (0.80")
Height incl. keycap (rear): 26.53 mm (1.00")

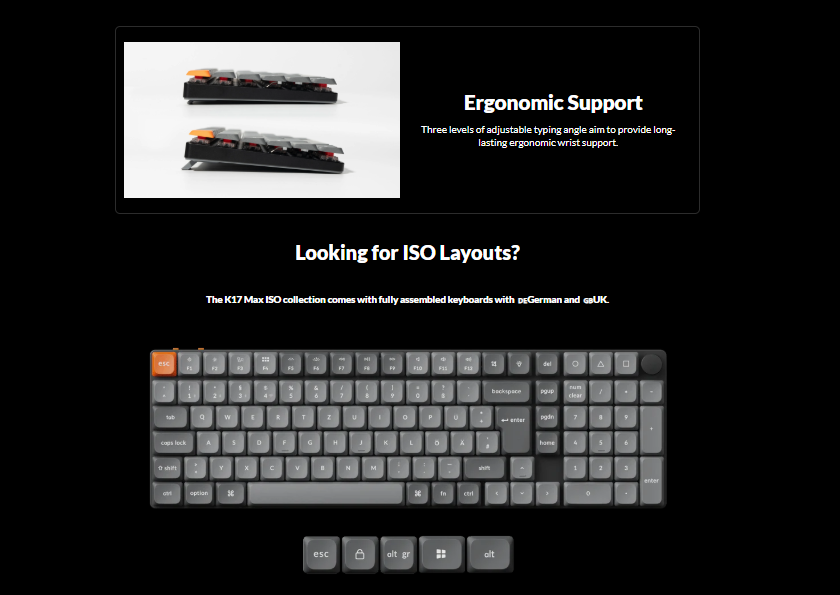

Typing Angle: 2º, 4º, and 6º
MCU: ARM Cortex-M4 32-bit STM32F402 (256KB Flash)
Operating Environment: -10 to 50℃
