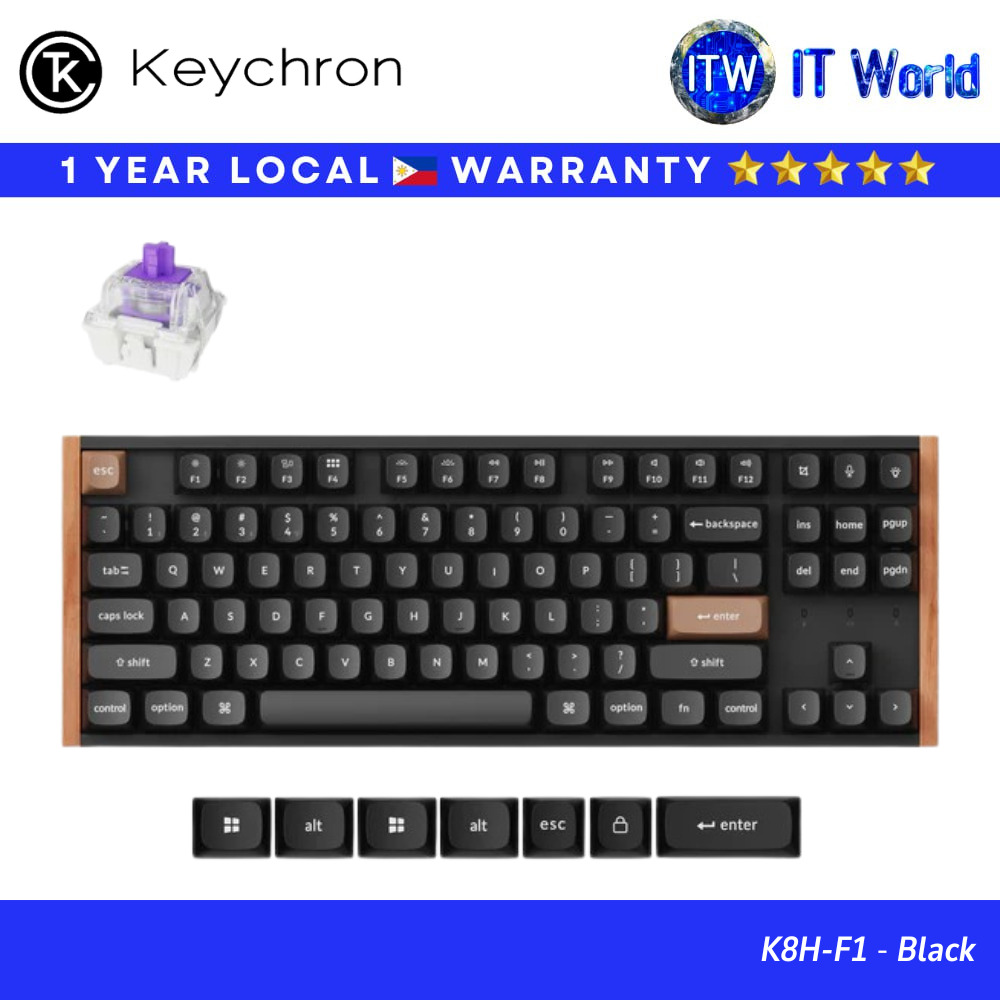

Keychron K8 HE Wireless Magnetic Switch Custom Keyboard Special Edition (Black | White) | itw

Product Name: Keychron K8 HE Wireless Magnetic Switch Custom Keyboard Special Edition (Black | White) | itw

*The K8 HE is compatible exclusively with the Gateron Double-Rail Magnetic Switch. It does not support other magnetic switches, such as the Gateron Magnetic Jade or Gateron KS-20 Magnetic switches.

Specification

Length: 363.3 mm

Width: 129.2 mm

Front Height: 34.4 mm (incl. keycap)

Back Height: 41.0 mm (incl. keycap)

Weight: Approx. 1162 g

Keycaps: OSA Double-shot keycaps, not shine-through

Frame Material: Aluminum + wood

Bottom Case Material: ABS Plastic

Stabilizer: Screw-in PCB stabilizer

Switch: Gateron double-rail magnetic switch

MCU: ARM Cortex-M4 32-bit STM32F402 (256KB Flash)

Angle: 5° / 9.34° / 12.43°

Backlight: North-facing RGB LED

Plate Material: Aluminum

Sensitivity: 0.1 mm

Rapid Trigger: Yes

Adjustable Actuation Points: 0.2 - 3.8 mm

Dynamic Keystrokes: 4-in-1 action keys

Mount Style: Tray Mount Design

Cable: Type-A to Type-C cable

*CONNECTIVITY AND POWER

Connectivity: 2.4 GHz / Bluetooth / Type-C wired

Bluetooth Version: 5.2

Bluetooth Device Name: Keychron K8 HE

Battery: 4000 mAh Rechargeable li-polymer battery

Wireless Working Time (Backlit off): Up to 110 hours (Lab test results may vary based on actual use)

N-Key Rollover (NKRO): Yes for both wireless and wired modes

Hot-swappable Suppor: Yes, compatible with Gateron double-rail magnetic switch only

Polling Rate: 1000 Hz (Wired and 2.4 GHz) / 125 Hz (Bluetooth)

Operating Environment: -10 to 50℃
