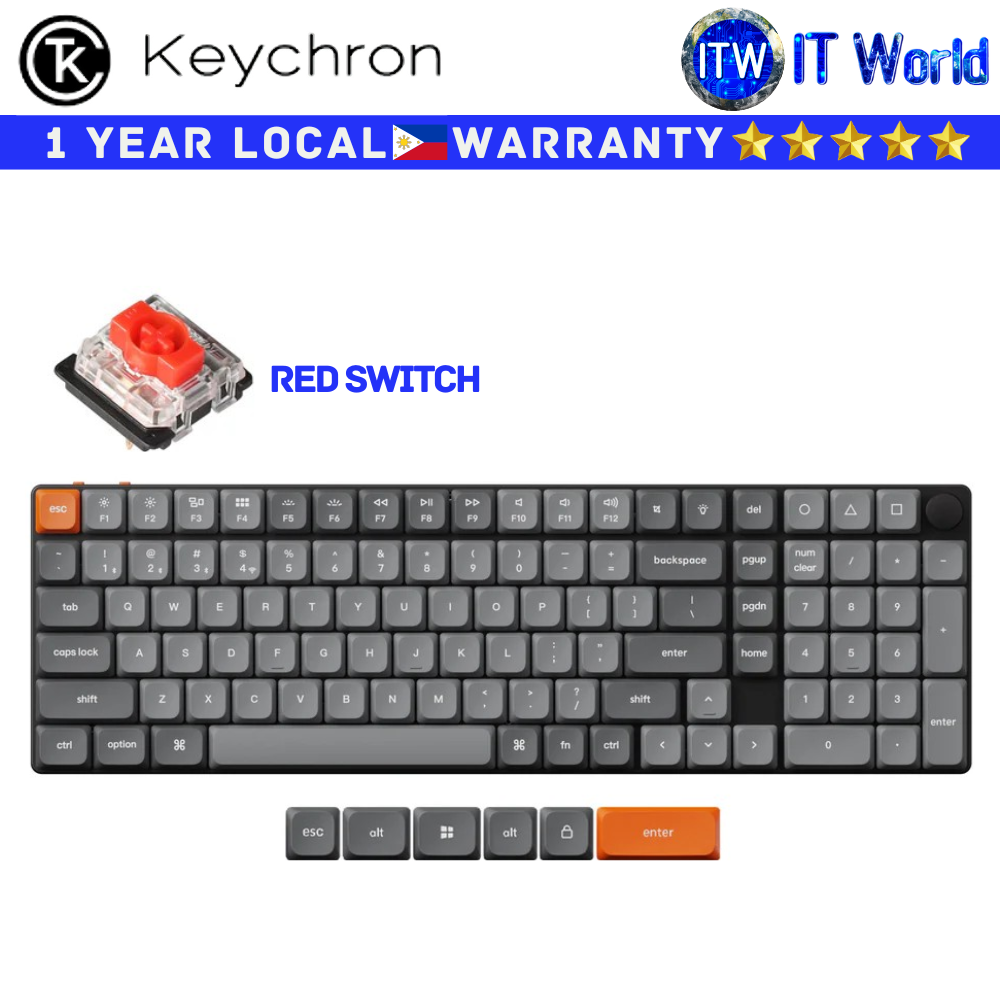

Keychron Wireless Mechanical Keyboard K17 Max QMK Black RGB Backlight (Red Switch)

Product Name: Itw | Keychron Wireless Mechanical Keyboard K17 Max QMK Black RGB Backlight (Red | Brown Switch)

Details

> Keychron K17 Max is an ultra-slim wireless custom mechanical keyboard. It supports 2.4 GHz, Bluetooth, and a wired connection. It allows anyone to master any keys or macro commands on its 96% layout through Keychron Launcher web app. Besides, it has included LSA (low profile spherical-angled) profile keycaps for both Windows and macOS, and users can hot-swap with Gateron low-profile MX mechanical switch in a breeze (for RGB Backlight Hot-Swappable Version only).

Specification

> Number of Keys: 104 (75%)

> Switches: Gateron low-profile mechanical

> Switch Face: North-facing

> Number of Multimedia Keys: 12

> Frame Material: ABS+Aluminum frame

> Keycap Material: Low-profile double-shot PBT

> Layout: ANSI

> Polling Rate (2.4GHz and Wired Mode): 1000Hz

> Polling Rate (BT Mode): 90Hz

> N-Key Rollover (NKRO): Yes for both wireless and wired modes

*The K17 Max is currently compatible with Gateron/Keychron low-profile mechanical switches only, as QMK does NOT support low-profile optical switches.

CONNECTIVITY AND POWER

> Backlit: 22 types of RGB backlight options plus endless possibilities

> Battery: 2000 mAh rechargeable li-polymer battery

> Wireless Working Time (Backlit off): Around 95 hours (Lab test result may vary by actual use)

> Wireless Working Time (RGB): Around 50 hours (Lowest brightness)

> Connection: 2.4 GHz / Bluetooth / Type-C wired

> Bluetooth version: 5.1

> Bluetooth Device Name: Keychron K17 Max

> Compatible System: macOS / Windows / Linux

PHYSICAL UNIT

> Dimension: 387 x 119 mm (15.24 x 4.69")

> Weight: 750 g / 1.65 lbs

> Height without keycap (front): 10.26 mm (0.40")

> Height without keycap (rear): 15.36 mm (0.60")

> Height incl. keycap (front): 20.32 mm (0.80")

> Height incl. keycap (rear): 26.53 mm (1.00")

> Typing Angle: 2º, 4º, and 6º

> MCU: ARM Cortex-M4 32-bit STM32F402 (256KB Flash)

> Operating Environment: -10 to 50℃
