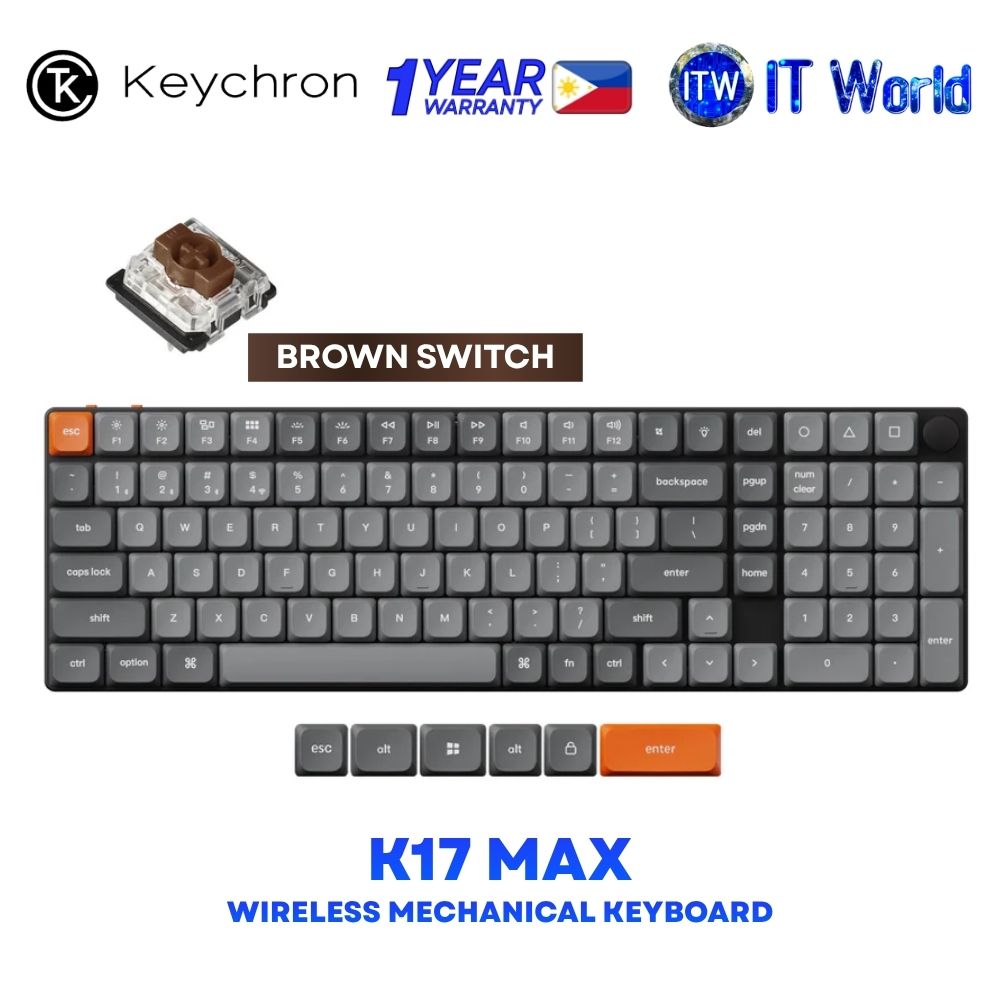

Keychron K17 Max White Backlight Ultra-Slim Wireless Mechanical Keyboard - Red | Brown Switch
⌨️ Keychron K17 Max – Ultra-slim wireless custom mechanical keyboard with 96% layout (104 keys), designed for flexible connectivity and efficient everyday use.
Product Highlights
⚡ Switches: Gateron Low-Profile Mechanical
🎛️ Switch Face: North-facing
⌨️ Layout: ANSI, 96% / 104 Keys
🔄 N-Key Rollover: Yes, for wireless and wired modes
🎯 Polling Rate: 1000Hz (2.4GHz & Wired) / 90Hz (Bluetooth)
🧩 Keycaps: Low-profile double-shot PBT with LSA profile
🖥️ Frame: ABS + Aluminum
🔧 MCU: ARM Cortex-M4 32-bit STM32F402, 256KB Flash
Connectivity & Power
📶 Connection: 2.4GHz / Bluetooth / Type-C Wired
🅱️ Bluetooth: Version 5.1
🔋 Battery: 2000mAh rechargeable Li-polymer
💻 Compatible Systems: macOS / Windows / Linux
Physical Specifications
📐 Dimension: 387 × 119 mm (15.24 × 4.69")
⚖️ Weight: 750g / 1.65 lbs
📐 Height without Keycap: 10.26mm front / 15.36mm rear
📐 Height with Keycap: 20.32mm front / 26.53mm rear
🎚️ Typing Angle: 2°, 4°, and 6°
🌡️ Operating Environment: -10°C to 50°C
Compatibility Note
📌 The K17 Max is currently compatible with Gateron/Keychron low-profile mechanical switches only, as QMK does not support low-profile optical switches.
