*Keychron K1O HE

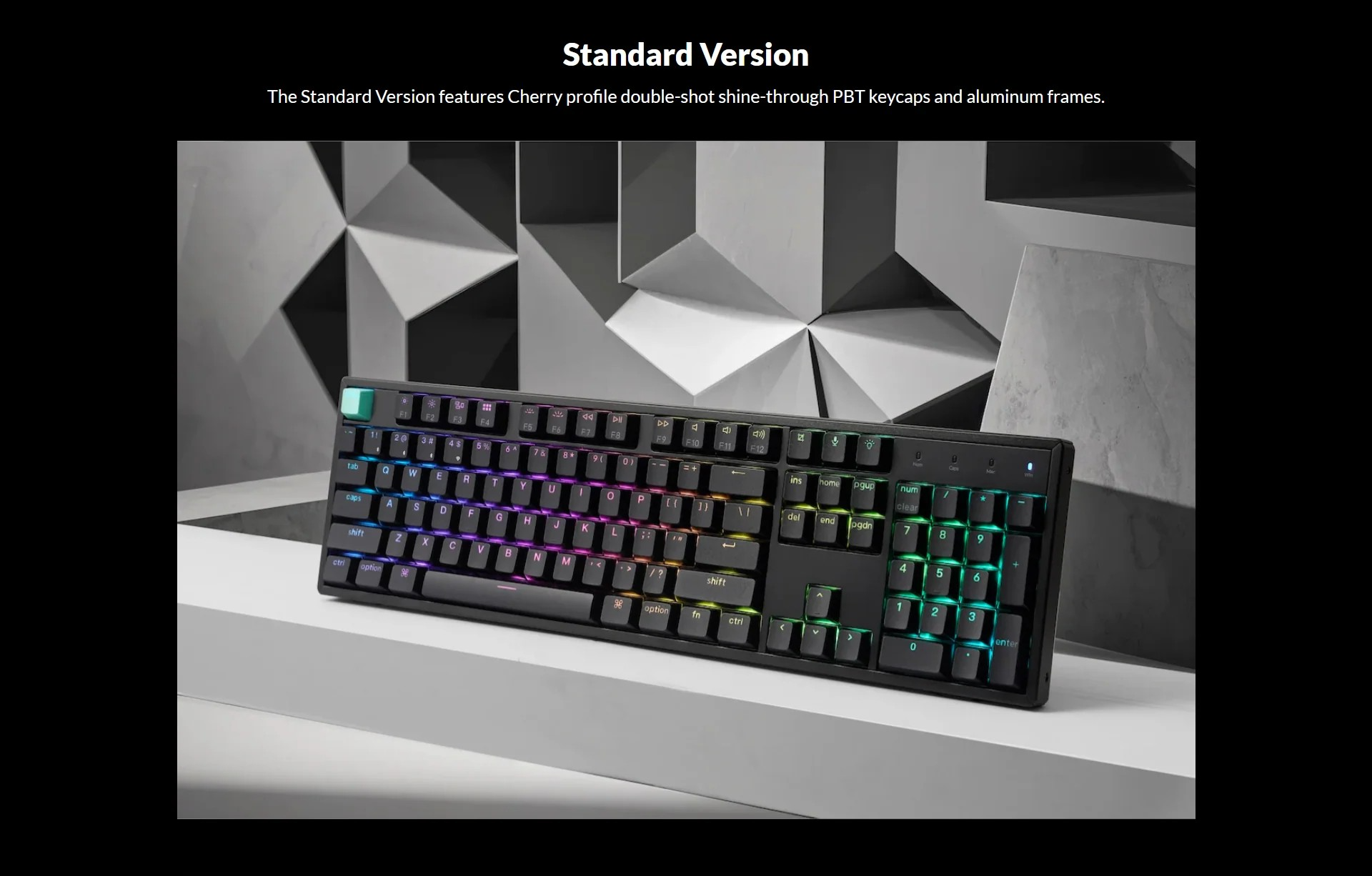

Standard Version

- The Standard Version features Cherry profile shine-through PBT keycaps and aluminum frames.

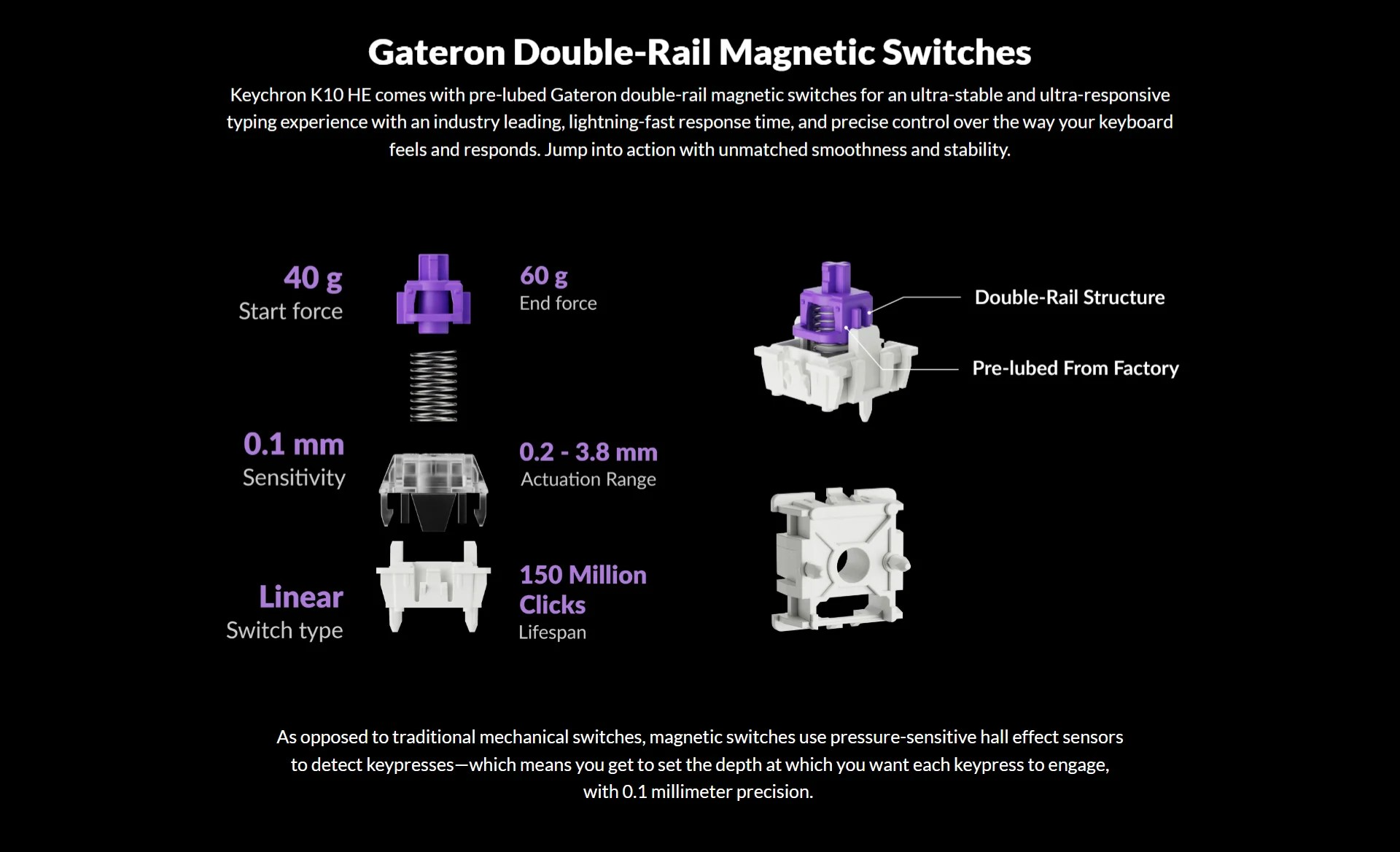

*Gateron Double-Rail Magnetic Switches

- Keychron K10 HE comes with pre-lubed Gateron double-rail magnetic switches for an ultra-stable and ultra-responsive

typing experience with an industry leading, lightning-fast response time, and precise control over the way your keyboard

feels and responds. Jump into action with unmatched smoothness and stability.

Specification

Length: 444.6 mm

Width: 129.2 mm

Front Height: 32.94 mm (incl. keycap)

Back Height: 39.52 mm (incl. keycap)

Weight: Approx. 1310 g

Keycaps: Cherry profile double-shot shine-through PBT keycaps

Frame Material: Aluminum + wood

Bottom Case Material: ABS Plastic

Stabilizer: Plate-Mounted Stabilizer

Switch: Gateron double-rail magnetic switch

MCU: ARM Cortex-M4 32-bit STM32F402 (256KB Flash)

Angle: 3.5º / 7.7º / 11º

Backlight: North-facing RGB LED

Plate Material: Aluminum

Sensitivity: 0.1 mm

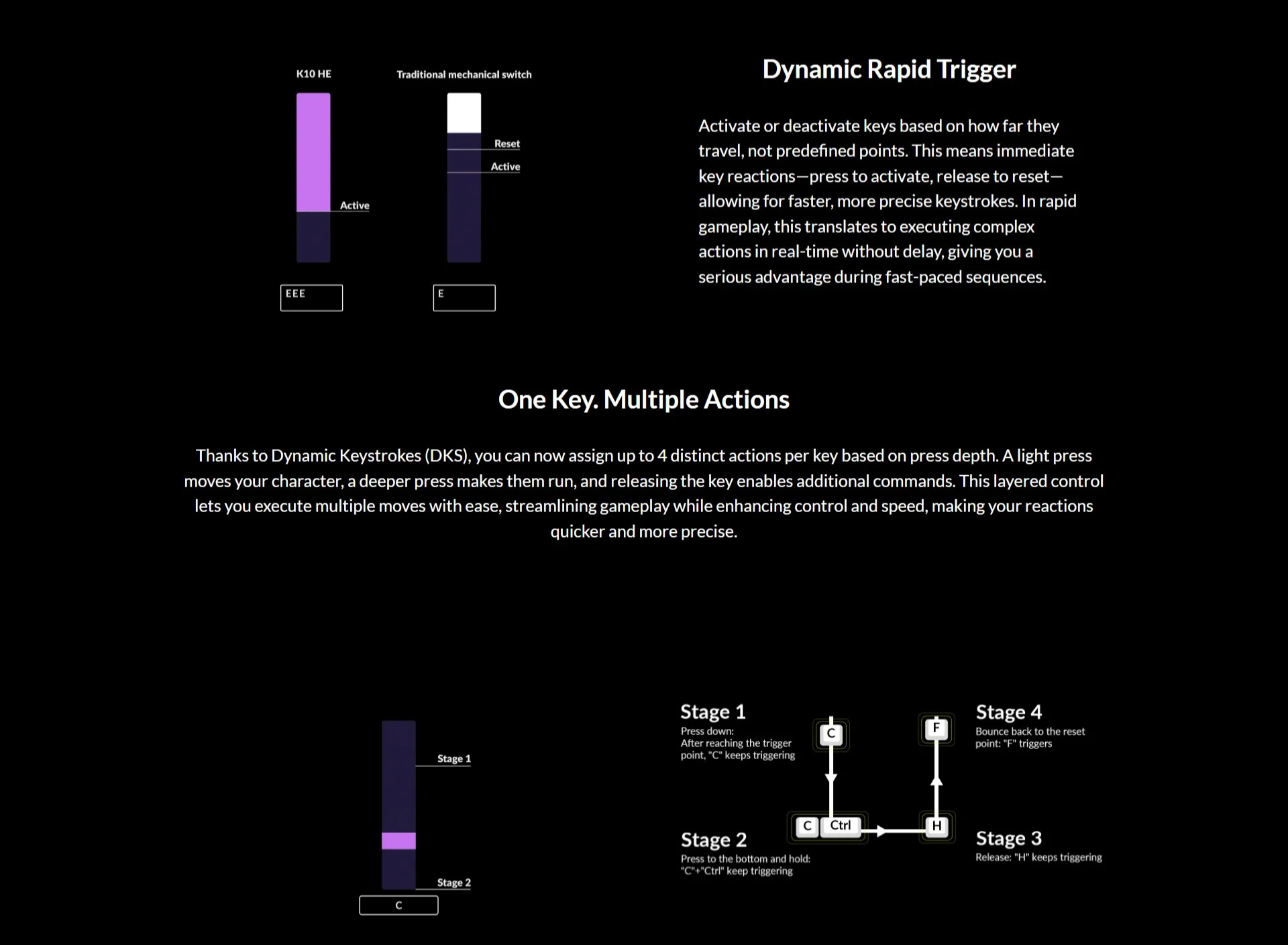

Rapid Trigger: Yes

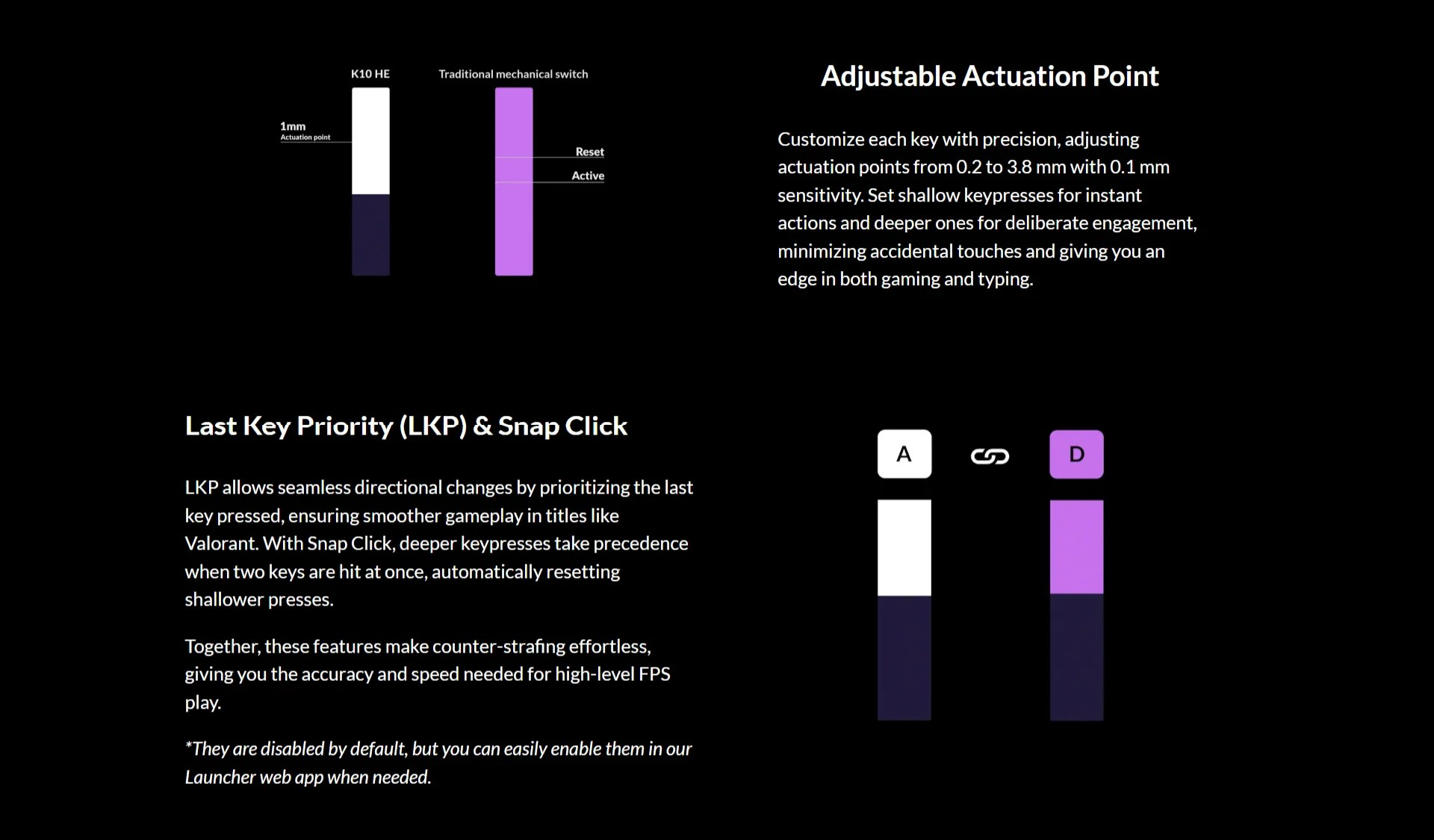

Adjustable Actuation Points: 0.2 - 3.8 mm

Dynamic Keystrokes: 4-in-1 action keys

Mount Style: Tray Mount Design

Cable: Type-A to Type-C cable

CONNECTIVITY AND POWER

Connectivity: 2.4 GHz / Bluetooth / Type-C wired

Bluetooth Version: 5.2

Bluetooth Device Name: Keychron K10 HE

Battery: 4000 mAh Rechargeable li-polymer battery

Wireless Working Time (Backlit off): Up to 120 hours (Lab test results may vary based on actual use)

N-Key Rollover (NKRO): Yes for both wireless and wired modes

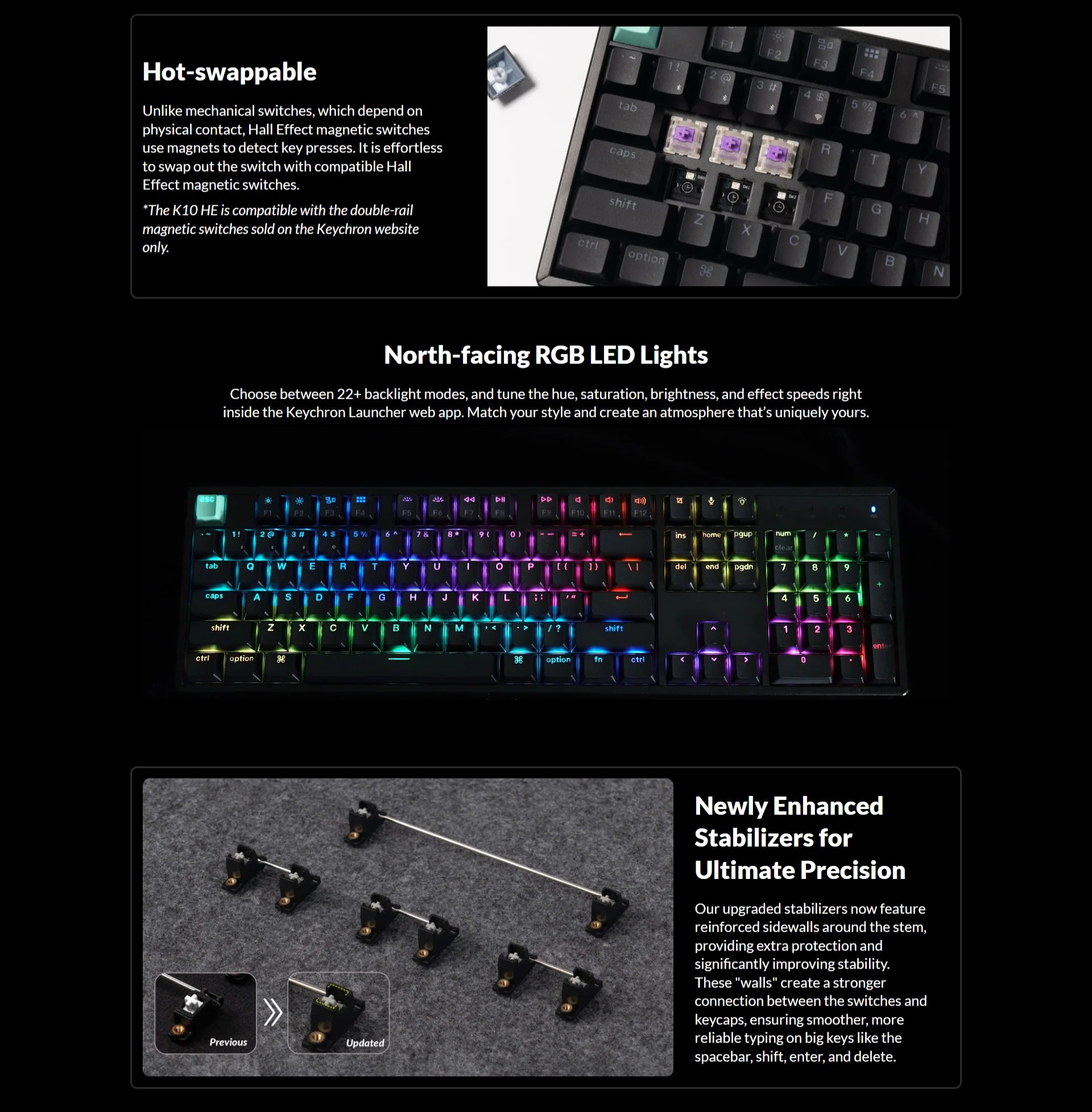

Hot-swappable Support: Yes, compatible with Gateron double-rail magnetic switch only

Polling Rate: 1000 Hz (Wired and 2.4 GHz) / 125 Hz (Bluetooth)

Operating Environment: -10 to 50℃
