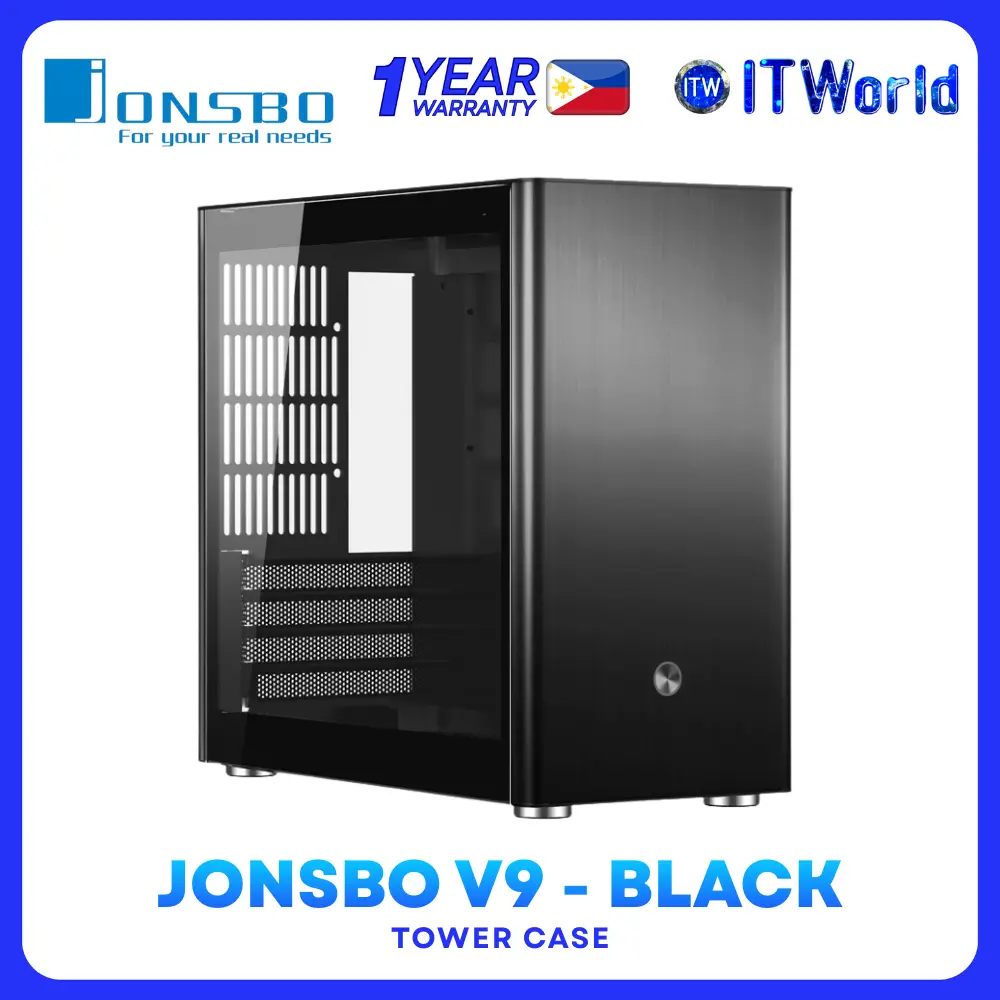

Jonsbo V9 - ITX / M-ATX Aluminum PC Case – Compact Airflow Chassis
Build smarter, cooler, and more premium with the Jonsbo V9, a compact aluminum PC case designed for users who want small size, great airflow, and cost-effectiveness without compromising style ⚙️💨
Made with Jonsbo’s signature brushed anodized aluminum, this chassis brings a sleek metallic finish plus excellent heat dissipation—perfect for modern gaming and productivity setups. Choose between Gray and Black to match your build aesthetic! 🎨🖥️
⭐ Why ITW Gamers & Builders Choose the V9
🔥 Superior Airflow Design – Supports up to 4×120mm fans (top + bottom) + 1×90mm rear fan
🧊 Vertical Air Duct Cooling – Optimized hot-air escape for better temps
🔩 Premium Aluminum Build – Brushed anodized finish for durability and heat efficiency
🖥️ mATX / ITX Support – More flexibility for hardware choices
🧱 Tempered Glass Side Panel – Showcase your high-performance setup
🗜️ Compact Yet Capable Size – Small footprint but wide hardware compatibility
🎮 Supports Full-Size GPUs – Up to 290mm graphics cards
🔌 Front I/O Convenience – Dual USB 3.0 + Audio & Mic ports
📌 Full Specifications
Model: Jonsbo V9
Color Variants: Black / Gray
Dimensions: 165mm (W) × 337mm (D) × 317mm (H)
Materials: Aluminum alloy panels + steel frame + tempered glass side panel
Motherboard Support: ITX / mATX
Drive Bay: 1×2.5” or 1×3.5”
Cooling Support:
Top: 2×120mm (optional)
Bottom: 2×120mm (optional)
Rear: 1×90mm (optional)
PSU Support: SFX / SFX-L (max length 170mm)
Max CPU Cooler Height: 133mm
Max GPU Length: 290mm
Front I/O: 2×USB 3.0, 1×Audio, 1×Mic
Expansion Slots: 4
Net Weight: 2.7kg
