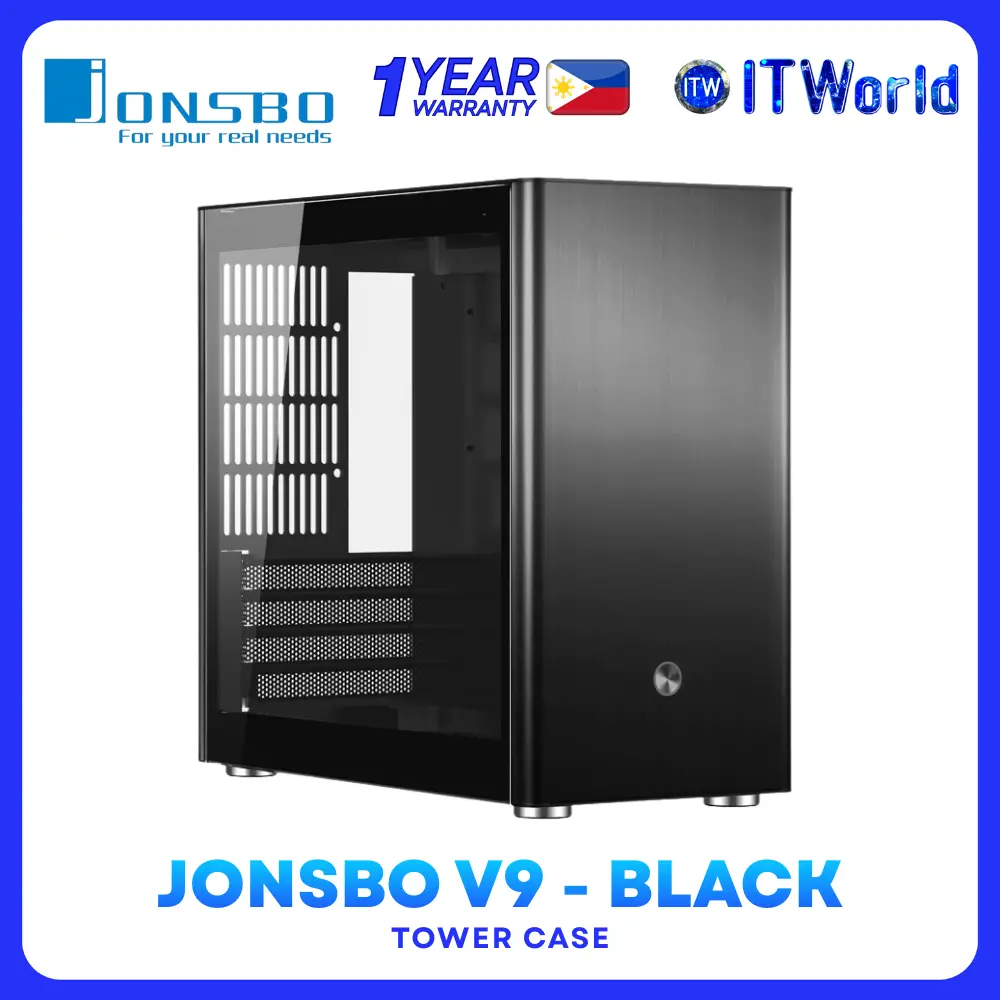

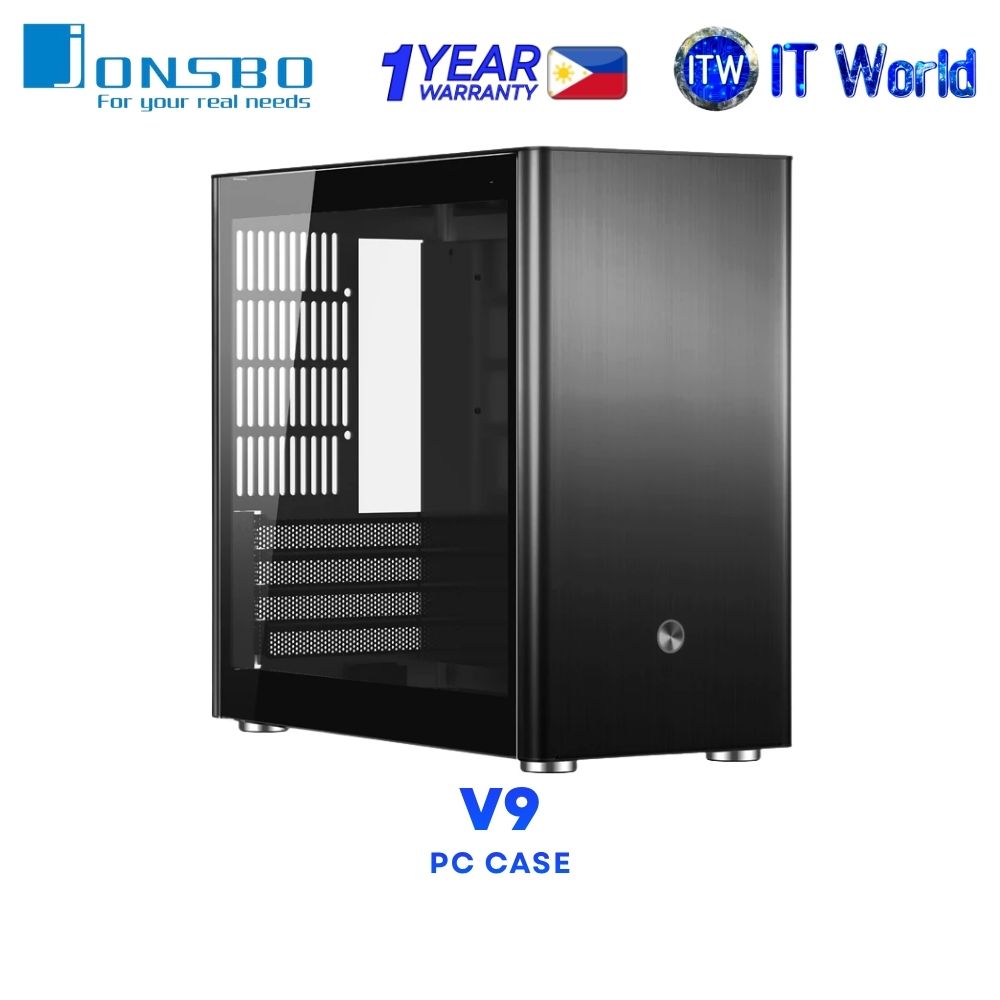

Jonsbo V9 Compact ITX / M-ATX Aluminum Airflow Tempered Glass PC Case - Black
✨ Designed for users who want a compact PC build without compromising airflow, hardware choices, and aluminum construction. The Jonsbo V9 combines a compact chassis with a vertical airflow design and tempered glass panel for a clean, modern setup.
Compact & Airflow-Focused Design
✨ Built to balance small size, good heat dissipation, and cost-effectiveness, while maintaining an aluminum chassis.
Vertical Airflow Support
🌬️ Supports up to 4 × 120mm fans on the top and bottom to create a vertical air duct for improved airflow around your hardware. A rear 90mm fan is also supported.
Motherboard Compatibility
🧩 Supports ITX / M-ATX motherboards, giving users more flexibility when selecting compatible hardware.
Aluminum Construction
✨ Features an aluminum alloy panel + steel panel with a tempered glass panel. JONSBO's brushed aluminum anodizing process highlights the metallic texture while helping provide heat dissipation conditions for the hardware.
Specifications
🏷️ Brand: Jonsbo
📦 Model: V9
🎨 Color: Black
🧱 Material: Aluminum alloy panel + Steel panel + Tempered glass panel
📐 Case Dimension: 165mm (W) × 337mm (D) × 317mm (H)
🖥️ Motherboard: ITX / M-ATX
💾 Drive Bay: 2.5" × 1 or 3.5" × 1
🌬️ Top Cooling: 2 × 120mm Fan (Optional)
🌬️ Bottom Cooling: 2 × 120mm Fan (Optional)
🌬️ Rear Cooling: 1 × 90mm Fan (Optional)
⚡ Power Supply: SFX / SFX-L, not longer than 170mm
❄️ CPU Cooler Height: Not higher than 133mm
🎮 Display Card Length: Not longer than 290mm
🔌 Front I/O: USB 3.0 × 2 / AUDIO × 1 / MIC × 1
🧩 Expansion Slot: 4
⚖️ Net Weight: 2.7kg
