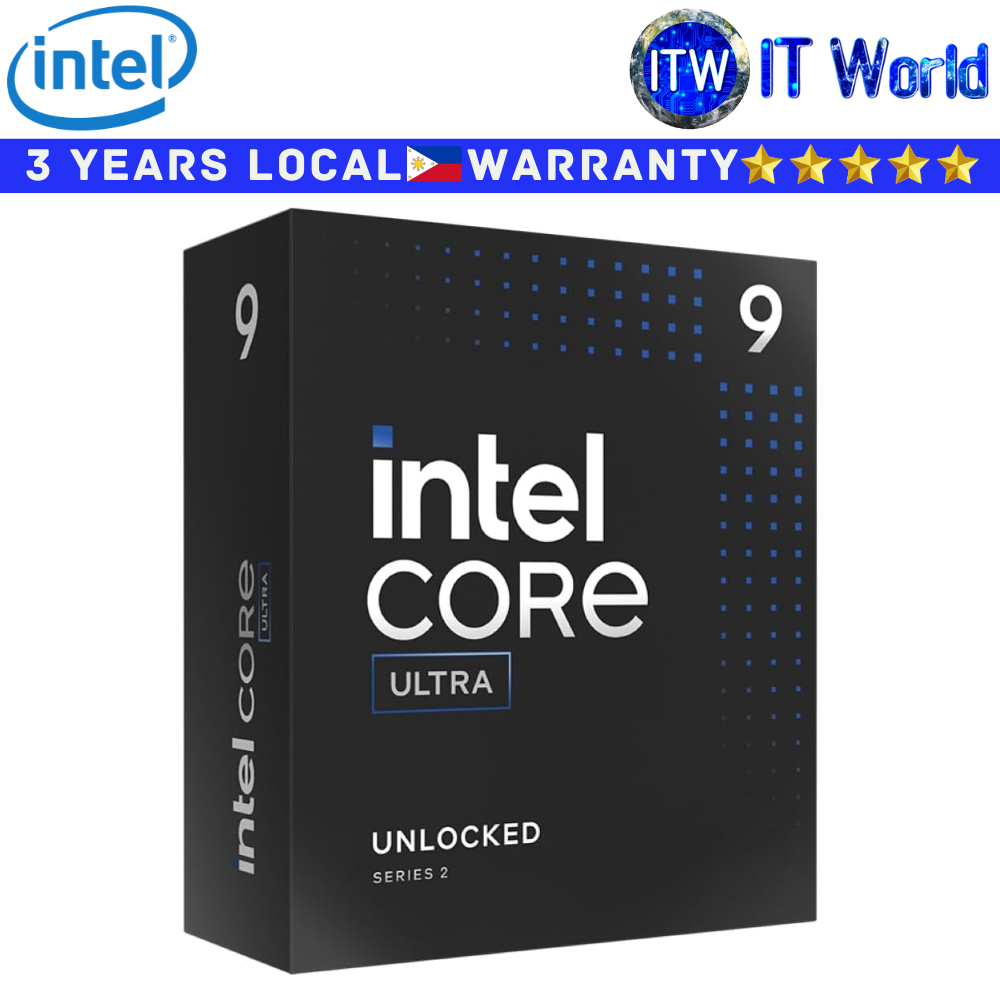

Product Name: Itw | Intel Core Ultra 9 285 36MB Cache up to 5.60Ghz Desktop Processor
Specification
Essentials
> Product Collection: Intel® Core™ Ultra Processors (Series 2)
> Code Name: Products formerly Arrow Lake
> Vertical Segment: Desktop
> Processor Number: 285
> Overall Peak TOPS (Int8): 36
CPU Specifications
> Total Cores: 24
> # of Performance-cores: 8
> # of Efficient-cores: 16
> Total Threads: 24
> Max Turbo Frequency: 5.6GHz
> Intel® Thermal Velocity Boost Frequency: 5.6GHz
> Intel® Turbo Boost Max Technology 3.0 Frequency:‡ 5.5GHz
> Performance-core Max Turbo Frequency: 5.4GHz
> Efficient-core Max Turbo Frequency: 4.6GHz
> Performance-core Base Frequency: 2.5GHz
> Efficient-core Base Frequency: 1.9GHz
> Cache: 36MB Intel® Smart Cache
> Total L2 Cache: 40MB
> Processor Base Power: 65W
> Maximum Turbo Power: 182W
> Intel® Deep Learning Boost (Intel® DL Boost) on CPU: Yes
> AI Software Frameworks Supported by CPU: OpenVINO™,WindowsML, DirectML, ONNX RT,WebNN
> CPU Lithography: TSMC N3B
Supplemental Information
> Marketing Status: Launched
> Launch Date: Q1'25
> Embedded Options Available: Yes
> Use Conditions: PC/Client/Tablet, Workstation
Memory Specifications
> Max Memory Size (dependent on memory type): 192 GB
> Memory Types: Up to DDR5 6400 MT/s
> Max # of Memory Channels: 2
> ECC Memory Supported‡: Yes
GPU Specifications
> GPU Name‡: Intel® Graphics
> Graphics Base Frequency: 300 MHz
> Graphics Max Dynamic Frequency: 2 GHz
> GPU Peak TOPS (Int8): 8
> Graphics Output: DP2.1 UHBR20, HDM2.1 FRL 12GHz, eDP1.4b Xe-cores4
> Max Resolution (HDMI)‡: 4K @ 60Hz (HDMI 2.1 TMDS) 8K @ 60Hz (HDMI2.1 FRL)
> Max Resolution (DP)‡: 8K @ 60Hz
> Max Resolution (eDP - Integrated Flat Panel)‡: 4K @ 60Hz
> DirectX* Support: 12
> OpenGL* Support: 4.5
> OpenCL* Support: 3
> Intel® Quick Sync Video: Yes
> # of Displays Supported‡: 4
> Device ID: 0x7D67
> Intel® Deep Learning Boost (Intel® DL Boost) on GPU: Yes
NPU Specifications
> NPU Name‡: Intel® AI Boost
> NPU Peak TOPS (Int8): 13
> Sparsity Support: Yes
> Windows Studio Effects Support: Yes
> AI Software Frameworks Supported by NPU: OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN
Expansion Options
> Direct Media Interface (DMI) Revision: 4
> Max # of DMI Lanes: 8
> Intel® Thunderbolt™ 4: Yes
> Scalability: 1S Only
> PCI Express Revision: 5.0 and 4.0
> PCI Express Configurations‡: Up to 1x16+2x4, 2x8+2x4, 1x8+4x4
> Max # of PCI Express Lanes: 24
Package Specifications
> Sockets Supported: FCLGA1851
> Thermal Solution Specification: PCG 2022C
> Max Operating Temperature: 105 °C
Advanced Technologies
> Intel® Volume Management Device (VMD): Yes
> Intel® Gaussian & Neural Accelerator: 3.5
> Intel® Thread Director: Yes
> Intel® Speed Shift Technology: Yes
> Intel® Thermal Velocity Boost: Yes
> Intel® Turbo Boost Max Technology 3.0‡: Yes
> Intel® Turbo Boost Technology‡: 2.0
> Intel® 64‡: Yes
> Instruction Set: 64-bit
> Instruction Set Extensions: Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
> Idle States: Yes
> Enhanced Intel SpeedStep® Technology: Yes
> Thermal Monitoring Technologies: Yes
Security & Reliability
> Intel vPro® Eligibility‡: Intel vPro® Enterprise
> Intel® Threat Detection Technology (TDT): Yes
> Intel® Active Management Technology (AMT)‡: Yes
> Intel® Standard Manageability (ISM)‡: Yes
> Intel® Remote Platform Erase (RPE)‡: Yes
> Intel® One-Click Recovery‡: Yes
> Intel® Control-Flow Enforcement Technology: Yes
> Intel® Total Memory Encryption - Multi Key: Yes
> Intel® AES New Instructions: Yes
> Secure Key: Yes
> Intel® Trusted Execution Technology‡: Yes
> Execute Disable Bit‡: Yes
> Intel® OS Guard: Yes
> Intel® Boot Guard: Yes
> Mode-based Execute Control (MBEC): Yes
> Intel® Stable IT Platform Program (SIPP): Yes
> Intel® Virtualization Technology with Redirect Protection (VT-rp)‡: Yes
> Intel® Virtualization Technology (VT-x)‡: Yes
> Intel® Virtualization Technology for Directed I/O (VT-d)‡: Yes
> Intel® VT-x with Extended Page Tables (EPT)‡: Yes
