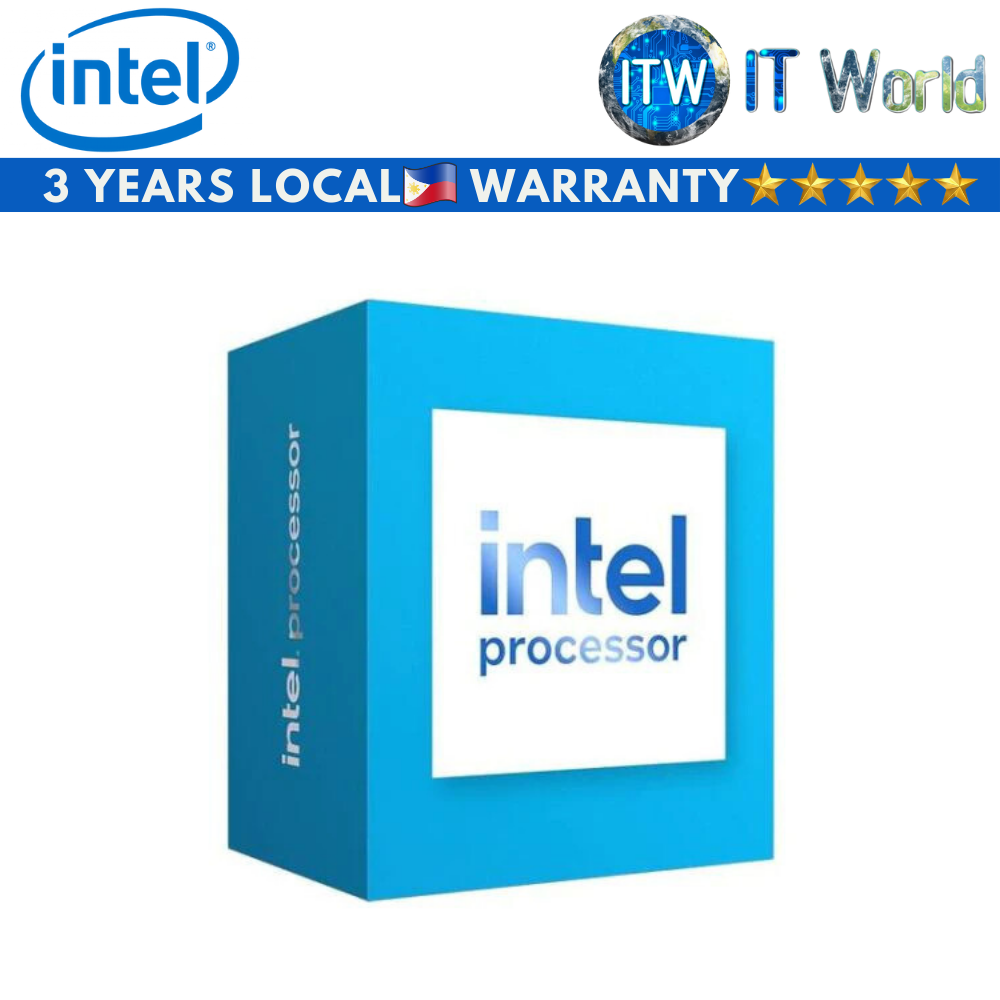

Product Name: Intel Processor 300 6M Cache, up to 3.90 GHz Desktop Processor
Specification
Essentials
Product Collection: Intel Processor for Desktop
Code Name: Products formerly Raptor Lake
Vertical Segment: Desktop
Processor Number: 300
Lithography: Intel 7
Recommended Customer Price: $82.00-$92.00
Use Conditions: PC/Client/Tablet
CPU Specifications
Total Cores: 2
# of Performance-cores: 2
# of Efficient-cores: 0
Total Threads: 4
Performance-core Base Frequency: 3.9 GHz
Cache: 6 MB Intel Smart Cache
Total L2 Cache: 2.5 MB
Processor Base Power: 46 W
Intel Deep Learning Boost (Intel DL Boost) on CPU: Yes
Supplemental Information
Marketing Status: Launched
Launch Date: Q1'24
Embedded Options Available: No
Memory Specifications
Max Memory Size (dependent on memory type): 192 GB
Memory Types: Up to DDR5 4800 MT/s Up to DDR4 3200 MT/s
Max # of Memory Channels: 2
Max Memory Bandwidth: 76.8 GB/s
GPU Specifications
GPU Name‡: Intel UHD Graphics 710
Graphics Base Frequency: 300 MHz
Graphics Max Dynamic Frequency: 1.45 GHz
Graphics Output: eDP 1.4b | DP 1.4a | HDMI 2.1
Execution Units: 16
Max Resolution (HDMI)‡: 4096 x 2160 @ 60Hz
Max Resolution (DP)‡: 7680 x 4320 @ 60Hz
Max Resolution (eDP - Integrated Flat Panel)‡: 5120 x 3200 @ 120Hz
DirectX* Support: 12
OpenGL* Support: 4.5
OpenCL* Support: 3
Multi-Format Codec Engines: 1
Intel Quick Sync Video: Yes
Intel Clear Video HD Technology: Yes
# of Displays Supported ‡: 4
Device ID: 0x4693
Expansion Options
Direct Media Interface (DMI) Revision: 4
Max # of DMI Lanes: 8
Scalability: 1S Only
PCI Express Revision: 5.0 and 4.0
PCI Express Configurations ‡: Up to 1x16+4 | 2x8+4
Max # of PCI Express Lanes: 20
Package Specifications
Sockets Supported: FCLGA1700
Max CPU Configuration: 1
Thermal Solution Specification: PCG 2020C
TJUNCTION: 100°C
Package Size: 45.0 mm x 37.5 mm
Advanced Technologies
Intel Gaussian & Neural Accelerator: 3
Intel Thread Director: No
Intel Speed Shift Technology: Yes
Intel Hyper-Threading Technology ‡: Yes
Intel 64 ‡: Yes
Instruction Set: 64-bit
Instruction Set Extensions: Intel SSE4.1 | Intel SSE4.2 | Intel AVX2
Idle States: Yes
Enhanced Intel SpeedStep Technology: Yes
Thermal Monitoring Technologies: Yes
Intel Volume Management Device (VMD): Yes
Security & Reliability
Intel Standard Manageability (ISM) ‡: Yes
Intel Control-Flow Enforcement Technology: Yes
Intel AES New Instructions: Yes
Secure Key: Yes
Execute Disable Bit ‡: Yes
Intel OS Guard: Yes
Intel Boot Guard: Yes
Mode-based Execute Control (MBEC): Yes
Intel Virtualization Technology (VT-x) ‡: Yes
Intel Virtualization Technology for Directed I/O (VT-d) ‡: Yes
Intel VT-x with Extended Page Tables (EPT) ‡: Yes
