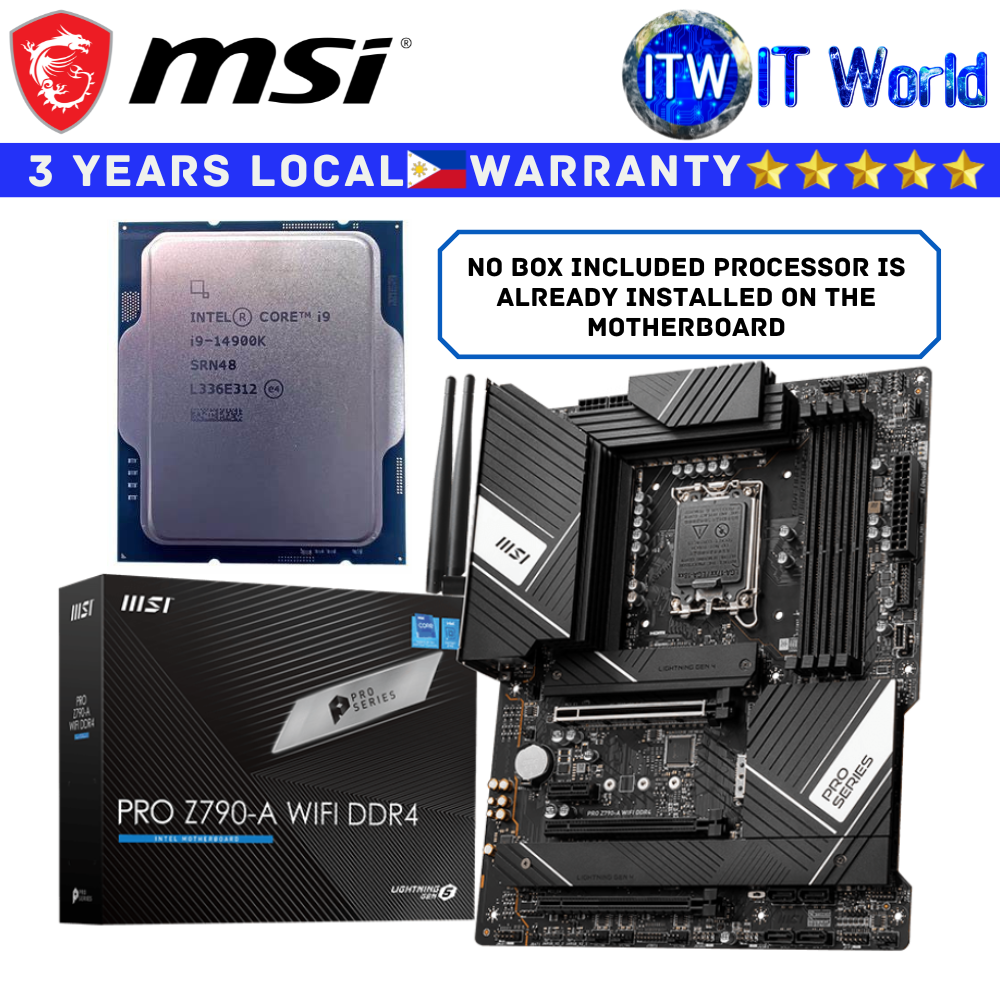

Product Name: Itw | MSI Motherboard Bundle Intel Core i9-14900K Tray Type Processor with MSI Pro Z790-A Wifi DDR4

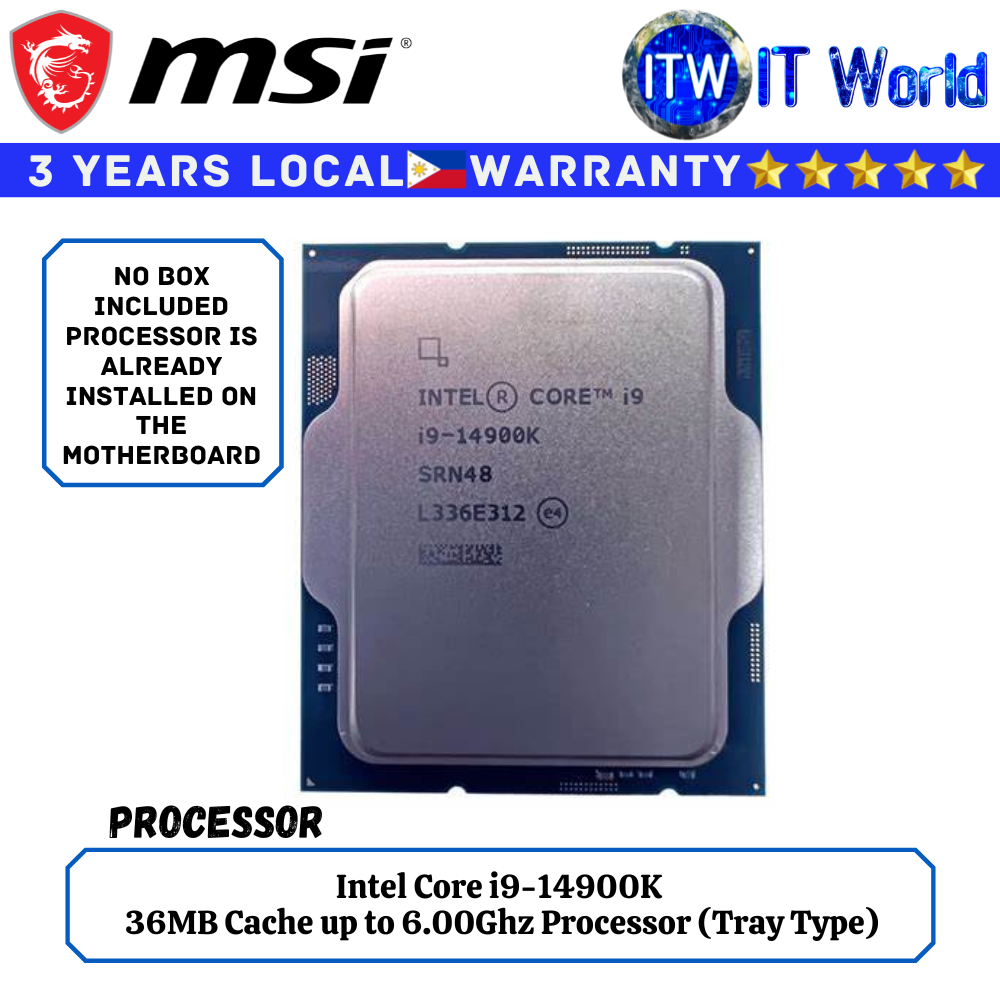

* Intel Core i9-14900K *
CPU Specifications
> Total Cores: 24
> # of Performance-cores: 8
> # of Efficient-cores: 16
> Total Threads: 32
> Max Turbo Frequency: 6GHz
> Intel® Thermal Velocity Boost Frequency: 6GHz
> Intel® Turbo Boost Max Technology 3.0 Frequency ‡: 5.8GHz
> Performance-core Max Turbo Frequency: 5.6GHz
> Efficient-core Max Turbo Frequency: 4.4GHz
> Performance-core Base Frequency: 3.2GHz
> Efficient-core Base Frequency: 2.4GHz
> Cache: 36 MB Intel® Smart Cache
> Total L2 Cache: 32MB
> Processor Base Power: 125W
> Maximum Turbo Power: 253W
Memory Specifications
> Max Memory Size (dependent on memory type): 192GB
> Memory Types
- Up to DDR5 5600MT/s
- Up to DDR4 3200MT/s
> Max # of Memory Channels: 2
> Max Memory Bandwidth: 89.6GB/s
> ECC Memory Supported ‡: Yes
GPU Specifications
> GPU Name‡ Intel® UHD Graphics: 770
> Graphics Base Frequency: 300 MHz
> Graphics Max Dynamic Frequency: 1.65 GHz
> Graphics Output: eDP 1.4b, DP 1.4a, HDMI 2.1
> Execution Units: 32
> Max Resolution (HDMI)‡: 4096 x 2160 @ 60Hz
> Max Resolution (DP)‡: 7680 x 4320 @ 60Hz
> Max Resolution (eDP - Integrated Flat Panel)‡: 5120 x 3200 @ 120Hz
> DirectX* Support: 12
> OpenGL* Support: 4.5
> OpenCL* Support: 3.0
> Multi-Format Codec Engines: 2
> Intel® Quick Sync Video: Yes
> Intel® Clear Video HD Technology: Yes
> # of Displays Supported ‡: 4
> Device: ID0xA780

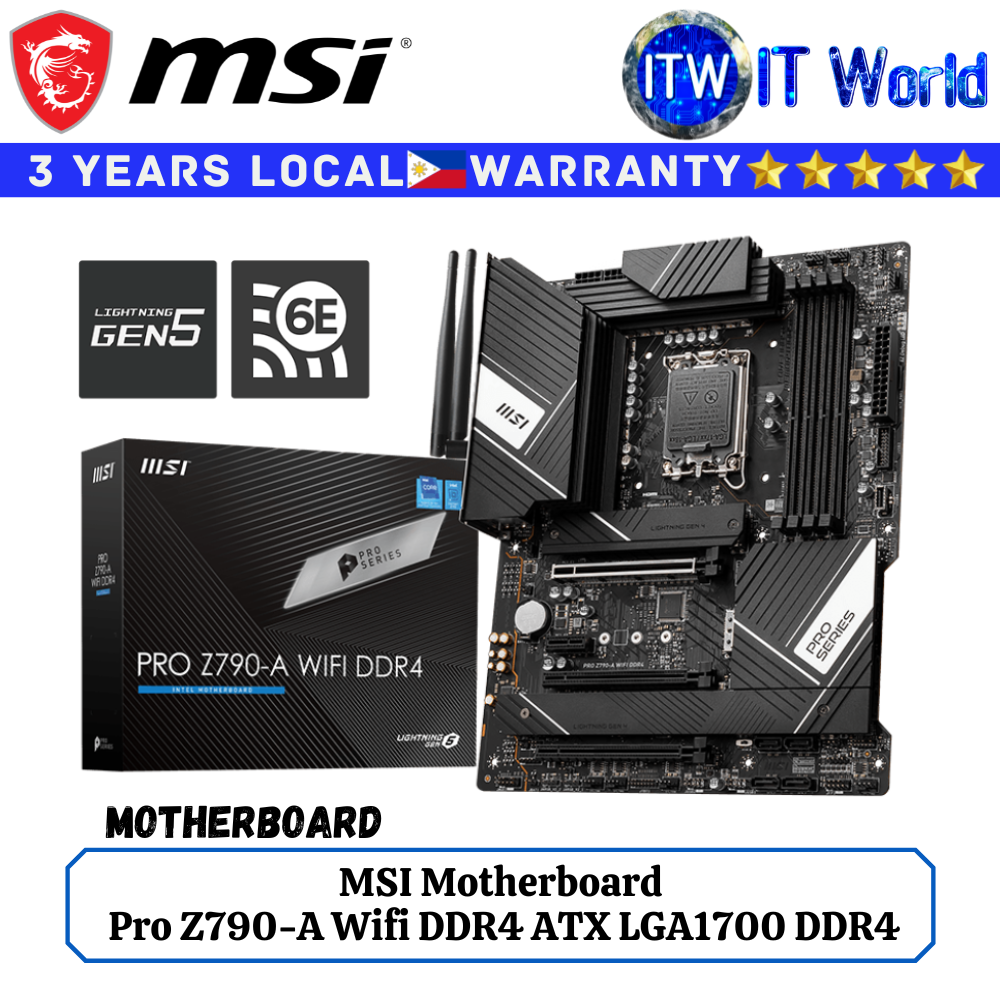

* MSI PRO Z790-A WIFI DDR4 *
Chipset
> INTEL Z790
CPU
> Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
> LGA 1700
Memory
> 4x DDR4, Maximum Memory Capacity 128GB
> Memory Support 5333/ 5200/ 5066/ 5000/ 4800/ 4600/ 4533/ 4400/ 4266/ 4000/ 3866/ 3733/ 3600/ 3466/ 3333(O.C.)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133(By JEDCE & POR)
> Max. overclocking frequency:
- 1DPC 1R Max speed up to 5333+ MHz
- 1DPC 2R Max speed up to 4800+ MHz
- 2DPC 1R Max speed up to 4400+ MHz
- 2DPC 2R Max speed up to 4000+ MHz
> Supports Dual-Channel mode
> Supports non-ECC, un-buffered memory
> Supports Intel® Extreme Memory Profile (XMP)
Onboard Graphics
> 1x HDMI™
- Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz*
> 1x DisplayPort
- Support DP 1.4, maximum resolution of 8K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot
> 3x PCI-E x16 slot
> 1x PCI-E x1 slot
> PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
> PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
> PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
> PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
Audio
> Realtek® ALC4080 Codec
> 7.1-Channel USB High Performance Audio
> Supports S/PDIF output
Storage
> 4x M.2
- M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices
- M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
- M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
- M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
> 6x SATA 6G
USB
> 2 x USB 2.0 (Rear)
> 4 x USB 2.0 (Front)
> 2 x USB 2.0 ports (Rear)
> 4 x USB 2.0 ports (Front)
> 2 x USB 5Gbps Type A (Rear)
> 2 x USB 5Gbps Type A (Front)
> 3 x USB 10Gbps Type A (Rear)
> 1 x USB 10Gbps Type C (Front)
> 1 x USB 20Gbps Type C (Rear)
LAN
> Intel® 2.5Gbps LAN
WIRELESS LAN & BLUETOOTH
> Intel® Wi-Fi 6E
- The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
- Supports 802.11 a/ b/ g/ n/ ac/ ax
- Supports Bluetooth® 5.3, FIPS, FISMA
* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
BACK PANEL PORTS
> DisplayPort
> USB 2.0
> 2.5G LAN
> Wi-Fi / Bluetooth
> Audio Connectors
> HDMI™
> Flash BIOS Button
> USB 3.2 Gen 1 5Gbps (Type-A)
> USB 3.2 Gen 2 10Gbps (Type-A)
> USB 3.2 Gen 2x2 20Gbps (Type-C)
> S/PDIF-OUT
PCB Info
> ATX / 243.84mm x 304.8mm
