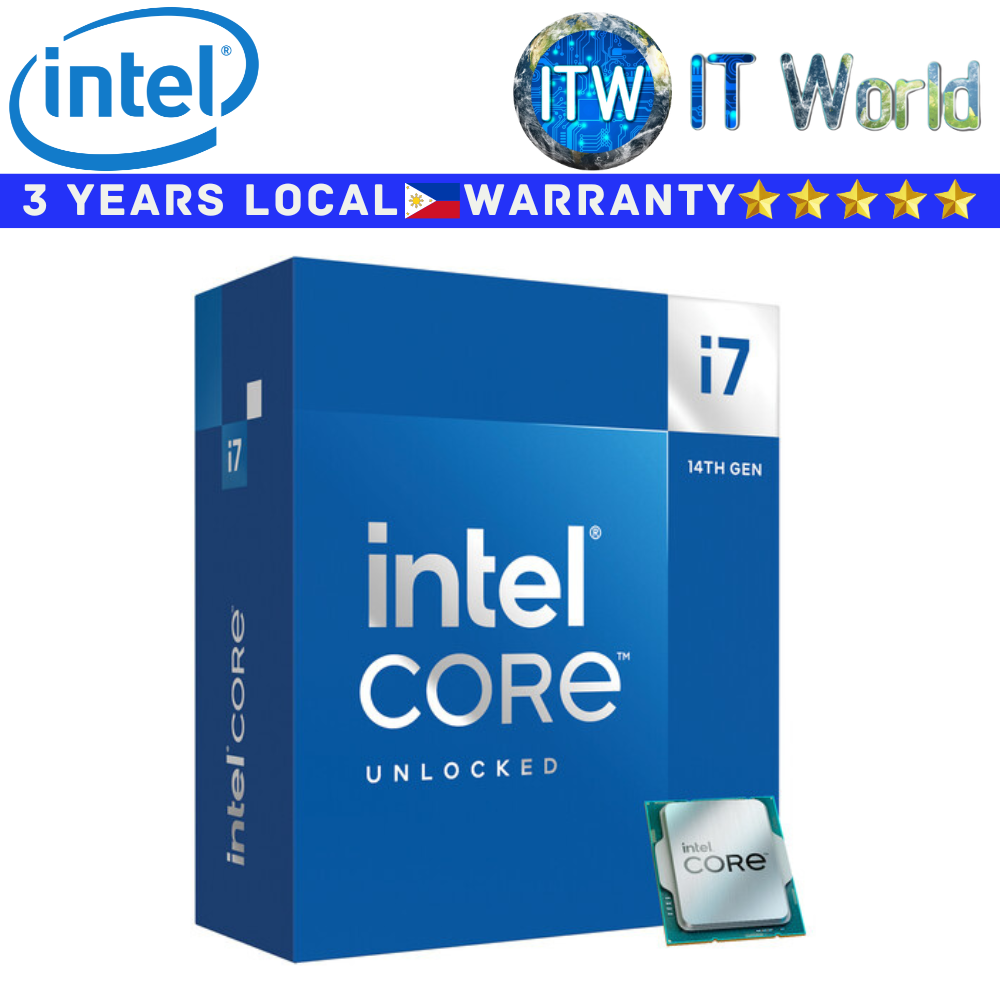

Product Name: Itw | Intel Core i7-14700F 33M Cache, up to 5.40Ghz Desktop Processor
Specification
Essentials
* Product Collection: Intel® Core™ i7 Processors (14th gen)
* Code Name: Products formerly Raptor Lake
* Vertical Segment: Desktop
* Processor Number: i7-14700F
* Lithography: Intel 7
CPU Specs
* Total Cores: 20
* # of Performance-cores: 8
* # of Efficient-cores: 12
* Total Threads: 28
* Max Turbo Frequency: 5.4 GHz
* Intel® Turbo Boost Max Technology 3.0 Frequency ‡: 5.4 GHz
* Performance-core Max Turbo Frequency: 5.3 GHz
* Efficient-core Max Turbo Frequency: 4.2 GHz
* Performance-core Base Frequency: 2.1 GHz
* Efficient-core Base Frequency: 1.5 GHz
* Cache: 33 MB Intel® Smart Cache
* Total L2 Cache: 28 MB
* Processor Base Power: 65 W
* Maximum Turbo Power: 219 W
Supplemental Information
* Marketing Status: Launched
* Launch Date: Q1'24
* Embedded Options Available: No
* Use Conditions: PC/Client/Tablet
Memory Specifications
* Max Memory Size (dependent on memory type): 192 GB
* Memory Types
> Up to DDR5 5600 MT/s
> Up to DDR4 3200 MT/s
* Max # of Memory Channels: 2
* Max Memory Bandwidth: 89.6 GB/s
Expansion Options
* Direct Media Interface (DMI) Revision: 4.0
* Max # of DMI Lanes: 8
* Scalability: 1S Only
* PCI Express Revision: 5.0 and 4.0
* PCI Express Configurations ‡: Up to 1x16+4, 2x8+4
* Max # of PCI Express Lanes: 20
Package Specifications
* Sockets Supported: FCLGA1700
* Max CPU Configuration: 1
* Thermal Solution Specification: PCG 2020C
* TJUNCTION: 100°C
* Package Size: 45.0 mm x 37.5 mm
* Max Operating Temperature: 100 °C
Advanced Technologies
* Intel® Gaussian & Neural Accelerator: 3.0
* Intel® Thread Director: Yes
* Intel® Deep Learning Boost (Intel® DL Boost) on CPU: Yes
* Intel® Speed Shift Technology: Yes
* Intel® Turbo Boost Max Technology 3.0 ‡: Yes
* Intel® Turbo Boost Technology ‡: 2.0
* Intel® Hyper-Threading Technology ‡: Yes
* Intel® 64 ‡: Yes
* Instruction Set: 64-bit
* Instruction Set Extensions: Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
* Idle States: Yes
* Enhanced Intel SpeedStep® Technology: Yes
* Thermal Monitoring Technologies: Yes
* Intel® Volume Management Device (VMD): Yes
Security & Reliability
* Intel® Standard Manageability (ISM) ‡: Yes
* Intel® Control-Flow Enforcement Technology: Yes
* Intel® AES New Instructions: Yes
* Secure Key: Yes
* Intel® OS Guard: Yes
* Execute Disable Bit ‡: Yes
* Intel® Boot Guard: Yes
* Mode-based Execute Control (MBEC): Yes
* Intel® Virtualization Technology (VT-x) ‡: Yes
* Intel® Virtualization Technology for Directed I/O (VT-d) ‡: Yes
* Intel® VT-x with Extended Page Tables (EPT) ‡: Yes
