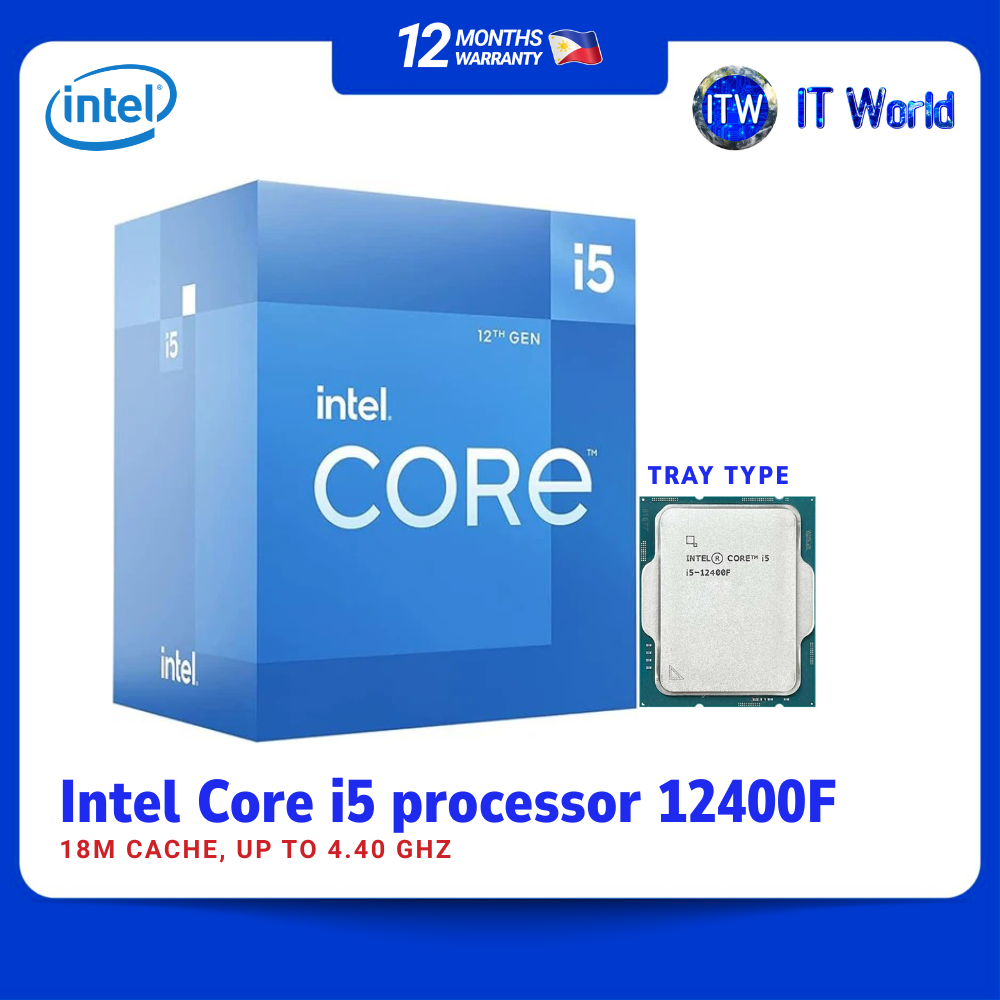

Product Name: Intel Core 12th Gen i5-12400F 6 Core 12 Thread 18M Cache Desktop Processor Tray Type | itw
*Key Features
- PCIe Gen5 Performance : Perfect Sync to Win
- Supports Intel® Core™ 14th/ 13th /12th processors
- EZ-Latch : PCIe 5.0x16 Slot with Quick Release Design
- PCIe UD Slot : SMD PCIe 5.0 Armor for enhanced graphics card support
- Unparalleled Performance : Hybrid 6+2+1 Phases VRM Solution
- Dual Channel DDR5 : 4*DIMMs XMP Memory Module Support
- Fast Networks : 2.5 GbE LAN
- Next Generation Storage : 2*PCIe 4.0 x4 M.2 Connectors
- Extended Connectivity : Rear USB-C® 10Gb/s, DP, HDMI, D-Sub
- Smart Fan 6 : Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus : Update BIOS Without Installing the CPU, Memory and Graphics Card
Specification
Processor Number: i5-12400F
Total Cores: 6
Performance-cores: 6
Efficient-cores: 0
Total Threads: 12
Max Turbo Frequency: 4.40 GHz
Performance-core Base Frequency: 2.50 GHz
Cache: 18 MB Intel® Smart Cache
L2 Cache: 7.5 MB
Processor Base Power: 65 W
Maximum Turbo Power: 117 W
Launch Date: Q1'22
Memory Types: Up to DDR5 4800 MT/s, Up to DDR4 3200 MT/s
Max Memory Size: 128 GB
Max Memory Bandwidth: 76.8 GB/s
GPU Name: Intel® UHD Graphics 730
Graphics Base Frequenc: 300 MHz
Graphics Max Dynamic Frequency: 1.45 GHz
Graphics Output: eDP 1.4b, DP 1.4a, HDMI 2.1
Max Resolution (HDMI): 4096 x 2160 @ 60Hz
Max Resolution (DP): 7680 x 4320 @ 60Hz
Max Resolution (eDP - Integrated Flat Panel): 5120 x 3200 @ 120Hz
DirectX Support: 12
OpenGL Support: 4.5
OpenCL Support: 3.0
# of Displays Supported: 4
PCI Express Revision: 5.0 and 4.0
Max PCI Express Lanes: 20
Socket Supported: FCLGA1700
Max CPU Configuration: 1
TJUNCTION: 100°C
Max Operating Temperature: 100°C
Advanced Technologies: Intel® Speed Shift Technology, Intel® Turbo Boost Technology 2.0, Intel® Hyper-Threading Technology, Intel® AES New Instructions, Intel® Virtualization Technology (VT-x), Intel® Virtualization Technology for Directed I/O (VT-d)
