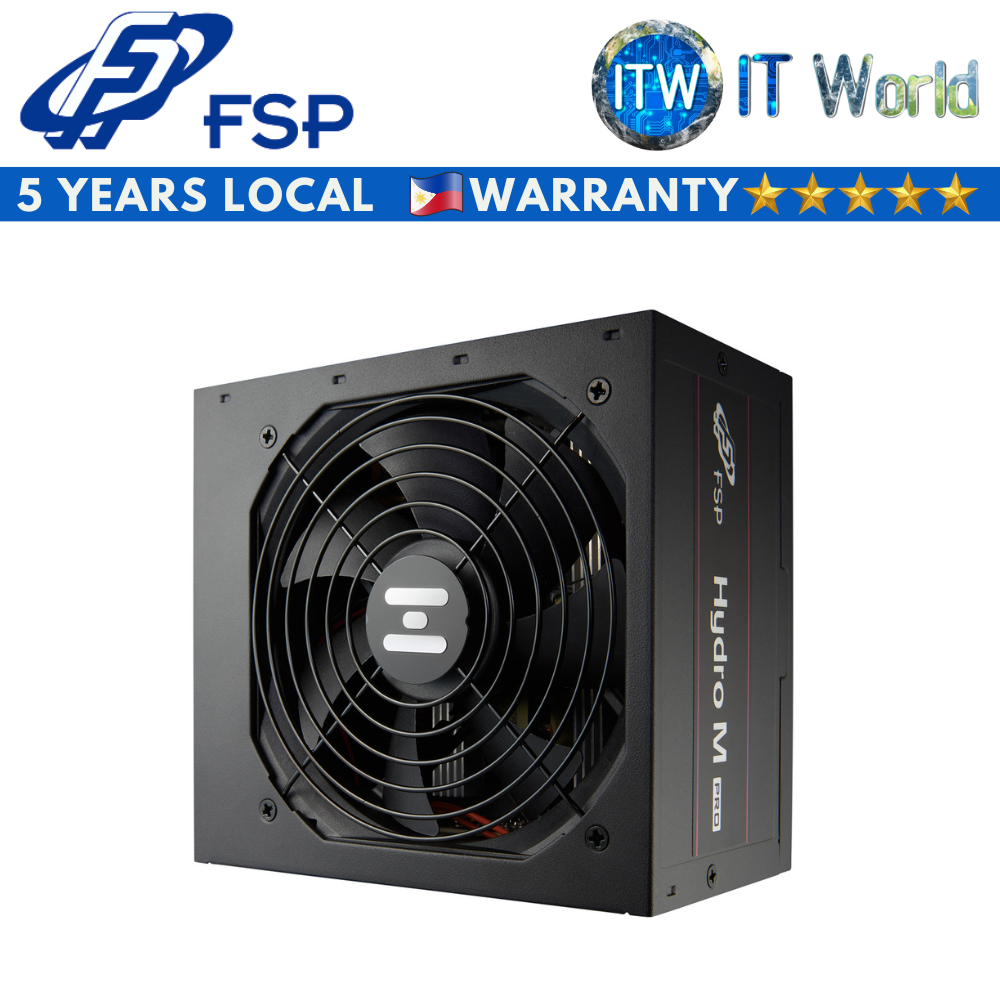

Product Name: FSP Hydro M Pro 800W 80+ 230V EU Bronze ATX Semi-Modular PSU
Key Feature
* Complies with ATX12 v2.52 & EPS12 V2.92
* Efficiency≧ 88% at typical load
* Active PFC ≧ 0.9
* Hold up time ≧ 17ms at 80% Load
* Semi-modular design with ribbon cables
* 450V, 105°C capacitors for a long product life cycle
* 120mm hydraulic bearing (HYB) fan
* +5V & 3.3V DC to DC module design
* +12V Single-Rail Design
* Complete protections : OCP/OVP/OPP/SCP
Specification
Rated Output Power: 800W
Form Factor: ATX
80 PLUS Certification: 80 PLUS® 230V EU Bronze
Input Voltage: 200-240V
Input Current: 6A
Input Frequency: 50-60Hz
PFC: Active PFC
Efficiency: ≥88% at typical load
Fan Type: HYB Fan, 120mm
Dimensions(L x W x H): 150 x 140 x 86mm
Protection: OCP, OVP, OPP, SCP
